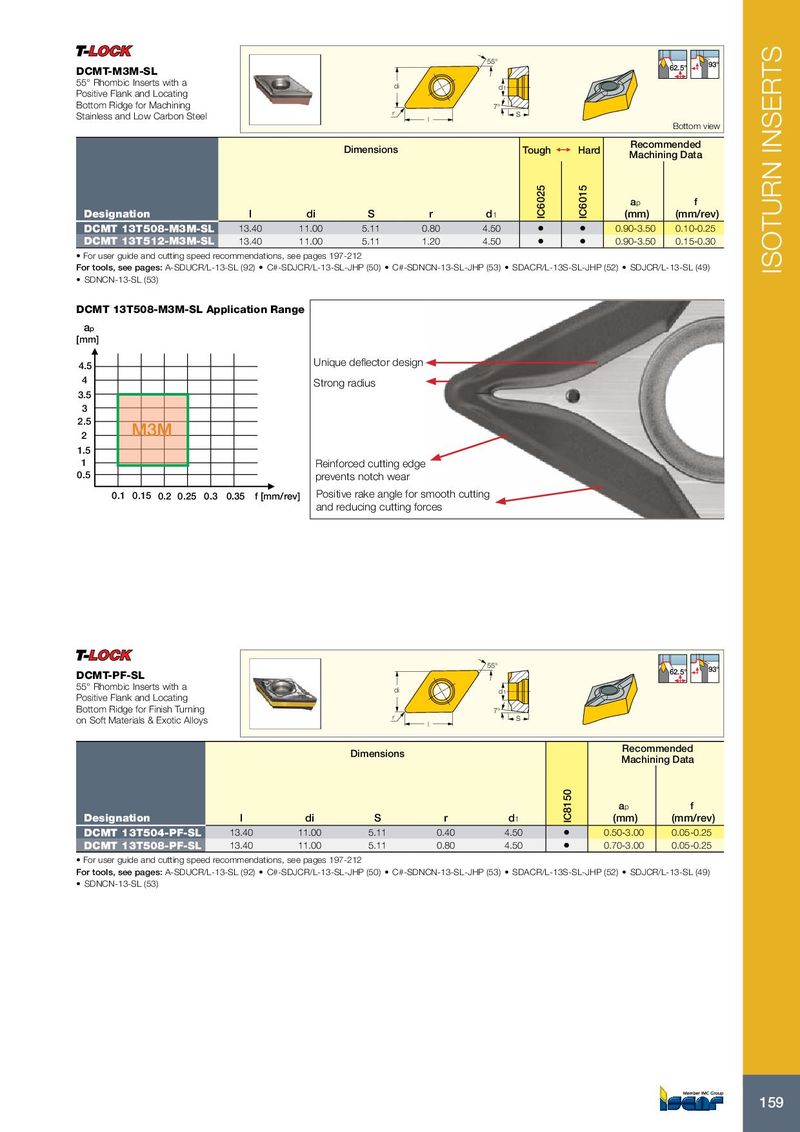

DCMT-M3M-SL
Positive Flank and Locating Bottom Ridge for Machining 7°
Stainless and Low Carbon Steel r S
l Dimensions Tough 1 Hard
62.5°
Bottom view Recommended Machining Data
ap f
| Designation | l | di | S | r | d 1 | (mm) | (mm/rev) | ||
| DCMT 13T508-M3M-SL | 13.40 | 11.00 | 5.11 | 0.80 | 4.50 | • | • | 0.90-3.50 | 0.10-0.25 |
| DCMT 13T512-M3M-SL | 13.40 | 11.00 | 5.11 | 1.20 | 4.50 | • | • | 0.90-3.50 | 0.15-0.30 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-SDUCR/L-13-SL (92) C#-SDJCR/L-13-SL-JHP (50) C#-SDNCN-13-SL-JHP (53) SDACR/L-13S-SL-JHP (52) SDJCR/L-13-SL (49)
- SDNCN-13-SL (53)
DCMT 13T508-M3M-SL Application Range
ap
[mm]
Unique deflector design
4.5 4 Strong radius 3.5 3 2.5 M3M 2 1.5 1 Reinforced cutting edge 0.5 prevents notch wear 0.1 0.15 0.2 0.25 0.3 0.35 f [mm/rev] Positive rake angle for smooth cutting
and reducing cutting forces
55° 93° DCMT-PF-SL 62.5° 55° Rhombic Inserts with a di d1 Positive Flank and Locating Bottom Ridge for Finish Turning 7°
on Soft Materials & Exotic Alloys r S
l Recommended Dimensions Machining Data
ap f
| Designation | l | di | S | r | d 1 | (mm) | (mm/rev) | |
| DCMT 13T504-PF-SL | 13.40 | 11.00 | 5.11 | 0.40 | 4.50 | • | 0.50-3.00 | 0.05-0.25 |
| DCMT 13T508-PF-SL | 13.40 | 11.00 | 5.11 | 0.80 | 4.50 | • | 0.70-3.00 | 0.05-0.25 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-SDUCR/L-13-SL (92) C#-SDJCR/L-13-SL-JHP (50) C#-SDNCN-13-SL-JHP (53) SDACR/L-13S-SL-JHP (52) SDJCR/L-13-SL (49)
- SDNCN-13-SL (53)
