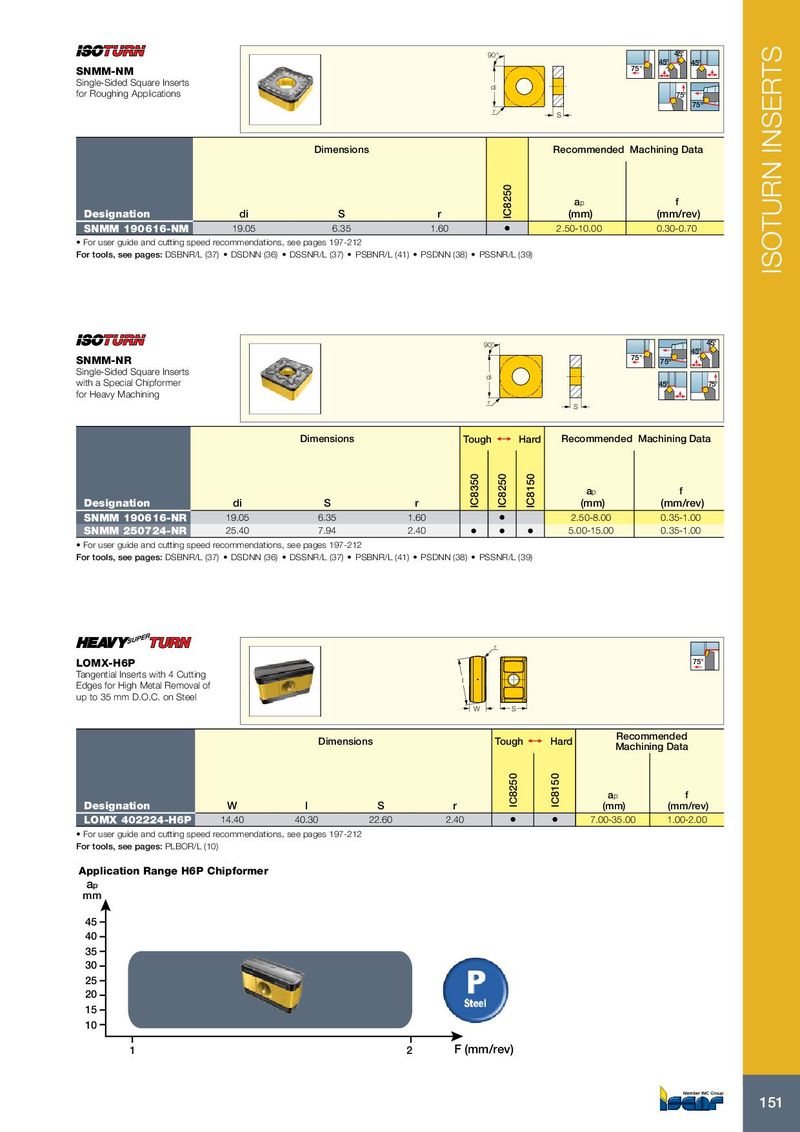

Каталог Iscar токарный инструмент 2017 - страница 155

90° 45° 45° 45° 75° SNMM-NM Single-Sided Square Inserts di for Roughing Applications 75° 75º r S Dimensions Recommended Machining Data a p f Designation di S r IC8250 (mm) (mm/rev) SNMM 190616-NM 19.05 6.35 1.60 • 2.50-10.00 0.30-0.70 • For user guide and cutting speed recommendations, see pages 197-212 For tools, see pages: DSBNR/L (37) • DSDNN (36) • DSSNR/L (37) • PSBNR/L (41) • PSDNN (38) • PSSNR/L (39) ISOTURN INSERTS 90° 45° 45° 75° SNMM-NR 75º Single-Sided Square Inserts di with a Special Chipformer 45° 75° for Heavy Machining r S Dimensions Tough 1  Hard Recommended Machining Data a p f Designation di S r IC8350 IC8250 IC8150 (mm) (mm/rev) SNMM 190616-NR 19.05 6.35 1.60 • 2.50-8.00 0.35-1.00 SNMM 250724-NR 25.40 7.94 2.40 • • • 5.00-15.00 0.35-1.00 • For user guide and cutting speed recommendations, see pages 197-212 For tools, see pages: DSBNR/L (37) • DSDNN (36) • DSSNR/L (37) • PSBNR/L (41) • PSDNN (38) • PSSNR/L (39) r LOMX-H6P 75° Tangential Inserts with 4 Cutting I Edges for High Metal Removal of up to 35 mm D.O.C. on Steel W S Recommended Dimensions Tough 1  Hard Machining Data a p f Designation W l S r IC8250 IC8150 (mm) (mm/rev) LOMX 402224-H6P 14.40 40.30 22.60 2.40 • • 7.00-35.00 1.00-2.00 • For user guide and cutting speed recommendations, see pages 197-212 For tools, see pages: PLBOR/L (10) Application Range H6P Chipformer ap mm 45 40 35 30 25 20 15 10 1 2 F (mm/rev) 151
