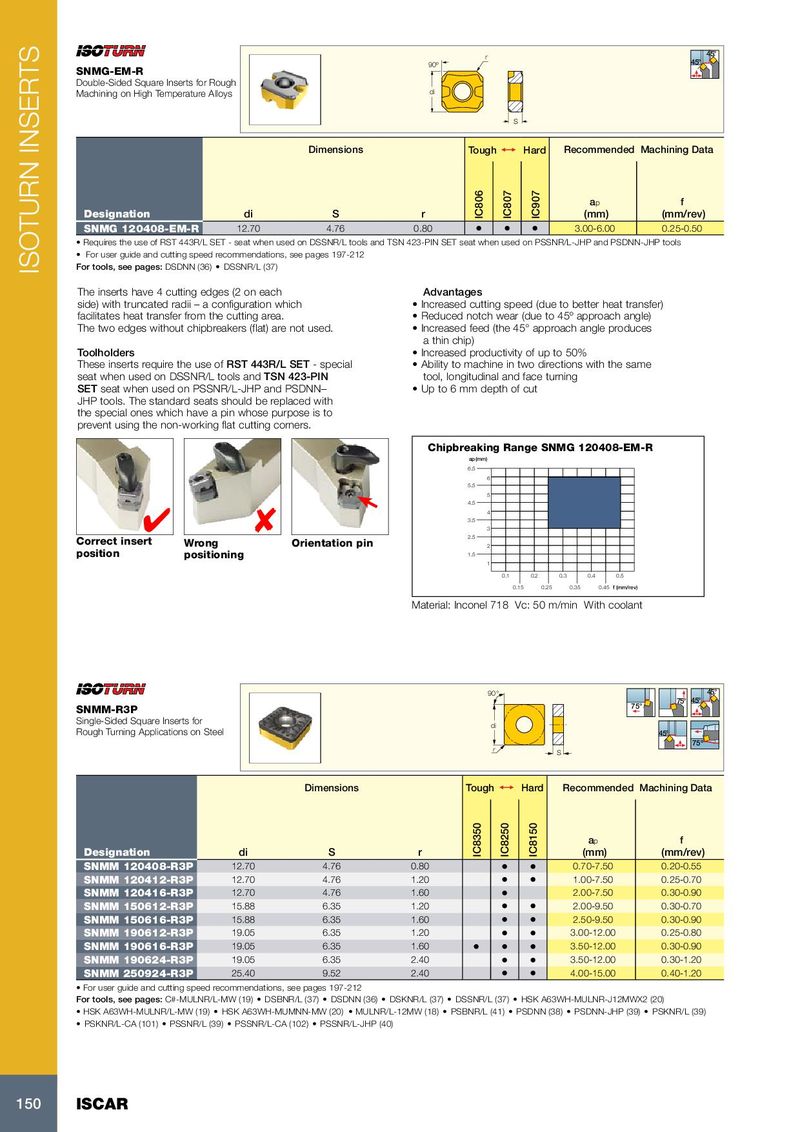

SNMG-EM-R
Double-Sided Square Inserts for Rough Machining on High Temperature Alloys
di
S
Dimensions Tough 1 Hard Recommended Machining Data
a p f
| Designation | di | S | r | (mm) | (mm/rev) | |||
| SNMG 120408-EM-R | 12.70 | 4.76 | 0.80 | • | • | • | 3.00-6.00 | 0.25-0.50 |
- Requires the use of RST 443R/L SET - seat when used on DSSNR/L tools and TSN 423-PIN SET seat when used on PSSNR/L-JHP and PSDNN-JHP tools
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: DSDNN (36) DSSNR/L (37)
| The inserts have 4 cutting edges (2 on each | Advantages |
| side) with truncated radii – a configuration which | • Increased cutting speed (due to better heat transfer) |
| facilitates heat transfer from the cutting area. | • Reduced notch wear (due to 45º approach angle) |
| The two edges without chipbreakers (flat) are not used. | • Increased feed (the 45° approach angle produces |
| a thin chip) | |
| Toolholders | • Increased productivity of up to 50% |
| These inserts require the use of RST 443R/L SET - special | • Ability to machine in two directions with the same |
| seat when used on DSSNR/L tools and TSN 423-PIN | tool, longitudinal and face turning |
| SET seat when used on PSSNR/L-JHP and PSDNN– | • Up to 6 mm depth of cut |
JHP tools. The standard seats should be replaced with the special ones which have a pin whose purpose is to prevent using the non-working flat cutting corners. Chipbreaking Range SNMG 120408-EM-R
ap(mm) 6.5 6 5.5 5 4.5 4 3.5 3
| Correct insert | Wrong | Orientation pin | 2.5 | |
| position | 2 | |||
| positioning | 1.5 | |||
| 1 |
| 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | |
| 0.15 | 0.25 | 0.35 | 0.45 f (mm/rev) |
Material: Inconel 718 Vc: 50 m/min With coolant
| SNMM-R3P Single-Sided Square Inserts for Rough Turning Applications on St | eel | 90° di r | S 75 | ° 75° 45° 45° 45° 75º | |||
| Di | mensions | Tough1 | Hard | Recommended | Machining Data | ||
| Designation | di | S | r | IC8350 IC8250 | IC8150 | ap (mm) | f (mm/rev) |
| SNMM 120408-R3P | 12.70 | 4.76 | 0.80 | • | • | 0.70-7.50 | 0.20-0.55 |
| SNMM 120412-R3P | 12.70 | 4.76 | 1.20 | • | • | 1.00-7.50 | 0.25-0.70 |
| SNMM 120416-R3P | 12.70 | 4.76 | 1.60 | • | 2.00-7.50 | 0.30-0.90 | |
| SNMM 150612-R3P | 15.88 | 6.35 | 1.20 | • | • | 2.00-9.50 | 0.30-0.70 |
| SNMM 150616-R3P | 15.88 | 6.35 | 1.60 | • | • | 2.50-9.50 | 0.30-0.90 |
| SNMM 190612-R3P | 19.05 | 6.35 | 1.20 | • | • | 3.00-12.00 | 0.25-0.80 |
| SNMM 190616-R3P | 19.05 | 6.35 | 1.60 | • • | • | 3.50-12.00 | 0.30-0.90 |
| SNMM 190624-R3P | 19.05 | 6.35 | 2.40 | • | • | 3.50-12.00 | 0.30-1.20 |
| SNMM 250924-R3P | 25.40 | 9.52 | 2.40 | • | • | 4.00-15.00 | 0.40-1.20 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: C#-MULNR/L-MW (19) DSBNR/L (37) DSDNN (36) DSKNR/L (37) DSSNR/L (37) HSK A63WH-MULNR-J12MWX2 (20)
- HSK A63WH-MULNR/L-MW (19)
- HSK A63WH-MUMNN-MW (20)
- MULNR/L-12MW (18)
- PSBNR/L (41)
- PSDNN (38)
- PSDNN-JHP (39)
- PSKNR/L (39)
- PSKNR/L-CA (101)
- PSSNR/L (39)
- PSSNR/L-CA (102)
- PSSNR/L-JHP (40)
