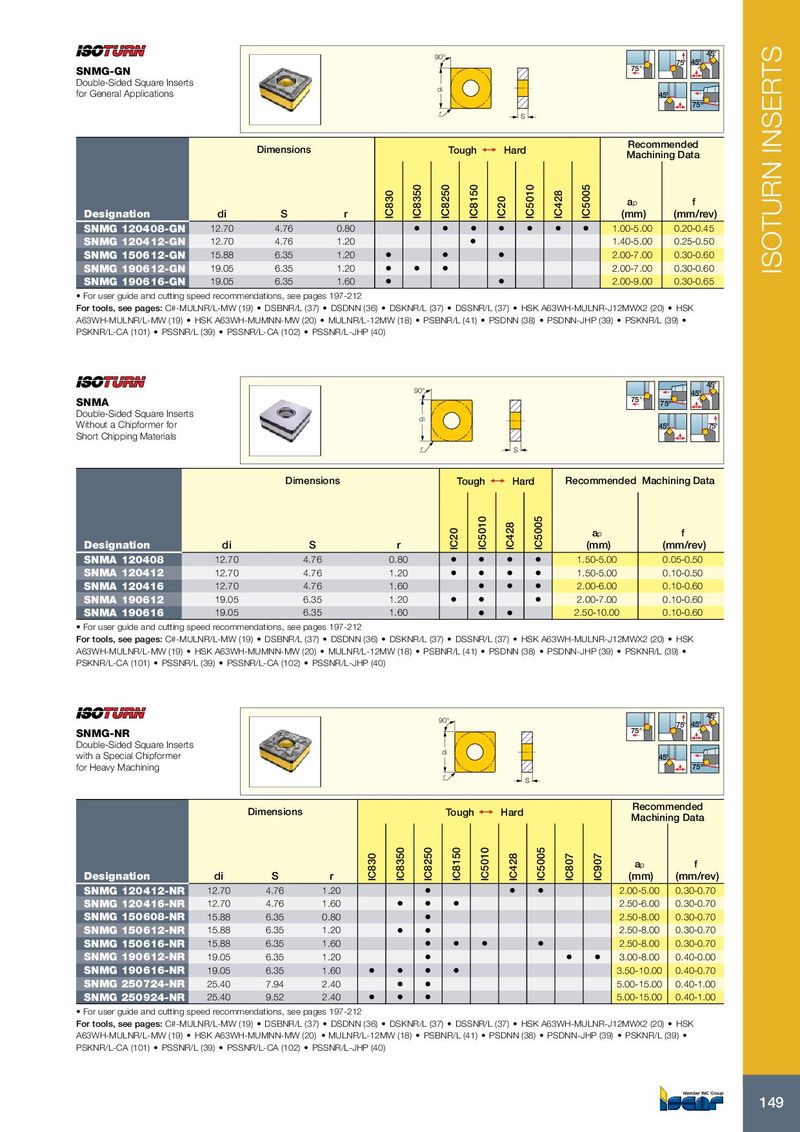

Каталог Iscar токарный инструмент 2017 - страница 153

ISOTURN INSERTS
90° 45°
75° 45°
75°
SNMG-GN
Double-Sided Square Inserts
di
for General Applications 45°
75º
r S

Recommended
Dimensions Tough 1 Hard
Machining Data


IC8350
IC8250
IC8150


IC5010


IC5005
IC830


IC428
ap f


IC20
Designation di S r (mm) (mm/rev)
SNMG 120408-GN 12.70 4.76 0.80 • • • • • • • 1.00-5.00 0.20-0.45
SNMG 120412-GN 12.70 4.76 1.20 • 1.40-5.00 0.25-0.50
SNMG 150612-GN 15.88 6.35 1.20 • • • 2.00-7.00 0.30-0.60
SNMG 190612-GN 19.05 6.35 1.20 • • • 2.00-7.00 0.30-0.60
SNMG 190616-GN 19.05 6.35 1.60 • • 2.00-9.00 0.30-0.65
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: C#-MULNR/L-MW (19) • DSBNR/L (37) • DSDNN (36) • DSKNR/L (37) • DSSNR/L (37) • HSK A63WH-MULNR-J12MWX2 (20) • HSK
A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • PSBNR/L (41) • PSDNN (38) • PSDNN-JHP (39) • PSKNR/L (39) •
PSKNR/L-CA (101) • PSSNR/L (39) • PSSNR/L-CA (102) • PSSNR/L-JHP (40)


45°
90° 45°
75°
SNMA 75º
Double-Sided Square Inserts di
Without a Chipformer for 45° 75°
Short Chipping Materials
r S

Dimensions Tough 1 IC5010 Hard Recommended Machining Data


IC5005
IC428
ap f
IC20


Designation di S r (mm) (mm/rev)
SNMA 120408 12.70 4.76 0.80 • • • • 1.50-5.00 0.05-0.50
SNMA 120412 12.70 4.76 1.20 • • • • 1.50-5.00 0.10-0.50
SNMA 120416 12.70 4.76 1.60 • • • 2.00-6.00 0.10-0.60
SNMA 190612 19.05 6.35 1.20 • • • 2.00-7.00 0.10-0.60
SNMA 190616 19.05 6.35 1.60 • • 2.50-10.00 0.10-0.60
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: C#-MULNR/L-MW (19) • DSBNR/L (37) • DSDNN (36) • DSKNR/L (37) • DSSNR/L (37) • HSK A63WH-MULNR-J12MWX2 (20) • HSK
A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • PSBNR/L (41) • PSDNN (38) • PSDNN-JHP (39) • PSKNR/L (39) •
PSKNR/L-CA (101) • PSSNR/L (39) • PSSNR/L-CA (102) • PSSNR/L-JHP (40)


45°
90°
75° 45°
75°
SNMG-NR
Double-Sided Square Inserts
di
with a Special Chipformer 45°
for Heavy Machining 75º
r
S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC8350
IC8250
IC8150
IC5010


IC5005
IC830


IC428


IC807
IC907


ap f
Designation di S r (mm) (mm/rev)
SNMG 120412-NR 12.70 4.76 1.20 • • • 2.00-5.00 0.30-0.70
SNMG 120416-NR 12.70 4.76 1.60 • • • 2.50-6.00 0.30-0.70
SNMG 150608-NR 15.88 6.35 0.80 • 2.50-8.00 0.30-0.70
SNMG 150612-NR 15.88 6.35 1.20 • • 2.50-8.00 0.30-0.70
SNMG 150616-NR 15.88 6.35 1.60 • • • • 2.50-8.00 0.30-0.70
SNMG 190612-NR 19.05 6.35 1.20 • • • 3.00-8.00 0.40-0.00
SNMG 190616-NR 19.05 6.35 1.60 • • • • 3.50-10.00 0.40-0.70
SNMG 250724-NR 25.40 7.94 2.40 • • 5.00-15.00 0.40-1.00
SNMG 250924-NR 25.40 9.52 2.40 • • • 5.00-15.00 0.40-1.00
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: C#-MULNR/L-MW (19) • DSBNR/L (37) • DSDNN (36) • DSKNR/L (37) • DSSNR/L (37) • HSK A63WH-MULNR-J12MWX2 (20) • HSK
A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • PSBNR/L (41) • PSDNN (38) • PSDNN-JHP (39) • PSKNR/L (39) •
PSKNR/L-CA (101) • PSSNR/L (39) • PSSNR/L-CA (102) • PSSNR/L-JHP (40)


149
