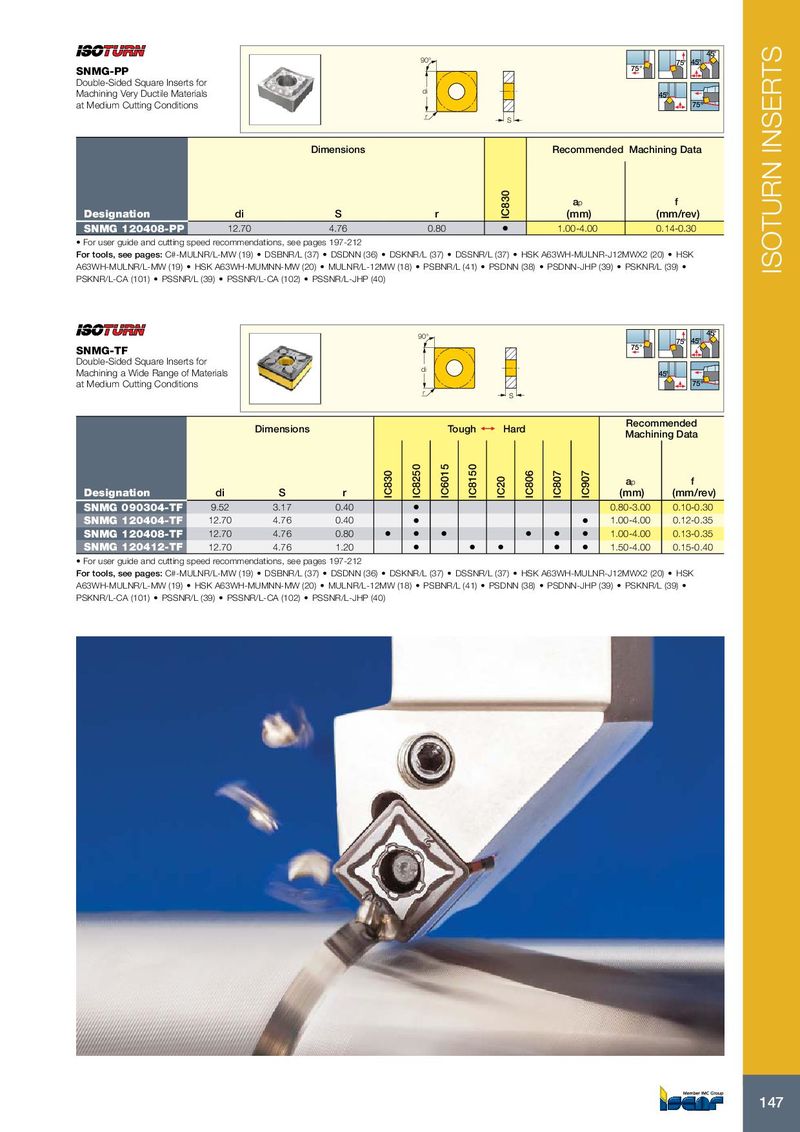

45° 90° 75° 45° 75° SNMG-PP Double-Sided Square Inserts for Machining Very Ductile Materials di 45° at Medium Cutting Conditions 75º r S Dimensions Recommended Machining Data a p f Designation di S r IC830 (mm) (mm/rev) SNMG 120408-PP 12.70 4.76 0.80 • 1.00-4.00 0.14-0.30 • For user guide and cutting speed recommendations, see pages 197-212 For tools, see pages: C#-MULNR/L-MW (19) • DSBNR/L (37) • DSDNN (36) • DSKNR/L (37) • DSSNR/L (37) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • PSBNR/L (41) • PSDNN (38) • PSDNN-JHP (39) • PSKNR/L (39) • ISOTURN INSERTS PSKNR/L-CA (101) • PSSNR/L (39) • PSSNR/L-CA (102) • PSSNR/L-JHP (40) 90° 45° 75° 45° 75° SNMG-TF Double-Sided Square Inserts for di Machining a Wide Range of Materials 45° at Medium Cutting Conditions 75º r S Recommended Dimensions Tough 1  Hard Machining Data a p f Designation di S r IC830 IC8250 IC6015 IC8150 IC20 IC806 IC807 IC907 (mm) (mm/rev) SNMG 090304-TF 9.52 3.17 0.40 • 0.80-3.00 0.10-0.30 SNMG 120404-TF 12.70 4.76 0.40 • • 1.00-4.00 0.12-0.35 SNMG 120408-TF 12.70 4.76 0.80 • • • • • • 1.00-4.00 0.13-0.35 SNMG 120412-TF 12.70 4.76 1.20 • • • • • 1.50-4.00 0.15-0.40 • For user guide and cutting speed recommendations, see pages 197-212 For tools, see pages: C#-MULNR/L-MW (19) • DSBNR/L (37) • DSDNN (36) • DSKNR/L (37) • DSSNR/L (37) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • PSBNR/L (41) • PSDNN (38) • PSDNN-JHP (39) • PSKNR/L (39) • PSKNR/L-CA (101) • PSSNR/L (39) • PSSNR/L-CA (102) • PSSNR/L-JHP (40) 147
