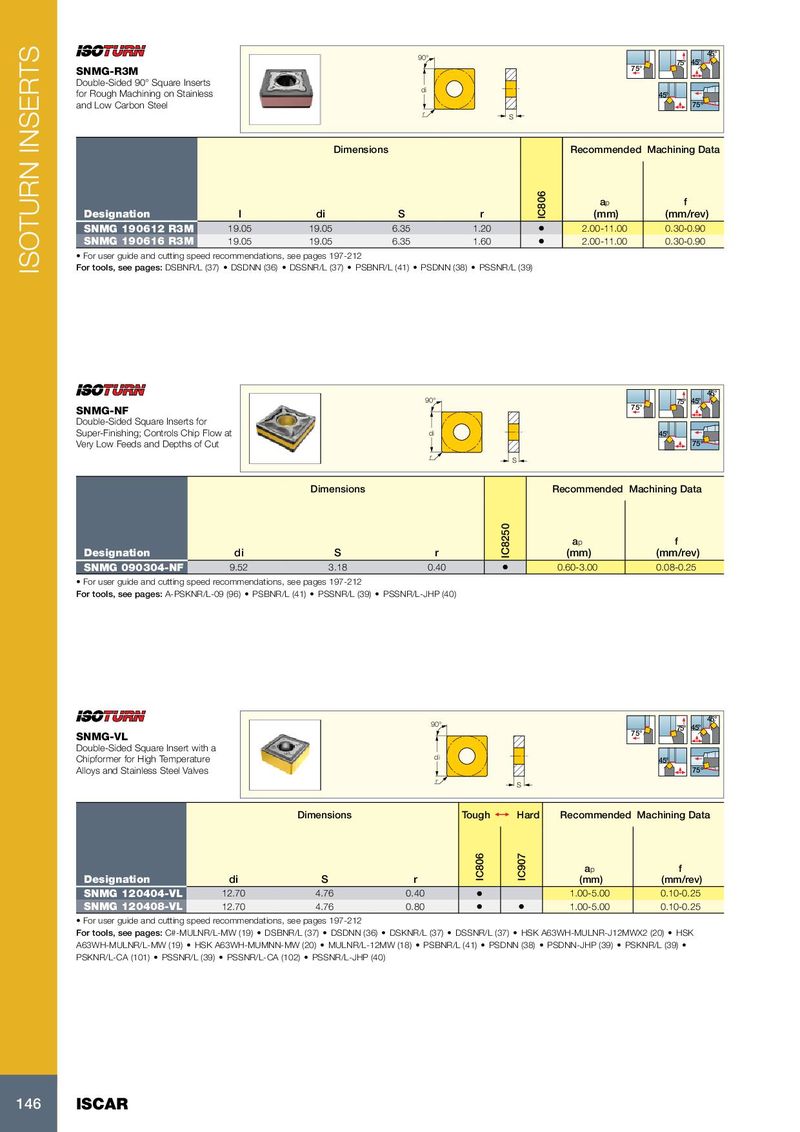

90° 45° 75° 45° 75° SNMG-R3M Double-Sided 90° Square Inserts di for Rough Machining on Stainless 45° and Low Carbon Steel 75º r S Dimensions Recommended Machining Data a p f Designation l di S r IC806 (mm) (mm/rev) SNMG 190612 R3M 19.05 19.05 6.35 1.20 • 2.00-11.00 0.30-0.90 SNMG 190616 R3M 19.05 19.05 6.35 1.60 • 2.00-11.00 0.30-0.90 • For user guide and cutting speed recommendations, see pages 197-212 ISOTURN INSERTS For tools, see pages: DSBNR/L (37) • DSDNN (36) • DSSNR/L (37) • PSBNR/L (41) • PSDNN (38) • PSSNR/L (39) 45° 90° 75° 45° 75° SNMG-NF Double-Sided Square Inserts for Super-Finishing; Controls Chip Flow at di 45° Very Low Feeds and Depths of Cut 75º r S Dimensions Recommended Machining Data a p f Designation di S r IC8250 (mm) (mm/rev) SNMG 090304-NF 9.52 3.18 0.40 • 0.60-3.00 0.08-0.25 • For user guide and cutting speed recommendations, see pages 197-212 For tools, see pages: A-PSKNR/L-09 (96) • PSBNR/L (41) • PSSNR/L (39) • PSSNR/L-JHP (40) 45° 90° 75° 45° 75° SNMG-VL Double-Sided Square Insert with a Chipformer for High Temperature di 45° Alloys and Stainless Steel Valves 75º r S Dimensions Tough 1  Hard Recommended Machining Data a p f Designation di S r IC806 IC907 (mm) (mm/rev) SNMG 120404-VL 12.70 4.76 0.40 • 1.00-5.00 0.10-0.25 SNMG 120408-VL 12.70 4.76 0.80 • • 1.00-5.00 0.10-0.25 • For user guide and cutting speed recommendations, see pages 197-212 For tools, see pages: C#-MULNR/L-MW (19) • DSBNR/L (37) • DSDNN (36) • DSKNR/L (37) • DSSNR/L (37) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • PSBNR/L (41) • PSDNN (38) • PSDNN-JHP (39) • PSKNR/L (39) • PSKNR/L-CA (101) • PSSNR/L (39) • PSSNR/L-CA (102) • PSSNR/L-JHP (40) 146 ISCAR
