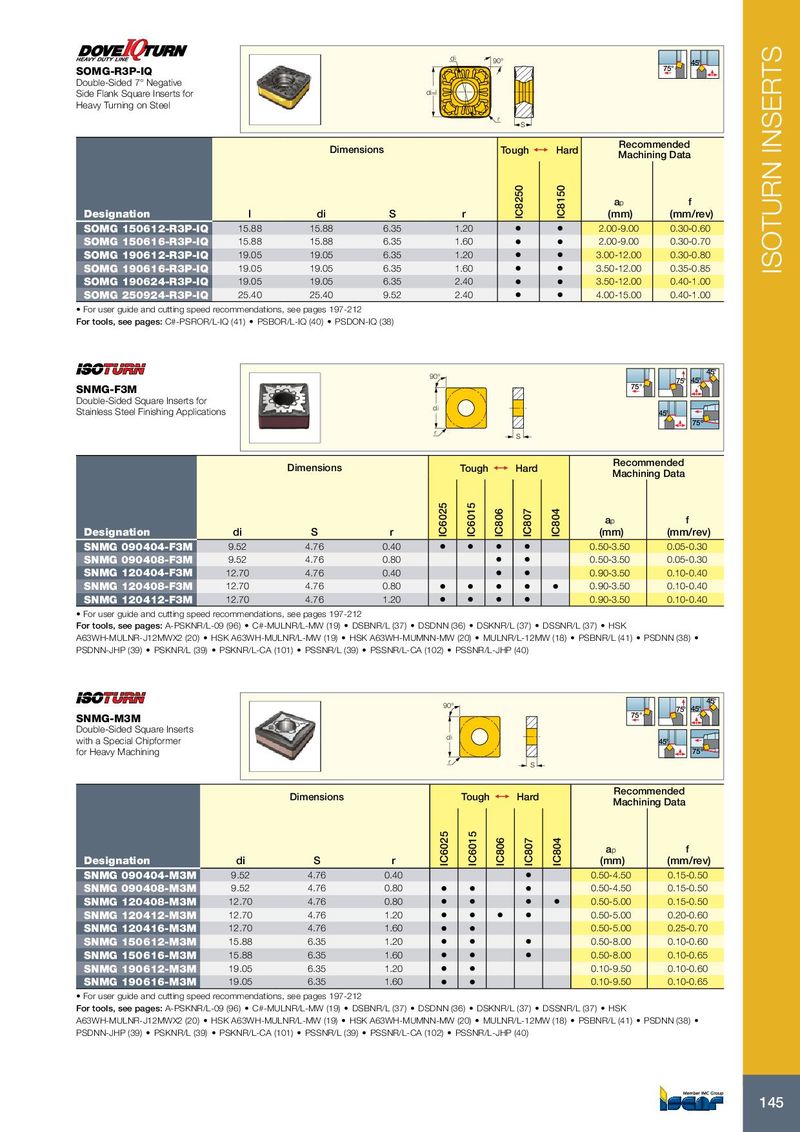

ISOTURN INSERTS
di 90° 45°
75°
SOMG-R3P-IQ
Double-Sided 7° Negative
Side Flank Square Inserts for di=l
Heavy Turning on Steel
r
S
Recommended
Dimensions Tough 1 Hard
Machining Data


IC8250

IC8150
ap f
Designation l di S r (mm) (mm/rev)
SOMG 150612-R3P-IQ 15.88 15.88 6.35 1.20 • • 2.00-9.00 0.30-0.60
SOMG 150616-R3P-IQ 15.88 15.88 6.35 1.60 • • 2.00-9.00 0.30-0.70
SOMG 190612-R3P-IQ 19.05 19.05 6.35 1.20 • • 3.00-12.00 0.30-0.80
SOMG 190616-R3P-IQ 19.05 19.05 6.35 1.60 • • 3.50-12.00 0.35-0.85
SOMG 190624-R3P-IQ 19.05 19.05 6.35 2.40 • • 3.50-12.00 0.40-1.00
SOMG 250924-R3P-IQ 25.40 25.40 9.52 2.40 • • 4.00-15.00 0.40-1.00
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: C#-PSROR/L-IQ (41) • PSBOR/L-IQ (40) • PSDON-IQ (38)


45°
90°
75° 45°
75°
SNMG-F3M
Double-Sided Square Inserts for
di
Stainless Steel Finishing Applications 45°
75º
r
S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC6015
IC806
IC807
IC804
ap f
Designation di S r (mm) (mm/rev)
SNMG 090404-F3M 9.52 4.76 0.40 • • • • 0.50-3.50 0.05-0.30
SNMG 090408-F3M 9.52 4.76 0.80 • • 0.50-3.50 0.05-0.30
SNMG 120404-F3M 12.70 4.76 0.40 • • 0.90-3.50 0.10-0.40
SNMG 120408-F3M 12.70 4.76 0.80 • • • • • 0.90-3.50 0.10-0.40
SNMG 120412-F3M 12.70 4.76 1.20 • • • • 0.90-3.50 0.10-0.40
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PSKNR/L-09 (96) • C#-MULNR/L-MW (19) • DSBNR/L (37) • DSDNN (36) • DSKNR/L (37) • DSSNR/L (37) • HSK
A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • PSBNR/L (41) • PSDNN (38) •
PSDNN-JHP (39) • PSKNR/L (39) • PSKNR/L-CA (101) • PSSNR/L (39) • PSSNR/L-CA (102) • PSSNR/L-JHP (40)


45°
90°
75° 45°
75°
SNMG-M3M
Double-Sided Square Inserts
di
with a Special Chipformer 45°
for Heavy Machining 75º
r
S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC6015
IC806
IC807
IC804


ap f
Designation di S r (mm) (mm/rev)
SNMG 090404-M3M 9.52 4.76 0.40 • 0.50-4.50 0.15-0.50
SNMG 090408-M3M 9.52 4.76 0.80 • • • 0.50-4.50 0.15-0.50
SNMG 120408-M3M 12.70 4.76 0.80 • • • • 0.50-5.00 0.15-0.50
SNMG 120412-M3M 12.70 4.76 1.20 • • • • 0.50-5.00 0.20-0.60
SNMG 120416-M3M 12.70 4.76 1.60 • • 0.50-5.00 0.25-0.70
SNMG 150612-M3M 15.88 6.35 1.20 • • • 0.50-8.00 0.10-0.60
SNMG 150616-M3M 15.88 6.35 1.60 • • • 0.50-8.00 0.10-0.65
SNMG 190612-M3M 19.05 6.35 1.20 • • 0.10-9.50 0.10-0.60
SNMG 190616-M3M 19.05 6.35 1.60 • • 0.10-9.50 0.10-0.65
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PSKNR/L-09 (96) • C#-MULNR/L-MW (19) • DSBNR/L (37) • DSDNN (36) • DSKNR/L (37) • DSSNR/L (37) • HSK
A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • PSBNR/L (41) • PSDNN (38) •
PSDNN-JHP (39) • PSKNR/L (39) • PSKNR/L-CA (101) • PSSNR/L (39) • PSSNR/L-CA (102) • PSSNR/L-JHP (40)
