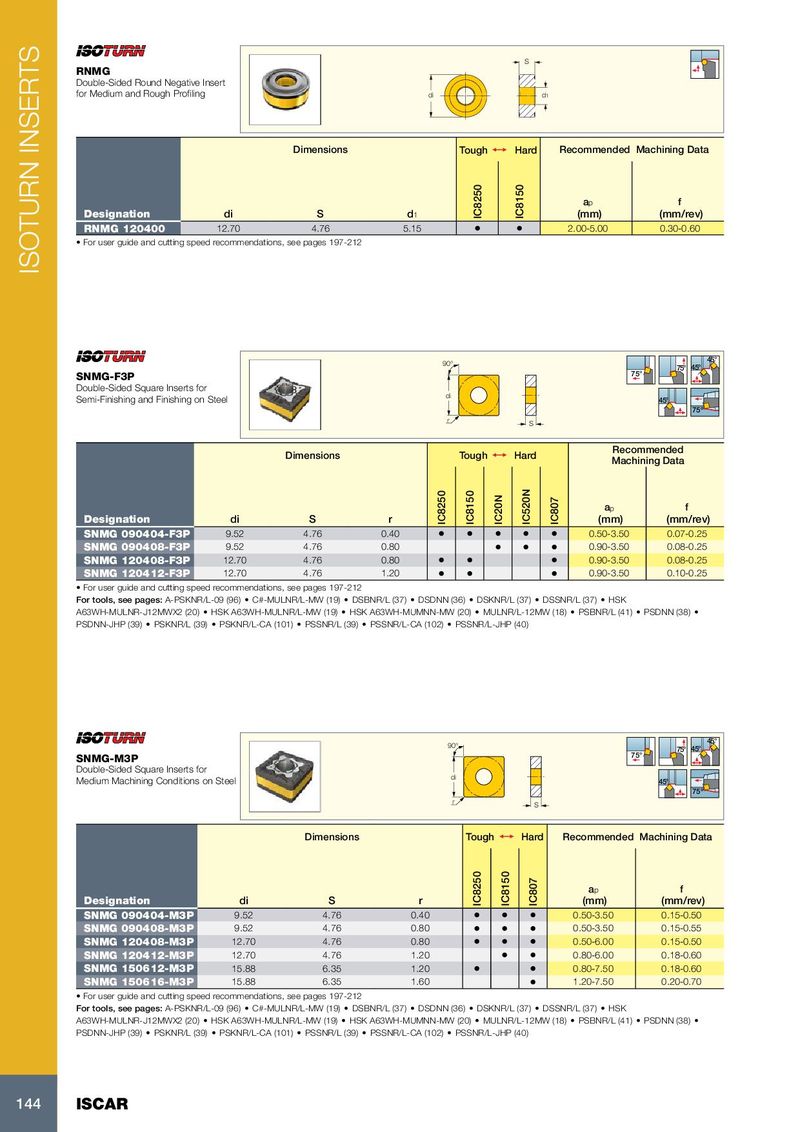

ISOTURN INSERTS
S
RNMG
Double-Sided Round Negative Insert
for Medium and Rough Profiling di d1


Dimensions Tough 1 Hard Recommended Machining Data


IC8250

IC8150
ap f
Designation di S d1 (mm) (mm/rev)
RNMG 120400 12.70 4.76 5.15 • • 2.00-5.00 0.30-0.60
• For user guide and cutting speed recommendations, see pages 197-212


45°
90°
75° 45°
75°
SNMG-F3P
Double-Sided Square Inserts for
di
Semi-Finishing and Finishing on Steel 45°
75º
r
S

Recommended
Dimensions Tough 1 Hard
Machining Data


IC520N
IC8250
IC8150
IC20N


IC807
ap f
Designation di S r (mm) (mm/rev)
SNMG 090404-F3P 9.52 4.76 0.40 • • • • • 0.50-3.50 0.07-0.25
SNMG 090408-F3P 9.52 4.76 0.80 • • • 0.90-3.50 0.08-0.25
SNMG 120408-F3P 12.70 4.76 0.80 • • • 0.90-3.50 0.08-0.25
SNMG 120412-F3P 12.70 4.76 1.20 • • • 0.90-3.50 0.10-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PSKNR/L-09 (96) • C#-MULNR/L-MW (19) • DSBNR/L (37) • DSDNN (36) • DSKNR/L (37) • DSSNR/L (37) • HSK
A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • PSBNR/L (41) • PSDNN (38) •
PSDNN-JHP (39) • PSKNR/L (39) • PSKNR/L-CA (101) • PSSNR/L (39) • PSSNR/L-CA (102) • PSSNR/L-JHP (40)


45°
90°
75° 45°
75°
SNMG-M3P
Double-Sided Square Inserts for
di
Medium Machining Conditions on Steel 45°
75º
r
S

Dimensions Tough 1 Hard Recommended Machining Data
IC8250
IC8150
IC807


ap f
Designation di S r (mm) (mm/rev)
SNMG 090404-M3P 9.52 4.76 0.40 • • • 0.50-3.50 0.15-0.50
SNMG 090408-M3P 9.52 4.76 0.80 • • • 0.50-3.50 0.15-0.55
SNMG 120408-M3P 12.70 4.76 0.80 • • • 0.50-6.00 0.15-0.50
SNMG 120412-M3P 12.70 4.76 1.20 • • 0.80-6.00 0.18-0.60
SNMG 150612-M3P 15.88 6.35 1.20 • • 0.80-7.50 0.18-0.60
SNMG 150616-M3P 15.88 6.35 1.60 • 1.20-7.50 0.20-0.70
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PSKNR/L-09 (96) • C#-MULNR/L-MW (19) • DSBNR/L (37) • DSDNN (36) • DSKNR/L (37) • DSSNR/L (37) • HSK
A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • PSBNR/L (41) • PSDNN (38) •
PSDNN-JHP (39) • PSKNR/L (39) • PSKNR/L-CA (101) • PSSNR/L (39) • PSSNR/L-CA (102) • PSSNR/L-JHP (40)


144 ISCAR
