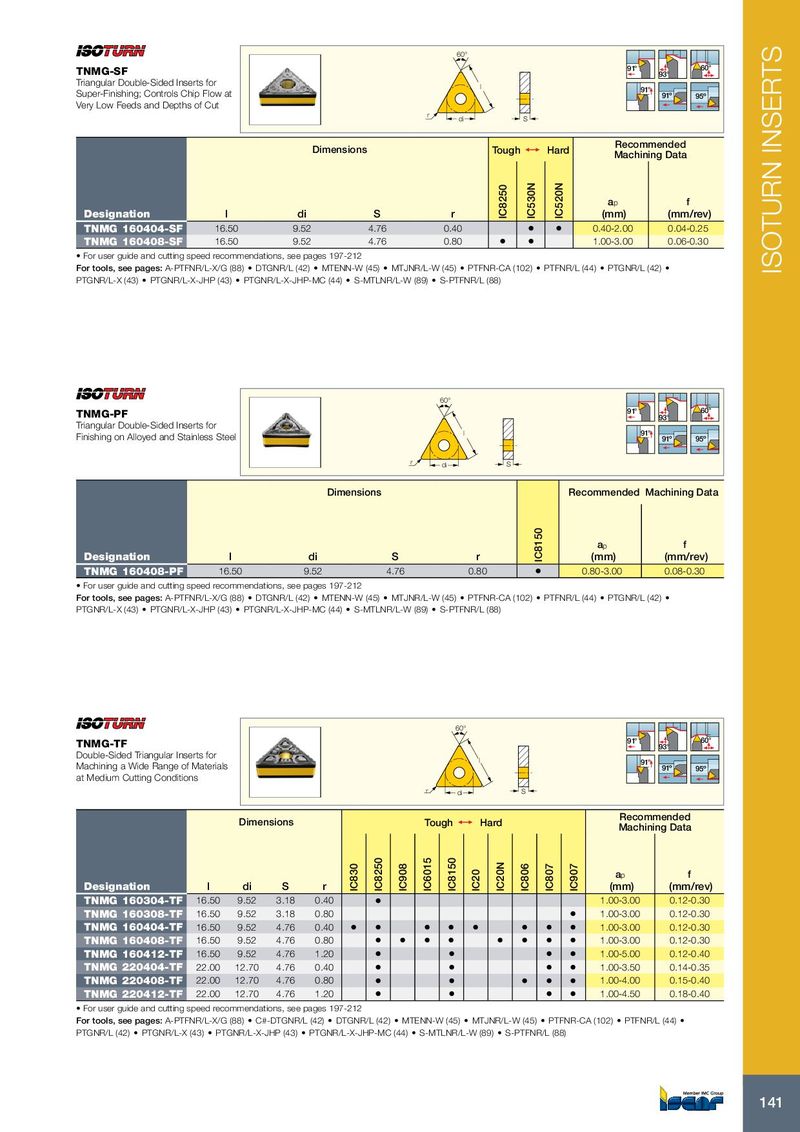

Каталог Iscar токарный инструмент 2017 - страница 145
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
| TNMG-SF | 91° | 60° | |
| Triangular Double-Sided Inserts for | |||
| Super-Finishing; Controls Chip Flow at | 91º | 95º | |
| Very Low Feeds and Depths of Cut |
r di S
Recommended Dimensions Tough 1 Hard Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | |||
| TNMG 160404-SF | 16.50 | 9.52 | 4.76 | 0.40 | • | • | 0.40-2.00 | 0.04-0.25 | |
| TNMG 160408-SF | 16.50 | 9.52 | 4.76 | 0.80 | • | • | 1.00-3.00 | 0.06-0.30 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) DTGNR/L (42) MTENN-W (45) MTJNR/L-W (45) PTFNR-CA (102) PTFNR/L (44) PTGNR/L (42) PTGNR/L-X (43) PTGNR/L-X-JHP (43) PTGNR/L-X-JHP-MC (44) S-MTLNR/L-W (89) S-PTFNR/L (88)
60°
| TNMG-PF | 91° | 60° | |
| 93° | |||
| Triangular Double-Sided Inserts for |
| Finishing on Alloyed and Stainless Steel | l | 91° | ||
| 91º | 95º |
r d S
i Dimensions Recommended Machining Data
a p f
| Designation | l | di | S | r | (mm) | (mm/rev) | |
| TNMG 160408-PF | 16.50 | 9.52 | 4.76 | 0.80 | • | 0.80-3.00 | 0.08-0.30 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) DTGNR/L (42) MTENN-W (45) MTJNR/L-W (45) PTFNR-CA (102) PTFNR/L (44) PTGNR/L (42) PTGNR/L-X (43) PTGNR/L-X-JHP (43) PTGNR/L-X-JHP-MC (44) S-MTLNR/L-W (89) S-PTFNR/L (88)
60°
TNMG-TF
Double-Sided Triangular Inserts for Machining a Wide Range of Materials l at Medium Cutting Conditions r d i Dimensions Tough 1 Hard
S
91° 60° 93° 91° 91º 95º
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||||||
| TNMG 160304-TF | 16.50 | 9.52 | 3.18 | 0.40 | • | 1.00-3.00 | 0.12-0.30 | |||||
| TNMG 160308-TF | 16.50 | 9.52 | 3.18 | 0.80 | • | 1.00-3.00 | 0.12-0.30 | |||||
| TNMG 160404-TF | 16.50 | 9.52 | 4.76 | 0.40 | • • | • | • | • • | • | • | 1.00-3.00 | 0.12-0.30 |
| TNMG 160408-TF | 16.50 | 9.52 | 4.76 | 0.80 | • | • • | • | • • | • | • | 1.00-3.00 | 0.12-0.30 |
| TNMG 160412-TF | 16.50 | 9.52 | 4.76 | 1.20 | • | • | • | • | 1.00-5.00 | 0.12-0.40 | ||
| TNMG 220404-TF | 22.00 | 12.70 | 4.76 | 0.40 | • | • | • | • | 1.00-3.50 | 0.14-0.35 | ||
| TNMG 220408-TF | 22.00 | 12.70 | 4.76 | 0.80 | • | • | • | • | • | 1.00-4.00 | 0.15-0.40 | |
| TNMG 220412-TF | 22.00 | 12.70 | 4.76 | 1.20 | • | • | • | • | 1.00-4.50 | 0.18-0.40 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) C#-DTGNR/L (42) DTGNR/L (42) MTENN-W (45) MTJNR/L-W (45) PTFNR-CA (102) PTFNR/L (44) PTGNR/L (42) PTGNR/L-X (43) PTGNR/L-X-JHP (43) PTGNR/L-X-JHP-MC (44) S-MTLNR/L-W (89) S-PTFNR/L (88)
