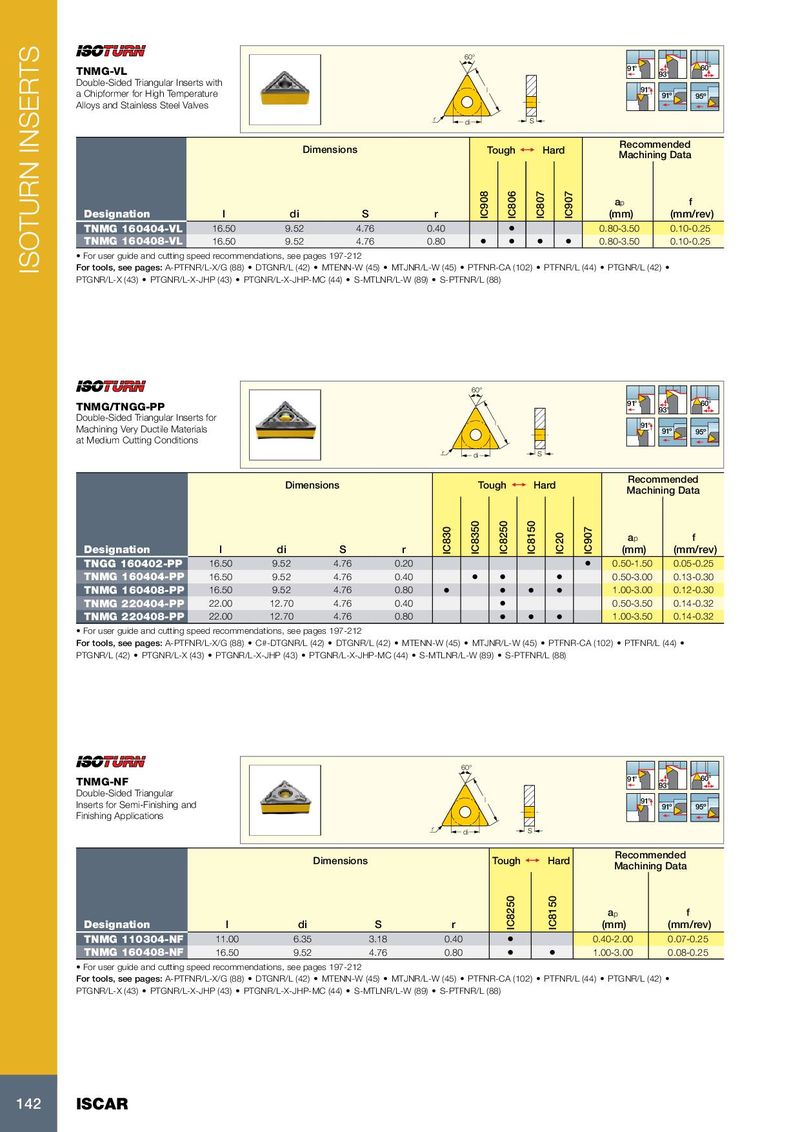

TNMG-VL
Double-Sided Triangular Inserts with a Chipformer for High Temperature l Alloys and Stainless Steel Valves
r di S
Dimensions Tough 1 Hard
91° 60° 91° 91º 95º
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||||
| TNMG 160404-VL | 16.50 | 9.52 | 4.76 | 0.40 | • | 0.80-3.50 | 0.10-0.25 | |||
| TNMG 160408-VL | 16.50 | 9.52 | 4.76 | 0.80 | • | • | • | • | 0.80-3.50 | 0.10-0.25 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) DTGNR/L (42) MTENN-W (45) MTJNR/L-W (45) PTFNR-CA (102) PTFNR/L (44) PTGNR/L (42) PTGNR/L-X (43) PTGNR/L-X-JHP (43) PTGNR/L-X-JHP-MC (44) S-MTLNR/L-W (89) S-PTFNR/L (88)
60°
TNMG/TNGG-PP
Double-Sided Triangular Inserts for Machining Very Ductile Materials l at Medium Cutting Conditions
r d S
i Dimensions Tough 1 Hard
91° 60° 93° 91° 91º 95º
Recommended Machining Data
a p f
| Designation | l | di | S | r | (mm) | (mm/rev) | |||
| TNGG 160402-PP | 16.50 | 9.52 | 4.76 | 0.20 | • 0.50-1.50 | 0.05-0.25 | |||
| TNMG 160404-PP | 16.50 | 9.52 | 4.76 | 0.40 | • • | • | 0.50-3.00 | 0.13-0.30 | |
| TNMG 160408-PP | 16.50 | 9.52 | 4.76 | 0.80 | • • | • | • | 1.00-3.00 | 0.12-0.30 |
| TNMG 220404-PP | 22.00 | 12.70 | 4.76 | 0.40 | • | 0.50-3.50 | 0.14-0.32 | ||
| TNMG 220408-PP | 22.00 | 12.70 | 4.76 | 0.80 | • | • | • | 1.00-3.50 | 0.14-0.32 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) C#-DTGNR/L (42) DTGNR/L (42) MTENN-W (45) MTJNR/L-W (45) PTFNR-CA (102) PTFNR/L (44) PTGNR/L (42) PTGNR/L-X (43) PTGNR/L-X-JHP (43) PTGNR/L-X-JHP-MC (44) S-MTLNR/L-W (89) S-PTFNR/L (88)
60°
TNMG-NF
Double-Sided Triangular Inserts for Semi-Finishing and l Finishing Applications
r di S
Dimensions Tough 1 Hard
91° 60° 93° 91° 91º 95º
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||
| TNMG 110304-NF | 11.00 | 6.35 | 3.18 | 0.40 | • | 0.40-2.00 | 0.07-0.25 | |
| TNMG 160408-NF | 16.50 | 9.52 | 4.76 | 0.80 | • | • | 1.00-3.00 | 0.08-0.25 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) DTGNR/L (42) MTENN-W (45) MTJNR/L-W (45) PTFNR-CA (102) PTFNR/L (44) PTGNR/L (42) PTGNR/L-X (43) PTGNR/L-X-JHP (43) PTGNR/L-X-JHP-MC (44) S-MTLNR/L-W (89) S-PTFNR/L (88)
