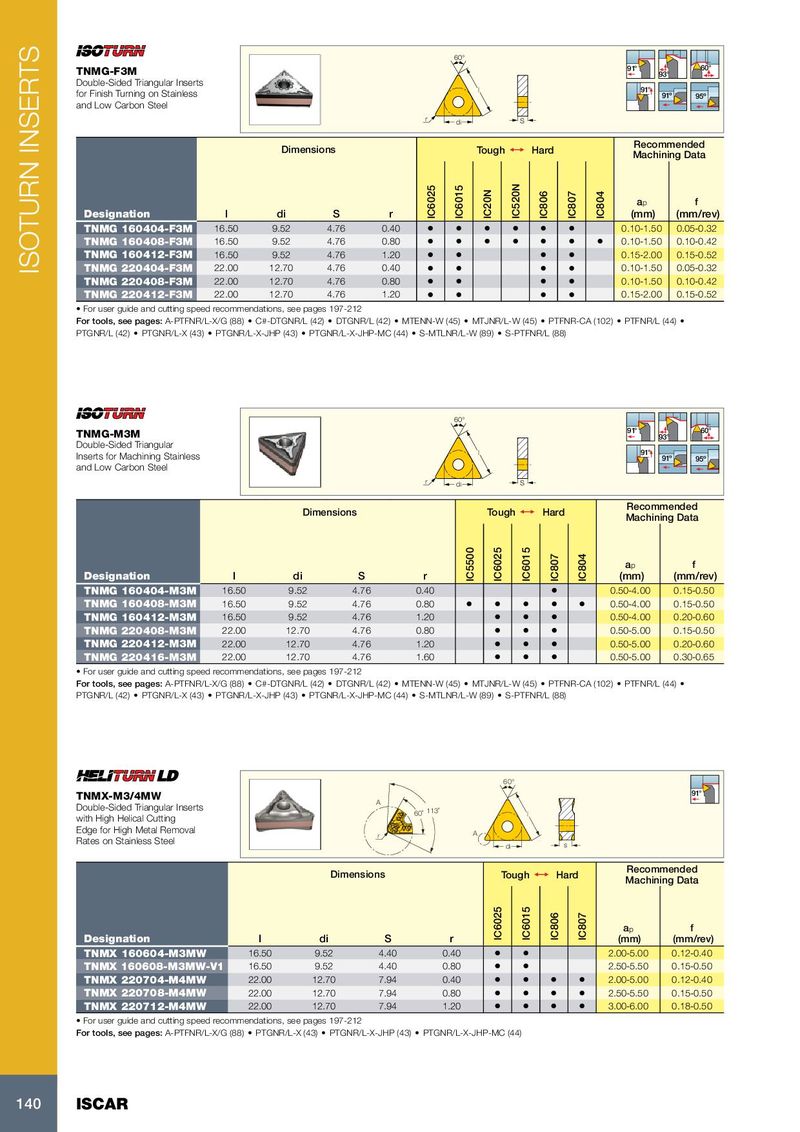

ISOTURN INSERTS
60°
91° 60°
TNMG-F3M 93°
Double-Sided Triangular Inserts
l 91°
for Finish Turning on Stainless 91º 95º
and Low Carbon Steel
r di S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC520N
IC6025
IC6015
IC20N
IC806
IC807
IC804
ap f
Designation l di S r (mm) (mm/rev)
TNMG 160404-F3M 16.50 9.52 4.76 0.40 • • • • • • 0.10-1.50 0.05-0.32
TNMG 160408-F3M 16.50 9.52 4.76 0.80 • • • • • • • 0.10-1.50 0.10-0.42
TNMG 160412-F3M 16.50 9.52 4.76 1.20 • • • • 0.15-2.00 0.15-0.52
TNMG 220404-F3M 22.00 12.70 4.76 0.40 • • • • 0.10-1.50 0.05-0.32
TNMG 220408-F3M 22.00 12.70 4.76 0.80 • • • • 0.10-1.50 0.10-0.42
TNMG 220412-F3M 22.00 12.70 4.76 1.20 • • • • 0.15-2.00 0.15-0.52
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) • C#-DTGNR/L (42) • DTGNR/L (42) • MTENN-W (45) • MTJNR/L-W (45) • PTFNR-CA (102) • PTFNR/L (44) •
PTGNR/L (42) • PTGNR/L-X (43) • PTGNR/L-X-JHP (43) • PTGNR/L-X-JHP-MC (44) • S-MTLNR/L-W (89) • S-PTFNR/L (88)
60°
91° 60°
TNMG-M3M 93°
Double-Sided Triangular
l 91°
Inserts for Machining Stainless 91º 95º
and Low Carbon Steel
r di S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC5500
IC6025
IC6015
IC807
IC804
ap f
Designation l di S r (mm) (mm/rev)
TNMG 160404-M3M 16.50 9.52 4.76 0.40 • 0.50-4.00 0.15-0.50
TNMG 160408-M3M 16.50 9.52 4.76 0.80 • • • • • 0.50-4.00 0.15-0.50
TNMG 160412-M3M 16.50 9.52 4.76 1.20 • • • 0.50-4.00 0.20-0.60
TNMG 220408-M3M 22.00 12.70 4.76 0.80 • • • 0.50-5.00 0.15-0.50
TNMG 220412-M3M 22.00 12.70 4.76 1.20 • • • 0.50-5.00 0.20-0.60
TNMG 220416-M3M 22.00 12.70 4.76 1.60 • • • 0.50-5.00 0.30-0.65
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) • C#-DTGNR/L (42) • DTGNR/L (42) • MTENN-W (45) • MTJNR/L-W (45) • PTFNR-CA (102) • PTFNR/L (44) •
PTGNR/L (42) • PTGNR/L-X (43) • PTGNR/L-X-JHP (43) • PTGNR/L-X-JHP-MC (44) • S-MTLNR/L-W (89) • S-PTFNR/L (88)
60°
91°
TNMX-M3/4MW A
Double-Sided Triangular Inserts
60˚ 113˚ l
with High Helical Cutting
Edge for High Metal Removal A
r
Rates on Stainless Steel di s
Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC6015
IC806
IC807
ap f
Designation l di S r (mm) (mm/rev)
TNMX 160604-M3MW 16.50 9.52 4.40 0.40 • • 2.00-5.00 0.12-0.40
TNMX 160608-M3MW-V1 16.50 9.52 4.40 0.80 • • 2.50-5.50 0.15-0.50
TNMX 220704-M4MW 22.00 12.70 7.94 0.40 • • • • 2.00-5.00 0.12-0.40
TNMX 220708-M4MW 22.00 12.70 7.94 0.80 • • • • 2.50-5.50 0.15-0.50
TNMX 220712-M4MW 22.00 12.70 7.94 1.20 • • • • 3.00-6.00 0.18-0.50
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) • PTGNR/L-X (43) • PTGNR/L-X-JHP (43) • PTGNR/L-X-JHP-MC (44)
