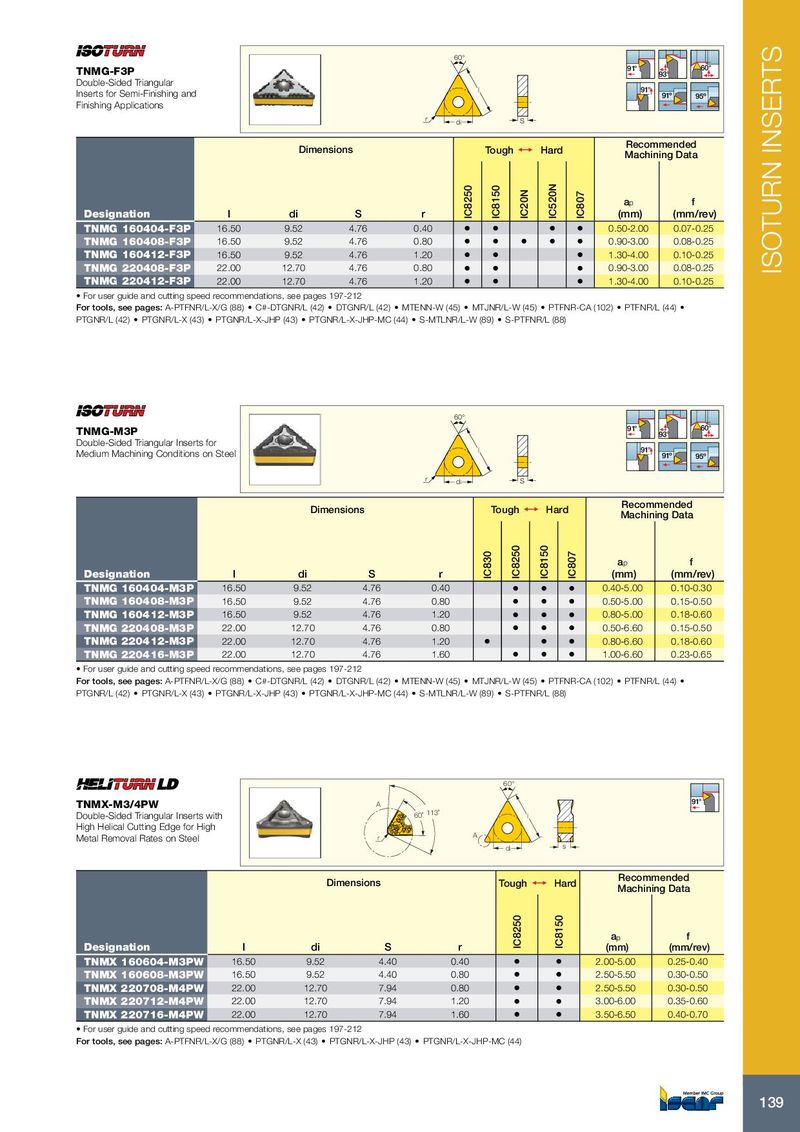

ISOTURN INSERTS
60°
91° 60°
TNMG-F3P 93°
Double-Sided Triangular
l 91°
Inserts for Semi-Finishing and 91º 95º
Finishing Applications
r di S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC520N
IC8250
IC8150
IC20N
IC807
ap f
Designation l di S r (mm) (mm/rev)
TNMG 160404-F3P 16.50 9.52 4.76 0.40 • • • • 0.50-2.00 0.07-0.25
TNMG 160408-F3P 16.50 9.52 4.76 0.80 • • • • • 0.90-3.00 0.08-0.25
TNMG 160412-F3P 16.50 9.52 4.76 1.20 • • • 1.30-4.00 0.10-0.25
TNMG 220408-F3P 22.00 12.70 4.76 0.80 • • • 0.90-3.00 0.08-0.25
TNMG 220412-F3P 22.00 12.70 4.76 1.20 • • • 1.30-4.00 0.10-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) • C#-DTGNR/L (42) • DTGNR/L (42) • MTENN-W (45) • MTJNR/L-W (45) • PTFNR-CA (102) • PTFNR/L (44) •
PTGNR/L (42) • PTGNR/L-X (43) • PTGNR/L-X-JHP (43) • PTGNR/L-X-JHP-MC (44) • S-MTLNR/L-W (89) • S-PTFNR/L (88)
60°
91° 60°
TNMG-M3P 93°
Double-Sided Triangular Inserts for
l 91°
Medium Machining Conditions on Steel 91º 95º
r di S
Recommended
Dimensions Tough 1 Hard
IC8250 Machining Data
IC8150
IC830
IC807
ap f
Designation l di S r (mm) (mm/rev)
TNMG 160404-M3P 16.50 9.52 4.76 0.40 • • • 0.40-5.00 0.10-0.30
TNMG 160408-M3P 16.50 9.52 4.76 0.80 • • • 0.50-5.00 0.15-0.50
TNMG 160412-M3P 16.50 9.52 4.76 1.20 • • • 0.80-5.00 0.18-0.60
TNMG 220408-M3P 22.00 12.70 4.76 0.80 • • • 0.50-6.60 0.15-0.50
TNMG 220412-M3P 22.00 12.70 4.76 1.20 • • • 0.80-6.60 0.18-0.60
TNMG 220416-M3P 22.00 12.70 4.76 1.60 • • • 1.00-6.60 0.23-0.65
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) • C#-DTGNR/L (42) • DTGNR/L (42) • MTENN-W (45) • MTJNR/L-W (45) • PTFNR-CA (102) • PTFNR/L (44) •
PTGNR/L (42) • PTGNR/L-X (43) • PTGNR/L-X-JHP (43) • PTGNR/L-X-JHP-MC (44) • S-MTLNR/L-W (89) • S-PTFNR/L (88)
60°
91°
TNMX-M3/4PW A
Double-Sided Triangular Inserts with 60˚ 113˚ l
High Helical Cutting Edge for High
A
Metal Removal Rates on Steel r
di s
Recommended
Dimensions Tough 1 Hard
Machining Data
IC8250
IC8150
ap f
Designation l di S r (mm) (mm/rev)
TNMX 160604-M3PW 16.50 9.52 4.40 0.40 • • 2.00-5.00 0.25-0.40
TNMX 160608-M3PW 16.50 9.52 4.40 0.80 • • 2.50-5.50 0.30-0.50
TNMX 220708-M4PW 22.00 12.70 7.94 0.80 • • 2.50-5.50 0.30-0.50
TNMX 220712-M4PW 22.00 12.70 7.94 1.20 • • 3.00-6.00 0.35-0.60
TNMX 220716-M4PW 22.00 12.70 7.94 1.60 • • 3.50-6.50 0.40-0.70
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) • PTGNR/L-X (43) • PTGNR/L-X-JHP (43) • PTGNR/L-X-JHP-MC (44)
139
60°
91° 60°
TNMG-F3P 93°
Double-Sided Triangular
l 91°
Inserts for Semi-Finishing and 91º 95º
Finishing Applications
r di S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC520N
IC8250
IC8150
IC20N
IC807
ap f
Designation l di S r (mm) (mm/rev)
TNMG 160404-F3P 16.50 9.52 4.76 0.40 • • • • 0.50-2.00 0.07-0.25
TNMG 160408-F3P 16.50 9.52 4.76 0.80 • • • • • 0.90-3.00 0.08-0.25
TNMG 160412-F3P 16.50 9.52 4.76 1.20 • • • 1.30-4.00 0.10-0.25
TNMG 220408-F3P 22.00 12.70 4.76 0.80 • • • 0.90-3.00 0.08-0.25
TNMG 220412-F3P 22.00 12.70 4.76 1.20 • • • 1.30-4.00 0.10-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) • C#-DTGNR/L (42) • DTGNR/L (42) • MTENN-W (45) • MTJNR/L-W (45) • PTFNR-CA (102) • PTFNR/L (44) •
PTGNR/L (42) • PTGNR/L-X (43) • PTGNR/L-X-JHP (43) • PTGNR/L-X-JHP-MC (44) • S-MTLNR/L-W (89) • S-PTFNR/L (88)
60°
91° 60°
TNMG-M3P 93°
Double-Sided Triangular Inserts for
l 91°
Medium Machining Conditions on Steel 91º 95º
r di S
Recommended
Dimensions Tough 1 Hard
IC8250 Machining Data
IC8150
IC830
IC807
ap f
Designation l di S r (mm) (mm/rev)
TNMG 160404-M3P 16.50 9.52 4.76 0.40 • • • 0.40-5.00 0.10-0.30
TNMG 160408-M3P 16.50 9.52 4.76 0.80 • • • 0.50-5.00 0.15-0.50
TNMG 160412-M3P 16.50 9.52 4.76 1.20 • • • 0.80-5.00 0.18-0.60
TNMG 220408-M3P 22.00 12.70 4.76 0.80 • • • 0.50-6.60 0.15-0.50
TNMG 220412-M3P 22.00 12.70 4.76 1.20 • • • 0.80-6.60 0.18-0.60
TNMG 220416-M3P 22.00 12.70 4.76 1.60 • • • 1.00-6.60 0.23-0.65
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) • C#-DTGNR/L (42) • DTGNR/L (42) • MTENN-W (45) • MTJNR/L-W (45) • PTFNR-CA (102) • PTFNR/L (44) •
PTGNR/L (42) • PTGNR/L-X (43) • PTGNR/L-X-JHP (43) • PTGNR/L-X-JHP-MC (44) • S-MTLNR/L-W (89) • S-PTFNR/L (88)
60°
91°
TNMX-M3/4PW A
Double-Sided Triangular Inserts with 60˚ 113˚ l
High Helical Cutting Edge for High
A
Metal Removal Rates on Steel r
di s
Recommended
Dimensions Tough 1 Hard
Machining Data
IC8250
IC8150
ap f
Designation l di S r (mm) (mm/rev)
TNMX 160604-M3PW 16.50 9.52 4.40 0.40 • • 2.00-5.00 0.25-0.40
TNMX 160608-M3PW 16.50 9.52 4.40 0.80 • • 2.50-5.50 0.30-0.50
TNMX 220708-M4PW 22.00 12.70 7.94 0.80 • • 2.50-5.50 0.30-0.50
TNMX 220712-M4PW 22.00 12.70 7.94 1.20 • • 3.00-6.00 0.35-0.60
TNMX 220716-M4PW 22.00 12.70 7.94 1.60 • • 3.50-6.50 0.40-0.70
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PTFNR/L-X/G (88) • PTGNR/L-X (43) • PTGNR/L-X-JHP (43) • PTGNR/L-X-JHP-MC (44)
139
