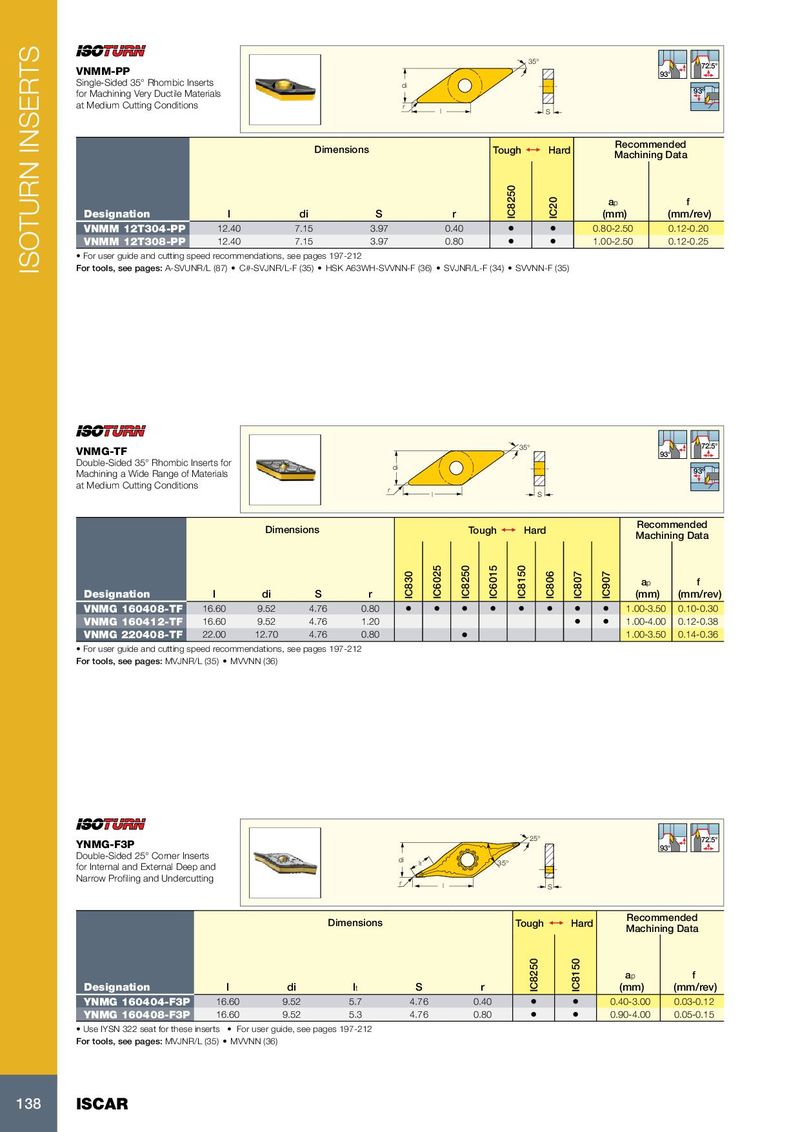

VNMM-PP 72.5° Single-Sided 35° Rhombic Inserts for Machining Very Ductile Materials 93º at Medium Cutting Conditions r l S
Recommended Dimensions Tough 1 Hard Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||
| VNMM 12T304-PP | 12.40 | 7.15 | 3.97 | 0.40 | • | • | 0.80-2.50 | 0.12-0.20 |
| VNMM 12T308-PP | 12.40 | 7.15 | 3.97 | 0.80 | • | • | 1.00-2.50 | 0.12-0.25 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-SVUNR/L (87) C#-SVJNR/L-F (35) HSK A63WH-SVVNN-F (36) SVJNR/L-F (34) SVVNN-F (35)
VNMG-TF
Double-Sided 35° Rhombic Inserts for Machining a Wide Range of Materials at Medium Cutting Conditions
Dimensions
di r
35°
l S
Tough 1 Hard
72.5° 93° 93º
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||||||||
| VNMG 160408-TF | 16.60 | 9.52 | 4.76 | 0.80 | • | • | • | • | • | • | • | • | 1.00-3.50 | 0.10-0.30 |
| VNMG 160412-TF | 16.60 | 9.52 | 4.76 | 1.20 | • | • | 1.00-4.00 | 0.12-0.38 | ||||||
| VNMG 220408-TF | 22.00 | 12.70 | 4.76 | 0.80 | • | 1.00-3.50 | 0.14-0.36 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: MVJNR/L (35) MVVNN (36)
YNMG-F3P 25° Double-Sided 25° Corner Inserts
| di | l | 35° | |
| for Internal and External Deep and | t | ||
| Narrow Profiling and Undercutting |
r l S
Dimensions Tough 1 Hard
72.5° 93°
Recommended Machining Data
ap f
| Designation | l | di | lt | S | r | (mm) | (mm/rev) | ||
| YNMG 160404-F3P | 16.60 | 9.52 | 5.7 | 4.76 | 0.40 | • | • | 0.40-3.00 | 0.03-0.12 |
| YNMG 160408-F3P | 16.60 | 9.52 | 5.3 | 4.76 | 0.80 | • | • | 0.90-4.00 | 0.05-0.15 |
- Use IYSN 322 seat for these inserts
- For user guide, see pages 197-212
For tools, see pages: MVJNR/L (35) MVVNN (36)
