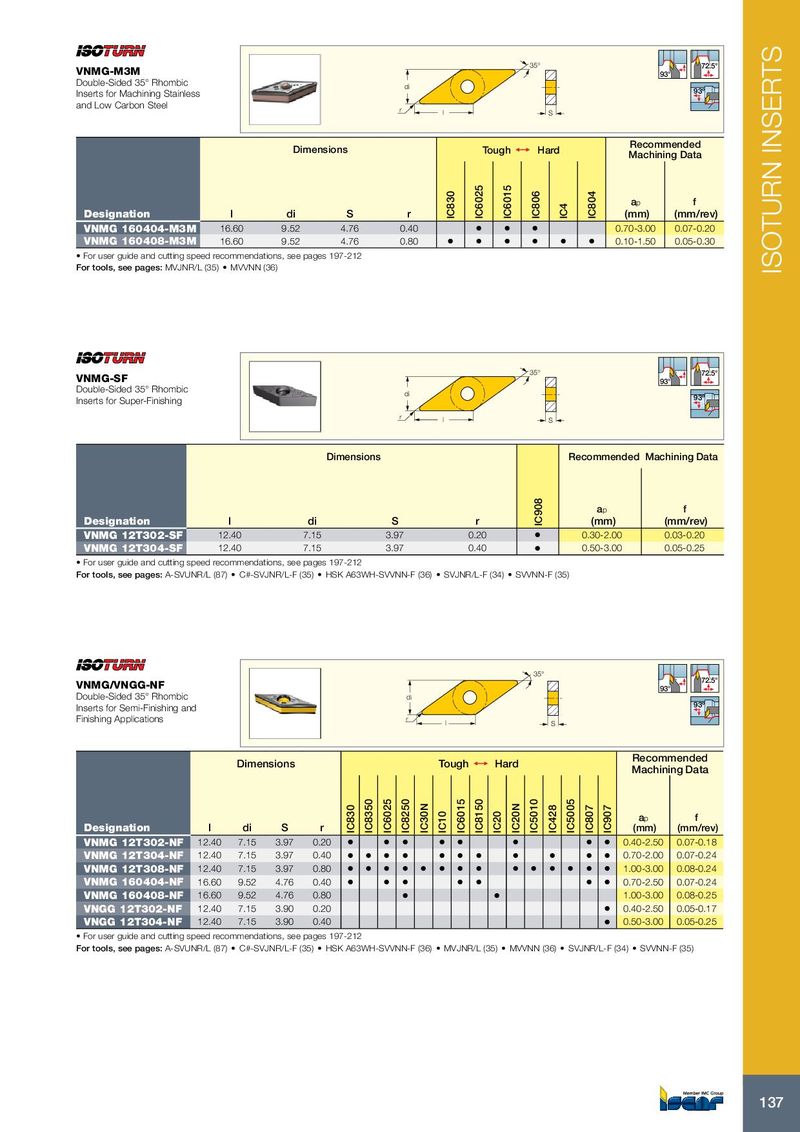

ISOTURN INSERTS
35° 72.5°
VNMG-M3M 93°
Double-Sided 35° Rhombic di
Inserts for Machining Stainless 93º
and Low Carbon Steel r l S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC6015
IC830
IC806
IC804
ap f
IC4
Designation l di S r (mm) (mm/rev)
VNMG 160404-M3M 16.60 9.52 4.76 0.40 • • • 0.70-3.00 0.07-0.20
VNMG 160408-M3M 16.60 9.52 4.76 0.80 • • • • • • 0.10-1.50 0.05-0.30
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: MVJNR/L (35) • MVVNN (36)
35° 72.5°
VNMG-SF 93°
Double-Sided 35° Rhombic di
Inserts for Super-Finishing 93º
r l S
Dimensions Recommended Machining Data
IC908
ap f
Designation l di S r (mm) (mm/rev)
VNMG 12T302-SF 12.40 7.15 3.97 0.20 • 0.30-2.00 0.03-0.20
VNMG 12T304-SF 12.40 7.15 3.97 0.40 • 0.50-3.00 0.05-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-SVUNR/L (87) • C#-SVJNR/L-F (35) • HSK A63WH-SVVNN-F (36) • SVJNR/L-F (34) • SVVNN-F (35)
35°
72.5°
VNMG/VNGG-NF 93°
Double-Sided 35° Rhombic di
Inserts for Semi-Finishing and 93º
Finishing Applications r
l S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC8350
IC6025
IC8250
IC6015
IC8150
IC5010
IC5005
IC30N
IC20N
IC830
IC428
IC807
IC907
IC10
IC20
ap f
Designation l di S r (mm) (mm/rev)
VNMG 12T302-NF 12.40 7.15 3.97 0.20 • • • • • • • • 0.40-2.50 0.07-0.18
VNMG 12T304-NF 12.40 7.15 3.97 0.40 • • • • • • • • • • • 0.70-2.00 0.07-0.24
VNMG 12T308-NF 12.40 7.15 3.97 0.80 • • • • • • • • • • • • • • 1.00-3.00 0.08-0.24
VNMG 160404-NF 16.60 9.52 4.76 0.40 • • • • • • • 0.70-2.50 0.07-0.24
VNMG 160408-NF 16.60 9.52 4.76 0.80 • • 1.00-3.00 0.08-0.25
VNGG 12T302-NF 12.40 7.15 3.90 0.20 • 0.40-2.50 0.05-0.17
VNGG 12T304-NF 12.40 7.15 3.90 0.40 • 0.50-3.00 0.05-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-SVUNR/L (87) • C#-SVJNR/L-F (35) • HSK A63WH-SVVNN-F (36) • MVJNR/L (35) • MVVNN (36) • SVJNR/L-F (34) • SVVNN-F (35)
137
