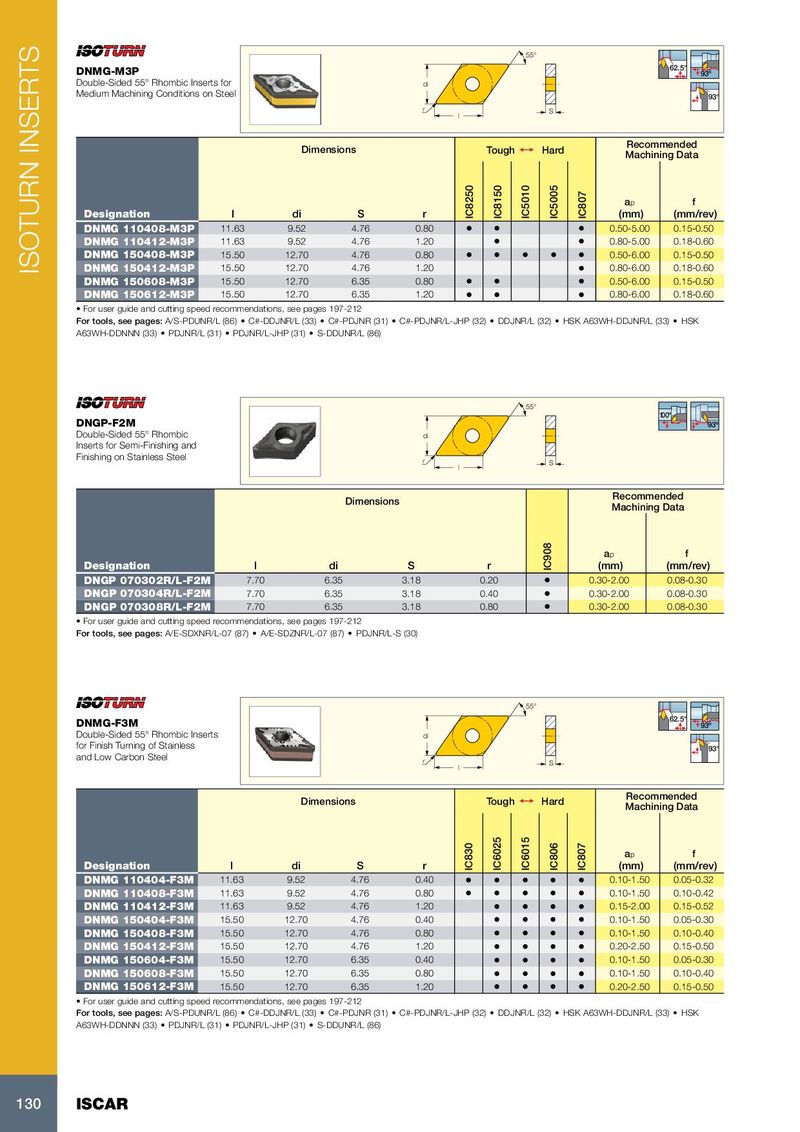

ISOTURN INSERTS
55°
62.5°
DNMG-M3P 93º
Double-Sided 55° Rhombic Inserts for di
Medium Machining Conditions on Steel 93°
r S
l

Recommended
Dimensions Tough 1 Hard
Machining Data


IC8250
IC8150
IC5010
IC5005
IC807
ap f
Designation l di S r (mm) (mm/rev)
DNMG 110408-M3P 11.63 9.52 4.76 0.80 • • • 0.50-5.00 0.15-0.50
DNMG 110412-M3P 11.63 9.52 4.76 1.20 • • 0.80-5.00 0.18-0.60
DNMG 150408-M3P 15.50 12.70 4.76 0.80 • • • • • 0.50-6.00 0.15-0.50
DNMG 150412-M3P 15.50 12.70 4.76 1.20 • 0.80-6.00 0.18-0.60
DNMG 150608-M3P 15.50 12.70 6.35 0.80 • • • 0.50-6.00 0.15-0.50
DNMG 150612-M3P 15.50 12.70 6.35 1.20 • • • 0.80-6.00 0.18-0.60
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PDUNR/L (86) • C#-DDJNR/L (33) • C#-PDJNR (31) • C#-PDJNR/L-JHP (32) • DDJNR/L (32) • HSK A63WH-DDJNR/L (33) • HSK
A63WH-DDNNN (33) • PDJNR/L (31) • PDJNR/L-JHP (31) • S-DDUNR/L (86)


55°
100º
DNGP-F2M 93º
Double-Sided 55° Rhombic di
Inserts for Semi-Finishing and
Finishing on Stainless Steel r S
l

Recommended
Dimensions
Machining Data

IC908
ap f
Designation l di S r (mm) (mm/rev)
DNGP 070302R/L-F2M 7.70 6.35 3.18 0.20 • 0.30-2.00 0.08-0.30
DNGP 070304R/L-F2M 7.70 6.35 3.18 0.40 • 0.30-2.00 0.08-0.30
DNGP 070308R/L-F2M 7.70 6.35 3.18 0.80 • 0.30-2.00 0.08-0.30
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/E-SDXNR/L-07 (87) • A/E-SDZNR/L-07 (87) • PDJNR/L-S (30)


55°
62.5°
DNMG-F3M 93º
Double-Sided 55° Rhombic Inserts di
for Finish Turning of Stainless 93°
and Low Carbon Steel r S
l

Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC6015
IC830


IC806
IC807


ap f
Designation l di S r (mm) (mm/rev)
DNMG 110404-F3M 11.63 9.52 4.76 0.40 • • • • • 0.10-1.50 0.05-0.32
DNMG 110408-F3M 11.63 9.52 4.76 0.80 • • • • • 0.10-1.50 0.10-0.42
DNMG 110412-F3M 11.63 9.52 4.76 1.20 • • • • 0.15-2.00 0.15-0.52
DNMG 150404-F3M 15.50 12.70 4.76 0.40 • • • • 0.10-1.50 0.05-0.30
DNMG 150408-F3M 15.50 12.70 4.76 0.80 • • • • 0.10-1.50 0.10-0.40
DNMG 150412-F3M 15.50 12.70 4.76 1.20 • • • • 0.20-2.50 0.15-0.50
DNMG 150604-F3M 15.50 12.70 6.35 0.40 • • • • 0.10-1.50 0.05-0.30
DNMG 150608-F3M 15.50 12.70 6.35 0.80 • • • • 0.10-1.50 0.10-0.40
DNMG 150612-F3M 15.50 12.70 6.35 1.20 • • • • 0.20-2.50 0.15-0.50
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PDUNR/L (86) • C#-DDJNR/L (33) • C#-PDJNR (31) • C#-PDJNR/L-JHP (32) • DDJNR/L (32) • HSK A63WH-DDJNR/L (33) • HSK
A63WH-DDNNN (33) • PDJNR/L (31) • PDJNR/L-JHP (31) • S-DDUNR/L (86)


130 ISCAR
