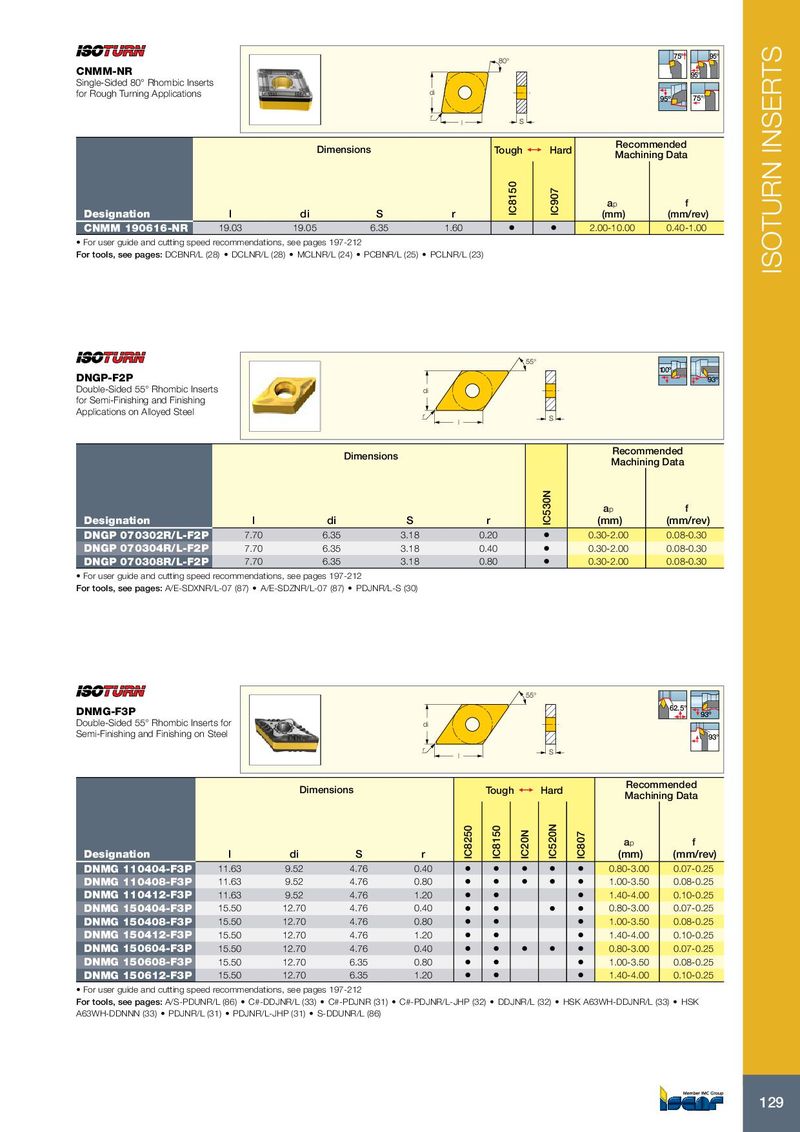

ISOTURN INSERTS
75° 95°
80°
CNMM-NR 95°
Single-Sided 80° Rhombic Inserts
for Rough Turning Applications di
95º 75°
r
l S

Recommended
Dimensions Tough 1 Hard
Machining Data


IC8150

IC907
ap f
Designation l di S r (mm) (mm/rev)
CNMM 190616-NR 19.03 19.05 6.35 1.60 • • 2.00-10.00 0.40-1.00
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: DCBNR/L (28) • DCLNR/L (28) • MCLNR/L (24) • PCBNR/L (25) • PCLNR/L (23)


55°
100º
DNGP-F2P 93º
Double-Sided 55° Rhombic Inserts di
for Semi-Finishing and Finishing
Applications on Alloyed Steel r S
l

Recommended
Dimensions
Machining Data


IC530N
ap f
Designation l di S r (mm) (mm/rev)
DNGP 070302R/L-F2P 7.70 6.35 3.18 0.20 • 0.30-2.00 0.08-0.30
DNGP 070304R/L-F2P 7.70 6.35 3.18 0.40 • 0.30-2.00 0.08-0.30
DNGP 070308R/L-F2P 7.70 6.35 3.18 0.80 • 0.30-2.00 0.08-0.30
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/E-SDXNR/L-07 (87) • A/E-SDZNR/L-07 (87) • PDJNR/L-S (30)


55°
62.5°
DNMG-F3P 93º
Double-Sided 55° Rhombic Inserts for di
Semi-Finishing and Finishing on Steel 93°
r S
l

Recommended
Dimensions Tough 1 Hard
Machining Data
IC520N
IC8250
IC8150
IC20N


IC807


ap f
Designation l di S r (mm) (mm/rev)
DNMG 110404-F3P 11.63 9.52 4.76 0.40 • • • • • 0.80-3.00 0.07-0.25
DNMG 110408-F3P 11.63 9.52 4.76 0.80 • • • • • 1.00-3.50 0.08-0.25
DNMG 110412-F3P 11.63 9.52 4.76 1.20 • • • 1.40-4.00 0.10-0.25
DNMG 150404-F3P 15.50 12.70 4.76 0.40 • • • • 0.80-3.00 0.07-0.25
DNMG 150408-F3P 15.50 12.70 4.76 0.80 • • • 1.00-3.50 0.08-0.25
DNMG 150412-F3P 15.50 12.70 4.76 1.20 • • • 1.40-4.00 0.10-0.25
DNMG 150604-F3P 15.50 12.70 4.76 0.40 • • • • • 0.80-3.00 0.07-0.25
DNMG 150608-F3P 15.50 12.70 6.35 0.80 • • • 1.00-3.50 0.08-0.25
DNMG 150612-F3P 15.50 12.70 6.35 1.20 • • • 1.40-4.00 0.10-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PDUNR/L (86) • C#-DDJNR/L (33) • C#-PDJNR (31) • C#-PDJNR/L-JHP (32) • DDJNR/L (32) • HSK A63WH-DDJNR/L (33) • HSK
A63WH-DDNNN (33) • PDJNR/L (31) • PDJNR/L-JHP (31) • S-DDUNR/L (86)
