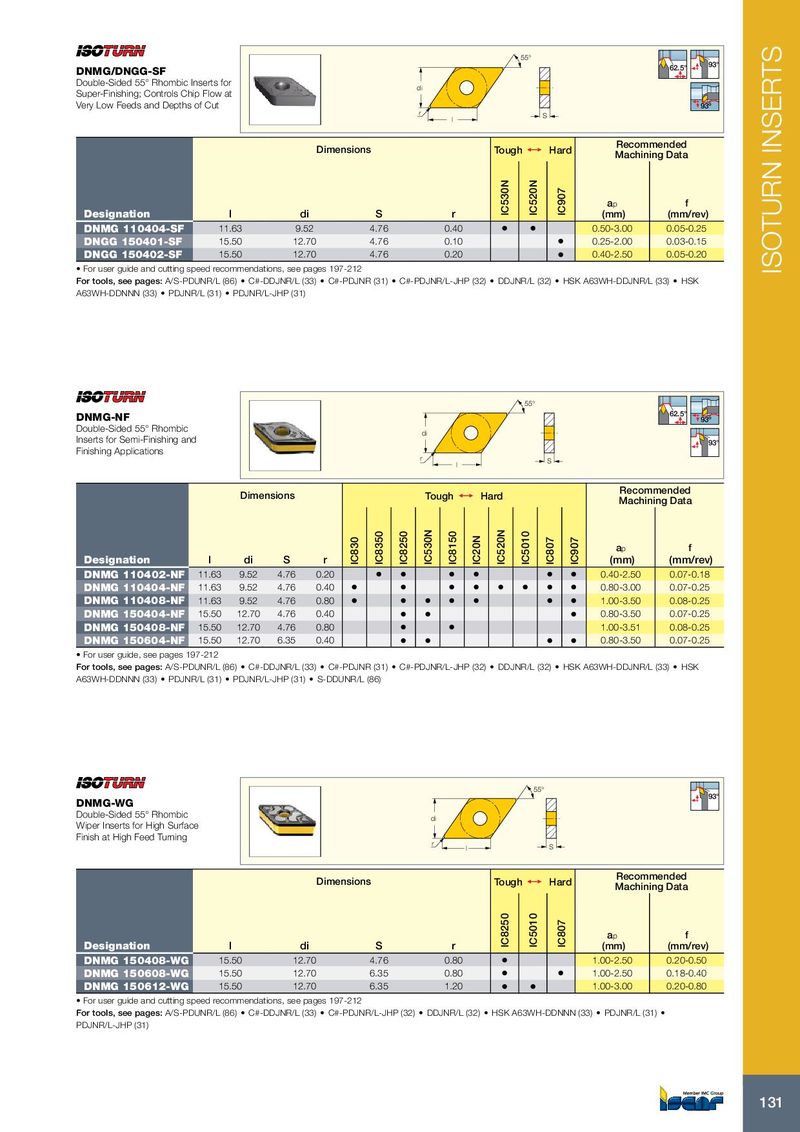

Каталог Iscar токарный инструмент 2017 - страница 135

ISOTURN INSERTS
55°
62.5° 93°
DNMG/DNGG-SF
Double-Sided 55° Rhombic Inserts for di
Super-Finishing; Controls Chip Flow at
Very Low Feeds and Depths of Cut 93º
r S
l

Recommended
Dimensions Tough 1 Hard
Machining Data


IC530N
IC520N
IC907
ap f
Designation l di S r (mm) (mm/rev)
DNMG 110404-SF 11.63 9.52 4.76 0.40 • • 0.50-3.00 0.05-0.25
DNGG 150401-SF 15.50 12.70 4.76 0.10 • 0.25-2.00 0.03-0.15
DNGG 150402-SF 15.50 12.70 4.76 0.20 • 0.40-2.50 0.05-0.20
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PDUNR/L (86) • C#-DDJNR/L (33) • C#-PDJNR (31) • C#-PDJNR/L-JHP (32) • DDJNR/L (32) • HSK A63WH-DDJNR/L (33) • HSK
A63WH-DDNNN (33) • PDJNR/L (31) • PDJNR/L-JHP (31)


55°
62.5°
DNMG-NF 93º
Double-Sided 55° Rhombic di
Inserts for Semi-Finishing and 93°
Finishing Applications
r S
l

Recommended
Dimensions Tough 1 Hard
Machining Data
IC530N


IC520N
IC8350
IC8250

IC8150


IC5010
IC20N
IC830


IC807
IC907
ap f
Designation l di S r (mm) (mm/rev)
DNMG 110402-NF 11.63 9.52 4.76 0.20 • • • • • • 0.40-2.50 0.07-0.18
DNMG 110404-NF 11.63 9.52 4.76 0.40 • • • • • • • • 0.80-3.00 0.07-0.25
DNMG 110408-NF 11.63 9.52 4.76 0.80 • • • • • • • 1.00-3.50 0.08-0.25
DNMG 150404-NF 15.50 12.70 4.76 0.40 • • • 0.80-3.50 0.07-0.25
DNMG 150408-NF 15.50 12.70 4.76 0.80 • • 1.00-3.51 0.08-0.25
DNMG 150604-NF 15.50 12.70 6.35 0.40 • • • • 0.80-3.50 0.07-0.25
• For user guide, see pages 197-212
For tools, see pages: A/S-PDUNR/L (86) • C#-DDJNR/L (33) • C#-PDJNR (31) • C#-PDJNR/L-JHP (32) • DDJNR/L (32) • HSK A63WH-DDJNR/L (33) • HSK
A63WH-DDNNN (33) • PDJNR/L (31) • PDJNR/L-JHP (31) • S-DDUNR/L (86)


55°
93°
DNMG-WG
Double-Sided 55° Rhombic di
Wiper Inserts for High Surface
Finish at High Feed Turning
r S
l

Recommended
Dimensions Tough 1 Hard
Machining Data
IC8250
IC5010
IC807


ap f
Designation l di S r (mm) (mm/rev)
DNMG 150408-WG 15.50 12.70 4.76 0.80 • 1.00-2.50 0.20-0.50
DNMG 150608-WG 15.50 12.70 6.35 0.80 • • 1.00-2.50 0.18-0.40
DNMG 150612-WG 15.50 12.70 6.35 1.20 • • 1.00-3.00 0.20-0.80
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PDUNR/L (86) • C#-DDJNR/L (33) • C#-PDJNR/L-JHP (32) • DDJNR/L (32) • HSK A63WH-DDNNN (33) • PDJNR/L (31) •
PDJNR/L-JHP (31)


131
