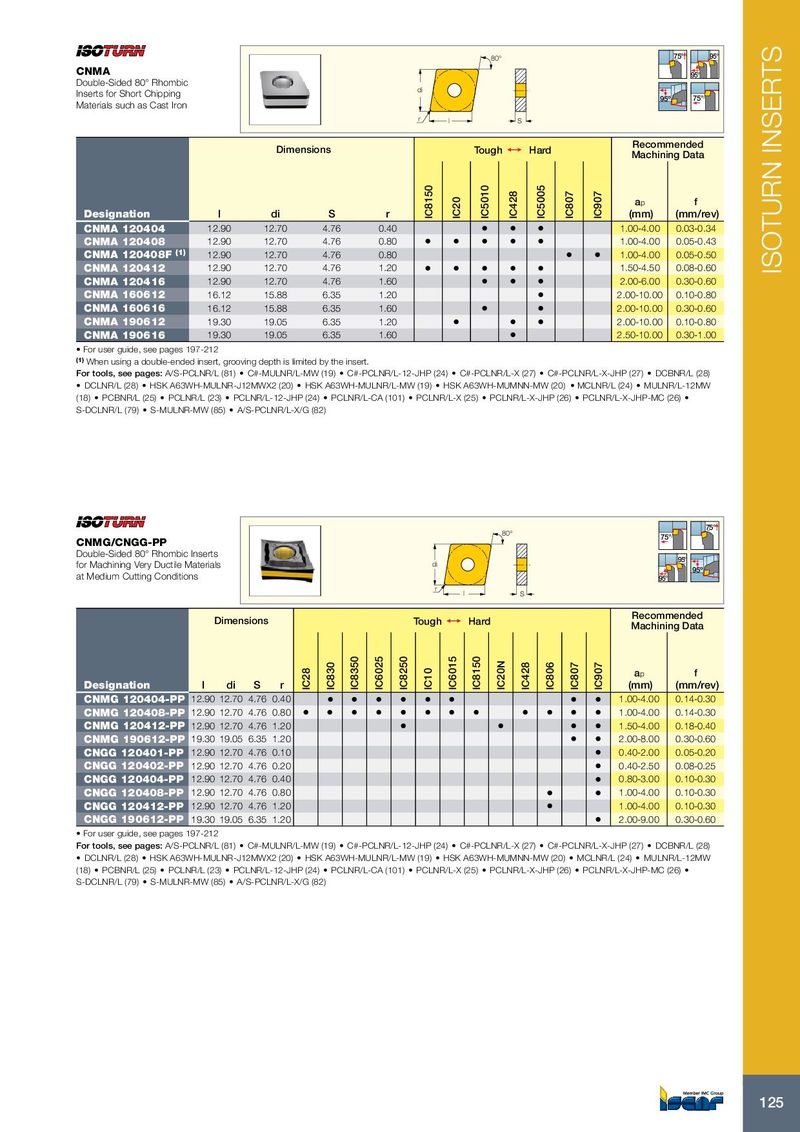

Каталог Iscar токарный инструмент 2017 - страница 129

ISOTURN INSERTS
80° 75° 95°
CNMA 95°
Double-Sided 80° Rhombic
di
Inserts for Short Chipping 95º 75°
Materials such as Cast Iron
r l S

Recommended
Dimensions Tough 1 Hard
Machining Data


IC8150


IC5010


IC5005
IC428


IC807
IC907
ap f


IC20
Designation l di S r (mm) (mm/rev)
CNMA 120404 12.90 12.70 4.76 0.40 • • • 1.00-4.00 0.03-0.34
CNMA 120408 12.90 12.70 4.76 0.80 • • • • • 1.00-4.00 0.05-0.43
CNMA 120408F (1) 12.90 12.70 4.76 0.80 • • 1.00-4.00 0.05-0.50
CNMA 120412 12.90 12.70 4.76 1.20 • • • • • 1.50-4.50 0.08-0.60
CNMA 120416 12.90 12.70 4.76 1.60 • • • 2.00-6.00 0.30-0.60
CNMA 160612 16.12 15.88 6.35 1.20 • 2.00-10.00 0.10-0.80
CNMA 160616 16.12 15.88 6.35 1.60 • • 2.00-10.00 0.30-0.60
CNMA 190612 19.30 19.05 6.35 1.20 • • • 2.00-10.00 0.10-0.80
CNMA 190616 19.30 19.05 6.35 1.60 • 2.50-10.00 0.30-1.00
• For user guide, see pages 197-212
(1) When using a double-ended insert, grooving depth is limited by the insert.
For tools, see pages: A/S-PCLNR/L (81) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) • C#-PCLNR/L-X-JHP (27) • DCBNR/L (28)
• DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MCLNR/L (24) • MULNR/L-12MW
(18) • PCBNR/L (25) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) • PCLNR/L-X-JHP (26) • PCLNR/L-X-JHP-MC (26) •
S-DCLNR/L (79) • S-MULNR-MW (85) • A/S-PCLNR/L-X/G (82)


75°
80°
75°
CNMG/CNGG-PP
Double-Sided 80° Rhombic Inserts
95°
for Machining Very Ductile Materials di
95º
at Medium Cutting Conditions 95°
r
l S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC8350
IC6025
IC8250

IC6015
IC8150
IC20N
IC830


IC428
IC806
IC807
IC907


ap f
IC28


IC10


Designation l di S r (mm) (mm/rev)
CNMG 120404-PP 12.90 12.70 4.76 0.40 • • • • • • • • 1.00-4.00 0.14-0.30
CNMG 120408-PP 12.90 12.70 4.76 0.80 • • • • • • • • • • • • 1.00-4.00 0.14-0.30
CNMG 120412-PP 12.90 12.70 4.76 1.20 • • • • 1.50-4.00 0.18-0.40
CNMG 190612-PP 19.30 19.05 6.35 1.20 • • 2.00-8.00 0.30-0.60
CNGG 120401-PP 12.90 12.70 4.76 0.10 • 0.40-2.00 0.05-0.20
CNGG 120402-PP 12.90 12.70 4.76 0.20 • 0.40-2.50 0.08-0.25
CNGG 120404-PP 12.90 12.70 4.76 0.40 • 0.80-3.00 0.10-0.30
CNGG 120408-PP 12.90 12.70 4.76 0.80 • • 1.00-4.00 0.10-0.30
CNGG 120412-PP 12.90 12.70 4.76 1.20 • 1.00-4.00 0.10-0.30
CNGG 190612-PP 19.30 19.05 6.35 1.20 • 2.00-9.00 0.30-0.60
• For user guide, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) • C#-PCLNR/L-X-JHP (27) • DCBNR/L (28)
• DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MCLNR/L (24) • MULNR/L-12MW
(18) • PCBNR/L (25) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) • PCLNR/L-X-JHP (26) • PCLNR/L-X-JHP-MC (26) •
S-DCLNR/L (79) • S-MULNR-MW (85) • A/S-PCLNR/L-X/G (82)


125
