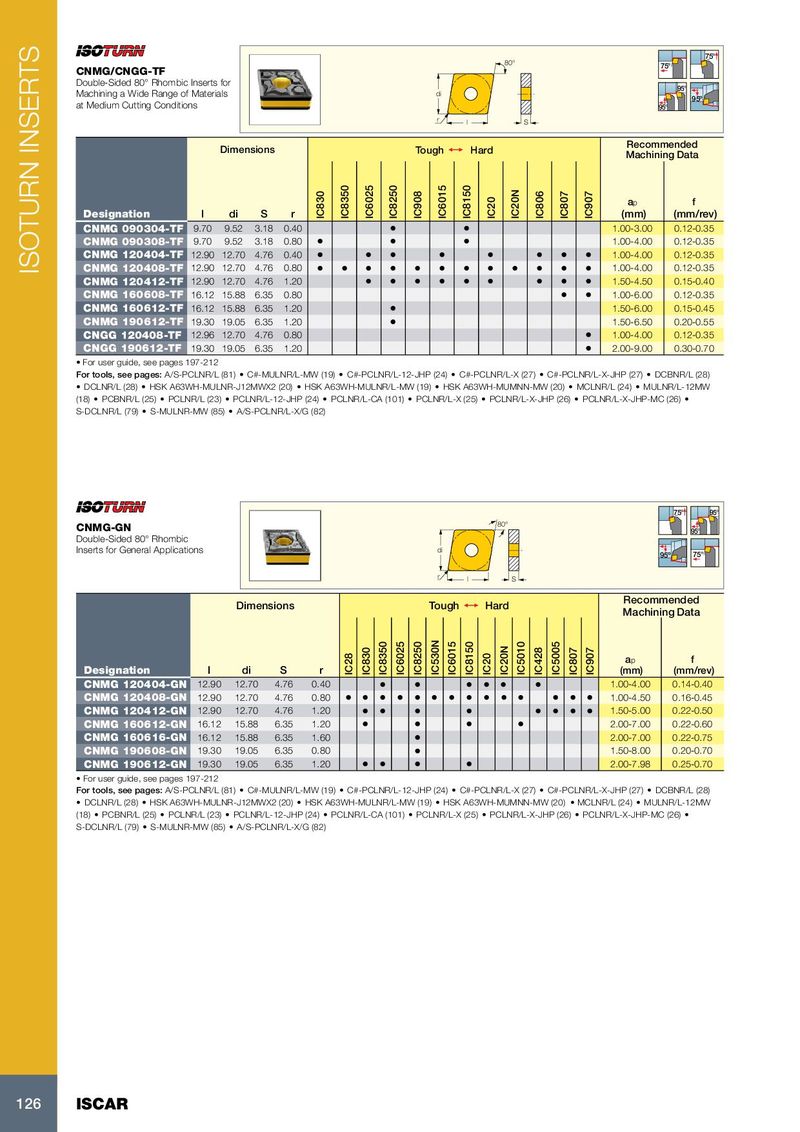

Каталог Iscar токарный инструмент 2017 - страница 130

ISOTURN INSERTS
75°
80° 75°
CNMG/CNGG-TF
Double-Sided 80° Rhombic Inserts for
95°
Machining a Wide Range of Materials di
95º
at Medium Cutting Conditions 95°
r l S

Recommended
Dimensions Tough 1 Hard
Machining Data


IC8350
IC6025
IC8250

IC6015
IC8150

IC20N
IC830


IC908


IC806
IC807
IC907
ap f


IC20
Designation l di S r (mm) (mm/rev)
CNMG 090304-TF 9.70 9.52 3.18 0.40 • • 1.00-3.00 0.12-0.35
CNMG 090308-TF 9.70 9.52 3.18 0.80 • • • 1.00-4.00 0.12-0.35
CNMG 120404-TF 12.90 12.70 4.76 0.40 • • • • • • • • 1.00-4.00 0.12-0.35
CNMG 120408-TF 12.90 12.70 4.76 0.80 • • • • • • • • • • • • 1.00-4.00 0.12-0.35
CNMG 120412-TF 12.90 12.70 4.76 1.20 • • • • • • • • • 1.50-4.50 0.15-0.40
CNMG 160608-TF 16.12 15.88 6.35 0.80 • • 1.00-6.00 0.12-0.35
CNMG 160612-TF 16.12 15.88 6.35 1.20 • 1.50-6.00 0.15-0.45
CNMG 190612-TF 19.30 19.05 6.35 1.20 • 1.50-6.50 0.20-0.55
CNGG 120408-TF 12.96 12.70 4.76 0.80 • 1.00-4.00 0.12-0.35
CNGG 190612-TF 19.30 19.05 6.35 1.20 • 2.00-9.00 0.30-0.70
• For user guide, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) • C#-PCLNR/L-X-JHP (27) • DCBNR/L (28)
• DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MCLNR/L (24) • MULNR/L-12MW
(18) • PCBNR/L (25) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) • PCLNR/L-X-JHP (26) • PCLNR/L-X-JHP-MC (26) •
S-DCLNR/L (79) • S-MULNR-MW (85) • A/S-PCLNR/L-X/G (82)


75° 95°
80°
CNMG-GN 95°
Double-Sided 80° Rhombic
Inserts for General Applications di
95º 75°
r l S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC530N
IC8350
IC6025
IC8250

IC6015
IC8150


IC5010

IC5005
IC20N
IC830


IC428

IC807
IC907
IC28


IC20


ap f
Designation l di S r (mm) (mm/rev)
CNMG 120404-GN 12.90 12.70 4.76 0.40 • • • • • • 1.00-4.00 0.14-0.40
CNMG 120408-GN 12.90 12.70 4.76 0.80 • • • • • • • • • • • • • • 1.00-4.50 0.16-0.45
CNMG 120412-GN 12.90 12.70 4.76 1.20 • • • • • • • • 1.50-5.00 0.22-0.50
CNMG 160612-GN 16.12 15.88 6.35 1.20 • • • • 2.00-7.00 0.22-0.60
CNMG 160616-GN 16.12 15.88 6.35 1.60 • 2.00-7.00 0.22-0.75
CNMG 190608-GN 19.30 19.05 6.35 0.80 • 1.50-8.00 0.20-0.70
CNMG 190612-GN 19.30 19.05 6.35 1.20 • • • • 2.00-7.98 0.25-0.70
• For user guide, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) • C#-PCLNR/L-X-JHP (27) • DCBNR/L (28)
• DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MCLNR/L (24) • MULNR/L-12MW
(18) • PCBNR/L (25) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) • PCLNR/L-X-JHP (26) • PCLNR/L-X-JHP-MC (26) •
S-DCLNR/L (79) • S-MULNR-MW (85) • A/S-PCLNR/L-X/G (82)


126 ISCAR
