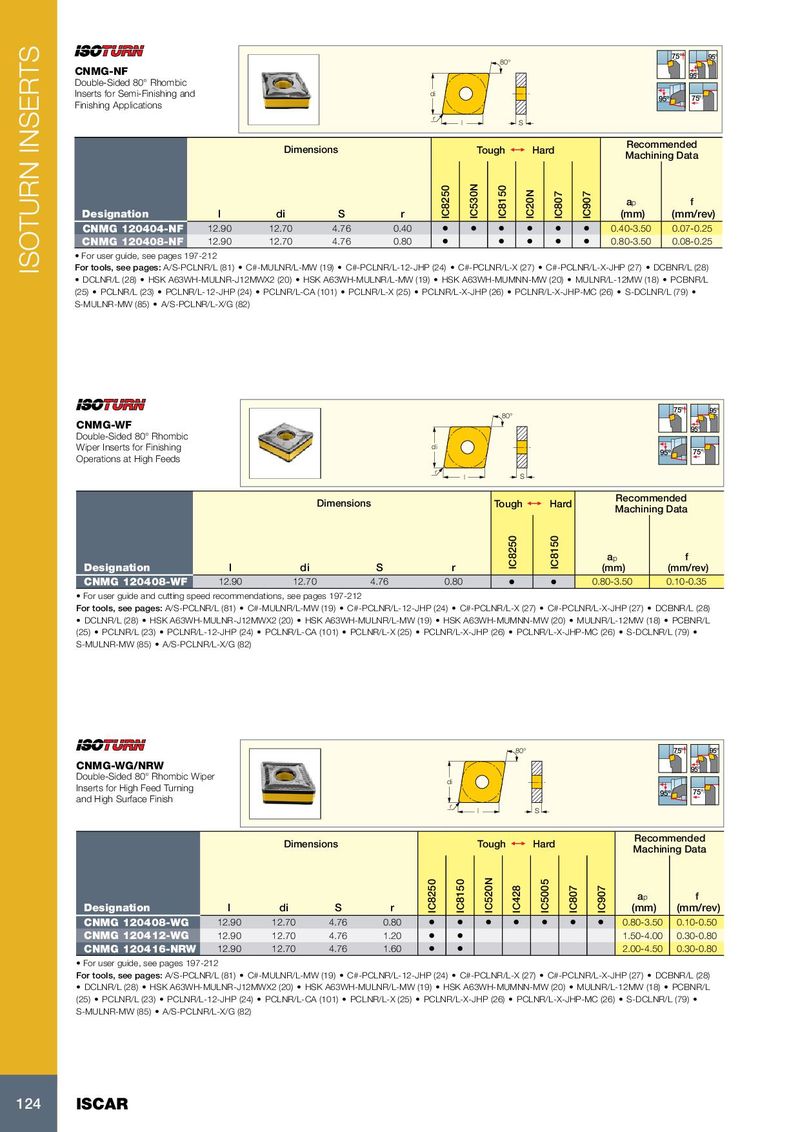

Каталог Iscar токарный инструмент 2017 - страница 128
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
CNMG-NF
Inserts for Semi-Finishing and Finishing Applications
di
r
Dimensions
l
S Tough 1 Hard
95º 75°
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||||||
| CNMG 120404-NF | 12.90 | 12.70 | 4.76 | 0.40 | • | • | • | • | • | • | 0.40-3.50 | 0.07-0.25 |
| CNMG 120408-NF | 12.90 | 12.70 | 4.76 | 0.80 | • | • | • | • | • | 0.80-3.50 | 0.08-0.25 |
- For user guide, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) C#-MULNR/L-MW (19) C#-PCLNR/L-12-JHP (24) C#-PCLNR/L-X (27) C#-PCLNR/L-X-JHP (27) DCBNR/L (28)
- DCLNR/L (28)
- HSK A63WH-MULNR-J12MWX2 (20)
- HSK A63WH-MULNR/L-MW (19)
- HSK A63WH-MUMNN-MW (20)
- MULNR/L-12MW (18)
- PCBNR/L
(25) PCLNR/L (23) PCLNR/L-12-JHP (24) PCLNR/L-CA (101) PCLNR/L-X (25) PCLNR/L-X-JHP (26) PCLNR/L-X-JHP-MC (26) S-DCLNR/L (79) S-MULNR-MW (85) A/S-PCLNR/L-X/G (82)
CNMG-WF
Double-Sided 80° Rhombic Wiper Inserts for Finishing Operations at High Feeds
Dimensions
di r
l
80°
S Tough 1 Hard
75° 95° 95° 95º 75°
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||
| CNMG 120408-WF | 12.90 | 12.70 | 4.76 | 0.80 | • | • | 0.80-3.50 | 0.10-0.35 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) C#-MULNR/L-MW (19) C#-PCLNR/L-12-JHP (24) C#-PCLNR/L-X (27) C#-PCLNR/L-X-JHP (27) DCBNR/L (28)
- DCLNR/L (28)
- HSK A63WH-MULNR-J12MWX2 (20)
- HSK A63WH-MULNR/L-MW (19)
- HSK A63WH-MUMNN-MW (20)
- MULNR/L-12MW (18)
- PCBNR/L
(25) PCLNR/L (23) PCLNR/L-12-JHP (24) PCLNR/L-CA (101) PCLNR/L-X (25) PCLNR/L-X-JHP (26) PCLNR/L-X-JHP-MC (26) S-DCLNR/L (79) S-MULNR-MW (85) A/S-PCLNR/L-X/G (82)
CNMG-WG/NRW
Double-Sided 80° Rhombic Wiper Inserts for High Feed Turning and High Surface Finish
Dimensions
di r
80°
l S
Tough 1 Hard
75° 95° 95° 95º 75°
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | |||||||
| CNMG 120408-WG | 12.90 | 12.70 | 4.76 | 0.80 | • | • | • | • | • | • | • | 0.80-3.50 | 0.10-0.50 |
| CNMG 120412-WG | 12.90 | 12.70 | 4.76 | 1.20 | • | • | 1.50-4.00 | 0.30-0.80 | |||||
| CNMG 120416-NRW | 12.90 | 12.70 | 4.76 | 1.60 | • | • | 2.00-4.50 | 0.30-0.80 |
- For user guide, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) C#-MULNR/L-MW (19) C#-PCLNR/L-12-JHP (24) C#-PCLNR/L-X (27) C#-PCLNR/L-X-JHP (27) DCBNR/L (28)
- DCLNR/L (28)
- HSK A63WH-MULNR-J12MWX2 (20)
- HSK A63WH-MULNR/L-MW (19)
- HSK A63WH-MUMNN-MW (20)
- MULNR/L-12MW (18)
- PCBNR/L
(25) PCLNR/L (23) PCLNR/L-12-JHP (24) PCLNR/L-CA (101) PCLNR/L-X (25) PCLNR/L-X-JHP (26) PCLNR/L-X-JHP-MC (26) S-DCLNR/L (79) S-MULNR-MW (85) A/S-PCLNR/L-X/G (82)
