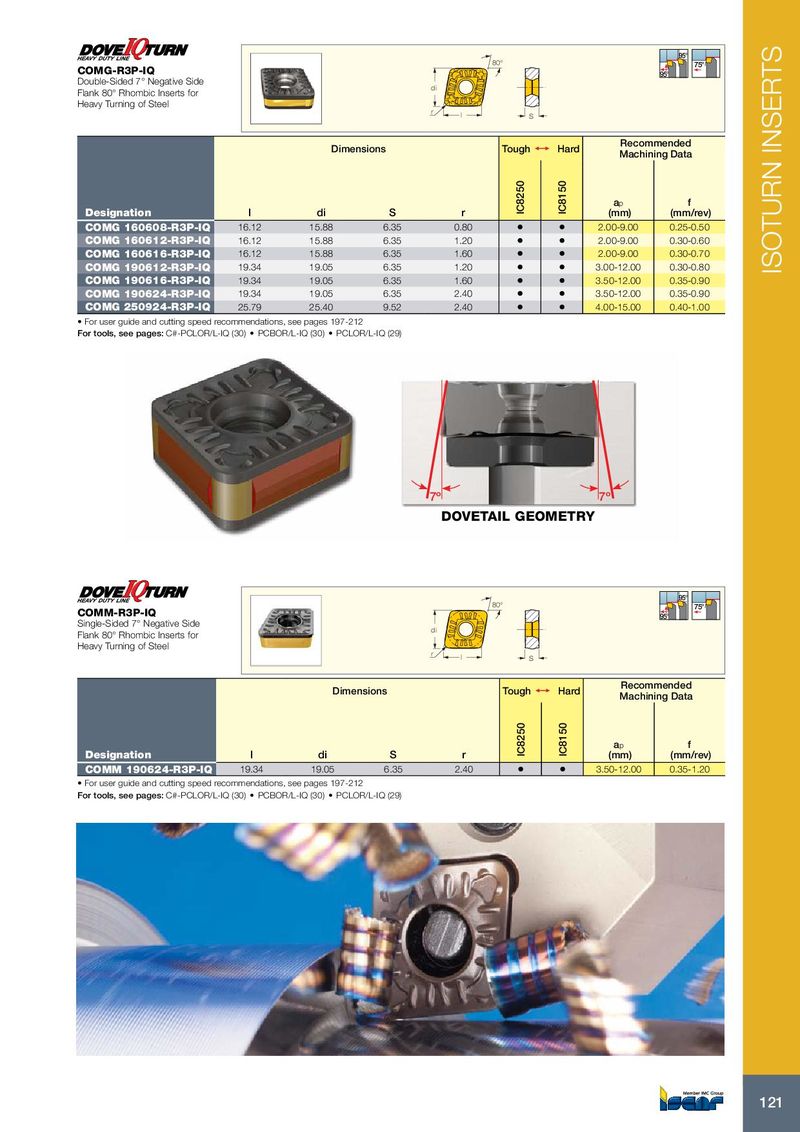

Каталог Iscar токарный инструмент 2017 - страница 125

ISOTURN INSERTS
95°
80° 75°
COMG-R3P-IQ 95°
Double-Sided 7° Negative Side
di
Flank 80° Rhombic Inserts for
Heavy Turning of Steel
r
l S

Recommended
Dimensions Tough 1 Hard
Machining Data


IC8250

IC8150
ap f
Designation l di S r (mm) (mm/rev)
COMG 160608-R3P-IQ 16.12 15.88 6.35 0.80 • • 2.00-9.00 0.25-0.50
COMG 160612-R3P-IQ 16.12 15.88 6.35 1.20 • • 2.00-9.00 0.30-0.60
COMG 160616-R3P-IQ 16.12 15.88 6.35 1.60 • • 2.00-9.00 0.30-0.70
COMG 190612-R3P-IQ 19.34 19.05 6.35 1.20 • • 3.00-12.00 0.30-0.80
COMG 190616-R3P-IQ 19.34 19.05 6.35 1.60 • • 3.50-12.00 0.35-0.90
COMG 190624-R3P-IQ 19.34 19.05 6.35 2.40 • • 3.50-12.00 0.35-0.90
COMG 250924-R3P-IQ 25.79 25.40 9.52 2.40 • • 4.00-15.00 0.40-1.00
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: C#-PCLOR/L-IQ (30) • PCBOR/L-IQ (30) • PCLOR/L-IQ (29)


7º 7º
DOVETAIL GEOMETRY


95°
80° 75°
COMM-R3P-IQ 95°
Single-Sided 7° Negative Side
di
Flank 80° Rhombic Inserts for
Heavy Turning of Steel
r
l S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC8250

IC8150


ap f
Designation l di S r (mm) (mm/rev)
COMM 190624-R3P-IQ 19.34 19.05 6.35 2.40 • • 3.50-12.00 0.35-1.20
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: C#-PCLOR/L-IQ (30) • PCBOR/L-IQ (30) • PCLOR/L-IQ (29)


121
