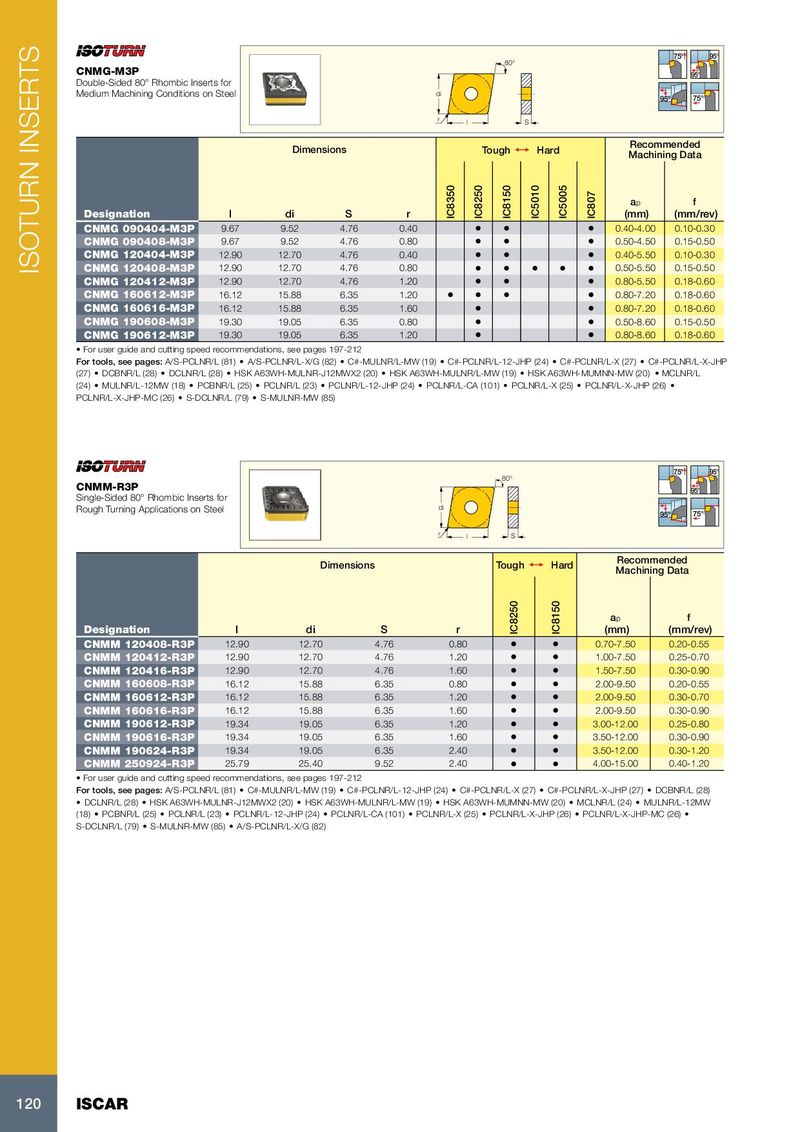

ISOTURN INSERTS
75° 95°
80°
CNMG-M3P 95°
Double-Sided 80° Rhombic Inserts for
Medium Machining Conditions on Steel di
95º 75°
r l S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC8350
IC8250
IC8150
IC5010
IC5005
IC807
ap f
Designation l di S r (mm) (mm/rev)
CNMG 090404-M3P 9.67 9.52 4.76 0.40 • • • 0.40-4.00 0.10-0.30
CNMG 090408-M3P 9.67 9.52 4.76 0.80 • • • 0.50-4.50 0.15-0.50
CNMG 120404-M3P 12.90 12.70 4.76 0.40 • • • 0.40-5.50 0.10-0.30
CNMG 120408-M3P 12.90 12.70 4.76 0.80 • • • • • 0.50-5.50 0.15-0.50
CNMG 120412-M3P 12.90 12.70 4.76 1.20 • • • 0.80-5.50 0.18-0.60
CNMG 160612-M3P 16.12 15.88 6.35 1.20 • • • • 0.80-7.20 0.18-0.60
CNMG 160616-M3P 16.12 15.88 6.35 1.60 • • 0.80-7.20 0.18-0.60
CNMG 190608-M3P 19.30 19.05 6.35 0.80 • • 0.50-8.60 0.15-0.50
CNMG 190612-M3P 19.30 19.05 6.35 1.20 • • 0.80-8.60 0.18-0.60
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) • A/S-PCLNR/L-X/G (82) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) • C#-PCLNR/L-X-JHP
(27) • DCBNR/L (28) • DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MCLNR/L
(24) • MULNR/L-12MW (18) • PCBNR/L (25) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) • PCLNR/L-X-JHP (26) •
PCLNR/L-X-JHP-MC (26) • S-DCLNR/L (79) • S-MULNR-MW (85)
75° 95°
80°
CNMM-R3P 95°
Single-Sided 80° Rhombic Inserts for
Rough Turning Applications on Steel di
95º 75°
r l S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC8250
IC8150
ap f
Designation l di S r (mm) (mm/rev)
CNMM 120408-R3P 12.90 12.70 4.76 0.80 • • 0.70-7.50 0.20-0.55
CNMM 120412-R3P 12.90 12.70 4.76 1.20 • • 1.00-7.50 0.25-0.70
CNMM 120416-R3P 12.90 12.70 4.76 1.60 • • 1.50-7.50 0.30-0.90
CNMM 160608-R3P 16.12 15.88 6.35 0.80 • • 2.00-9.50 0.20-0.55
CNMM 160612-R3P 16.12 15.88 6.35 1.20 • • 2.00-9.50 0.30-0.70
CNMM 160616-R3P 16.12 15.88 6.35 1.60 • • 2.00-9.50 0.30-0.90
CNMM 190612-R3P 19.34 19.05 6.35 1.20 • • 3.00-12.00 0.25-0.80
CNMM 190616-R3P 19.34 19.05 6.35 1.60 • • 3.50-12.00 0.30-0.90
CNMM 190624-R3P 19.34 19.05 6.35 2.40 • • 3.50-12.00 0.30-1.20
CNMM 250924-R3P 25.79 25.40 9.52 2.40 • • 4.00-15.00 0.40-1.20
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) • C#-PCLNR/L-X-JHP (27) • DCBNR/L (28)
• DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MCLNR/L (24) • MULNR/L-12MW
(18) • PCBNR/L (25) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) • PCLNR/L-X-JHP (26) • PCLNR/L-X-JHP-MC (26) •
S-DCLNR/L (79) • S-MULNR-MW (85) • A/S-PCLNR/L-X/G (82)
120 ISCAR
