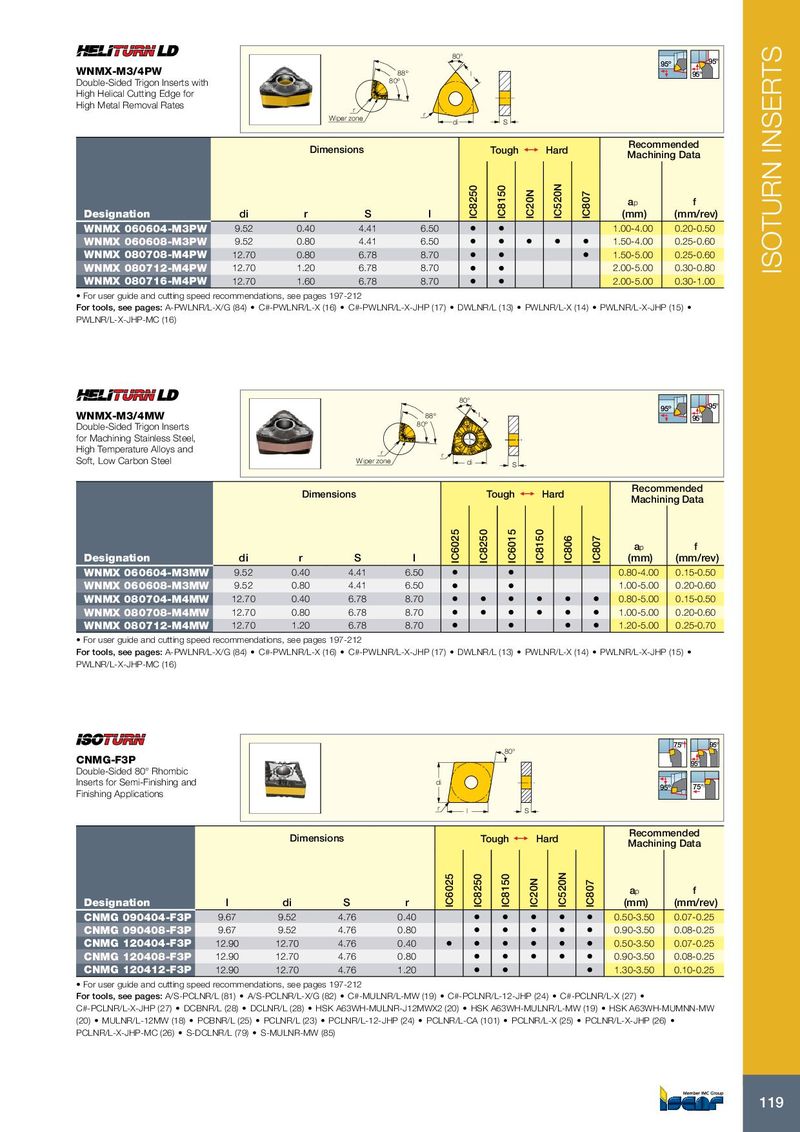

ISOTURN INSERTS
80°
95º 95°
WNMX-M3/4PW 88º l 95°
Double-Sided Trigon Inserts with 80º
High Helical Cutting Edge for
High Metal Removal Rates r
r
Wiper zone
di S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC520N
IC8250
IC8150
IC20N
IC807
ap f
Designation di r S l (mm) (mm/rev)
WNMX 060604-M3PW 9.52 0.40 4.41 6.50 • • 1.00-4.00 0.20-0.50
WNMX 060608-M3PW 9.52 0.80 4.41 6.50 • • • • • 1.50-4.00 0.25-0.60
WNMX 080708-M4PW 12.70 0.80 6.78 8.70 • • • 1.50-5.00 0.25-0.60
WNMX 080712-M4PW 12.70 1.20 6.78 8.70 • • 2.00-5.00 0.30-0.80
WNMX 080716-M4PW 12.70 1.60 6.78 8.70 • • 2.00-5.00 0.30-1.00
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PWLNR/L-X/G (84) • C#-PWLNR/L-X (16) • C#-PWLNR/L-X-JHP (17) • DWLNR/L (13) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) •
PWLNR/L-X-JHP-MC (16)
80°
95º 95°
WNMX-M3/4MW 88º l
95°
80º
Double-Sided Trigon Inserts
for Machining Stainless Steel,
High Temperature Alloys and r r
Soft, Low Carbon Steel Wiper zone di S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC8250
IC6015
IC8150
IC806
IC807
ap f
Designation di r S l (mm) (mm/rev)
WNMX 060604-M3MW 9.52 0.40 4.41 6.50 • • 0.80-4.00 0.15-0.50
WNMX 060608-M3MW 9.52 0.80 4.41 6.50 • • 1.00-5.00 0.20-0.60
WNMX 080704-M4MW 12.70 0.40 6.78 8.70 • • • • • • 0.80-5.00 0.15-0.50
WNMX 080708-M4MW 12.70 0.80 6.78 8.70 • • • • • • 1.00-5.00 0.20-0.60
WNMX 080712-M4MW 12.70 1.20 6.78 8.70 • • • • 1.20-5.00 0.25-0.70
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PWLNR/L-X/G (84) • C#-PWLNR/L-X (16) • C#-PWLNR/L-X-JHP (17) • DWLNR/L (13) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) •
PWLNR/L-X-JHP-MC (16)
75° 95°
80°
CNMG-F3P 95°
Double-Sided 80° Rhombic
Inserts for Semi-Finishing and di
95º 75°
Finishing Applications
r l S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC520N
IC6025
IC8250
IC8150
IC20N
IC807
ap f
Designation l di S r (mm) (mm/rev)
CNMG 090404-F3P 9.67 9.52 4.76 0.40 • • • • • 0.50-3.50 0.07-0.25
CNMG 090408-F3P 9.67 9.52 4.76 0.80 • • • • • 0.90-3.50 0.08-0.25
CNMG 120404-F3P 12.90 12.70 4.76 0.40 • • • • • • 0.50-3.50 0.07-0.25
CNMG 120408-F3P 12.90 12.70 4.76 0.80 • • • • • 0.90-3.50 0.08-0.25
CNMG 120412-F3P 12.90 12.70 4.76 1.20 • • • 1.30-3.50 0.10-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) • A/S-PCLNR/L-X/G (82) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) •
C#-PCLNR/L-X-JHP (27) • DCBNR/L (28) • DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW
(20) • MULNR/L-12MW (18) • PCBNR/L (25) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) • PCLNR/L-X-JHP (26) •
PCLNR/L-X-JHP-MC (26) • S-DCLNR/L (79) • S-MULNR-MW (85)
119
80°
95º 95°
WNMX-M3/4PW 88º l 95°
Double-Sided Trigon Inserts with 80º
High Helical Cutting Edge for
High Metal Removal Rates r
r
Wiper zone
di S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC520N
IC8250
IC8150
IC20N
IC807
ap f
Designation di r S l (mm) (mm/rev)
WNMX 060604-M3PW 9.52 0.40 4.41 6.50 • • 1.00-4.00 0.20-0.50
WNMX 060608-M3PW 9.52 0.80 4.41 6.50 • • • • • 1.50-4.00 0.25-0.60
WNMX 080708-M4PW 12.70 0.80 6.78 8.70 • • • 1.50-5.00 0.25-0.60
WNMX 080712-M4PW 12.70 1.20 6.78 8.70 • • 2.00-5.00 0.30-0.80
WNMX 080716-M4PW 12.70 1.60 6.78 8.70 • • 2.00-5.00 0.30-1.00
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PWLNR/L-X/G (84) • C#-PWLNR/L-X (16) • C#-PWLNR/L-X-JHP (17) • DWLNR/L (13) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) •
PWLNR/L-X-JHP-MC (16)
80°
95º 95°
WNMX-M3/4MW 88º l
95°
80º
Double-Sided Trigon Inserts
for Machining Stainless Steel,
High Temperature Alloys and r r
Soft, Low Carbon Steel Wiper zone di S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC8250
IC6015
IC8150
IC806
IC807
ap f
Designation di r S l (mm) (mm/rev)
WNMX 060604-M3MW 9.52 0.40 4.41 6.50 • • 0.80-4.00 0.15-0.50
WNMX 060608-M3MW 9.52 0.80 4.41 6.50 • • 1.00-5.00 0.20-0.60
WNMX 080704-M4MW 12.70 0.40 6.78 8.70 • • • • • • 0.80-5.00 0.15-0.50
WNMX 080708-M4MW 12.70 0.80 6.78 8.70 • • • • • • 1.00-5.00 0.20-0.60
WNMX 080712-M4MW 12.70 1.20 6.78 8.70 • • • • 1.20-5.00 0.25-0.70
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PWLNR/L-X/G (84) • C#-PWLNR/L-X (16) • C#-PWLNR/L-X-JHP (17) • DWLNR/L (13) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) •
PWLNR/L-X-JHP-MC (16)
75° 95°
80°
CNMG-F3P 95°
Double-Sided 80° Rhombic
Inserts for Semi-Finishing and di
95º 75°
Finishing Applications
r l S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC520N
IC6025
IC8250
IC8150
IC20N
IC807
ap f
Designation l di S r (mm) (mm/rev)
CNMG 090404-F3P 9.67 9.52 4.76 0.40 • • • • • 0.50-3.50 0.07-0.25
CNMG 090408-F3P 9.67 9.52 4.76 0.80 • • • • • 0.90-3.50 0.08-0.25
CNMG 120404-F3P 12.90 12.70 4.76 0.40 • • • • • • 0.50-3.50 0.07-0.25
CNMG 120408-F3P 12.90 12.70 4.76 0.80 • • • • • 0.90-3.50 0.08-0.25
CNMG 120412-F3P 12.90 12.70 4.76 1.20 • • • 1.30-3.50 0.10-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) • A/S-PCLNR/L-X/G (82) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) •
C#-PCLNR/L-X-JHP (27) • DCBNR/L (28) • DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW
(20) • MULNR/L-12MW (18) • PCBNR/L (25) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) • PCLNR/L-X-JHP (26) •
PCLNR/L-X-JHP-MC (26) • S-DCLNR/L (79) • S-MULNR-MW (85)
119
