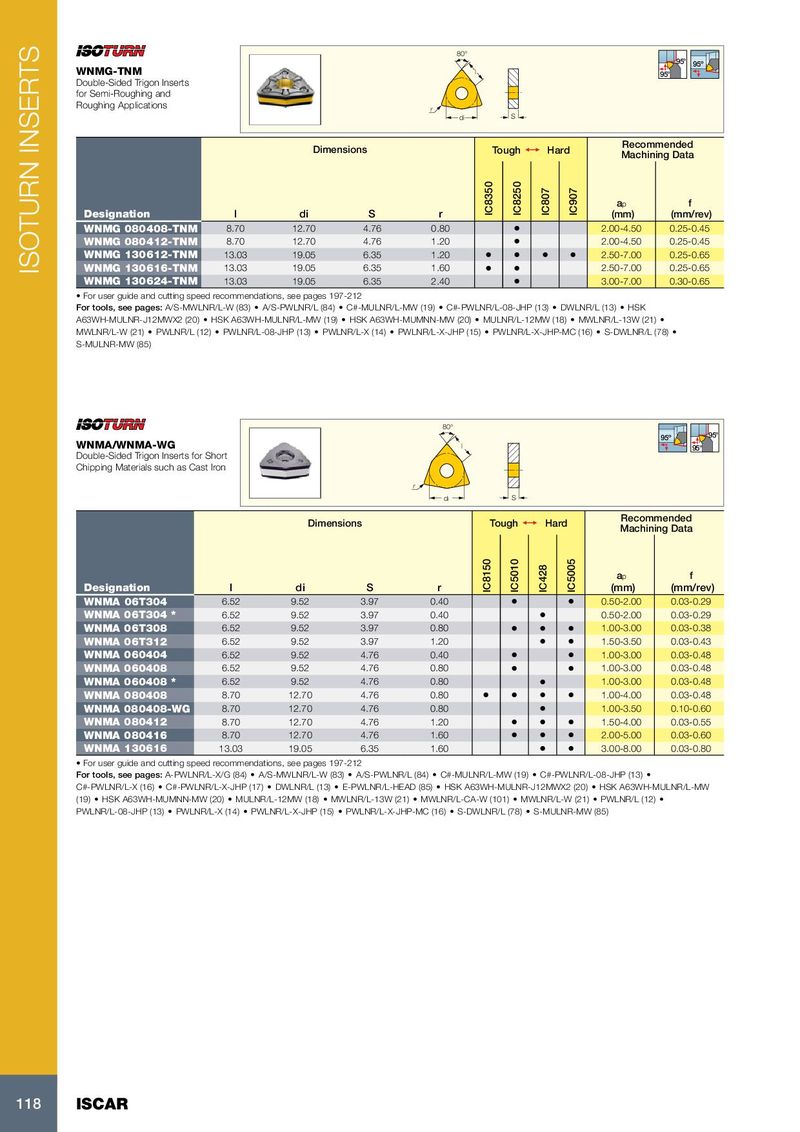

Каталог Iscar токарный инструмент 2017 - страница 122

ISOTURN INSERTS
80°
95° 95º
WNMG-TNM l 95°
Double-Sided Trigon Inserts
for Semi-Roughing and
Roughing Applications r
di S

Recommended
Dimensions Tough 1 Hard
Machining Data


IC8350
IC8250
IC807
IC907
ap f
Designation l di S r (mm) (mm/rev)
WNMG 080408-TNM 8.70 12.70 4.76 0.80 • 2.00-4.50 0.25-0.45
WNMG 080412-TNM 8.70 12.70 4.76 1.20 • 2.00-4.50 0.25-0.45
WNMG 130612-TNM 13.03 19.05 6.35 1.20 • • • • 2.50-7.00 0.25-0.65
WNMG 130616-TNM 13.03 19.05 6.35 1.60 • • 2.50-7.00 0.25-0.65
WNMG 130624-TNM 13.03 19.05 6.35 2.40 • 3.00-7.00 0.30-0.65
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-MWLNR/L-W (83) • A/S-PWLNR/L (84) • C#-MULNR/L-MW (19) • C#-PWLNR/L-08-JHP (13) • DWLNR/L (13) • HSK
A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • MWLNR/L-13W (21) •
MWLNR/L-W (21) • PWLNR/L (12) • PWLNR/L-08-JHP (13) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (78) •
S-MULNR-MW (85)


80°
95º 95°
WNMA/WNMA-WG l 95°
Double-Sided Trigon Inserts for Short
Chipping Materials such as Cast Iron
r
di S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC8150
IC5010


IC5005
IC428

ap f
Designation l di S r (mm) (mm/rev)
WNMA 06T304 6.52 9.52 3.97 0.40 • • 0.50-2.00 0.03-0.29
WNMA 06T304 * 6.52 9.52 3.97 0.40 • 0.50-2.00 0.03-0.29
WNMA 06T308 6.52 9.52 3.97 0.80 • • • 1.00-3.00 0.03-0.38
WNMA 06T312 6.52 9.52 3.97 1.20 • • 1.50-3.50 0.03-0.43
WNMA 060404 6.52 9.52 4.76 0.40 • • 1.00-3.00 0.03-0.48
WNMA 060408 6.52 9.52 4.76 0.80 • • 1.00-3.00 0.03-0.48
WNMA 060408 * 6.52 9.52 4.76 0.80 • 1.00-3.00 0.03-0.48
WNMA 080408 8.70 12.70 4.76 0.80 • • • • 1.00-4.00 0.03-0.48
WNMA 080408-WG 8.70 12.70 4.76 0.80 • 1.00-3.50 0.10-0.60
WNMA 080412 8.70 12.70 4.76 1.20 • • • 1.50-4.00 0.03-0.55
WNMA 080416 8.70 12.70 4.76 1.60 • • • 2.00-5.00 0.03-0.60
WNMA 130616 13.03 19.05 6.35 1.60 • • 3.00-8.00 0.03-0.80
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PWLNR/L-X/G (84) • A/S-MWLNR/L-W (83) • A/S-PWLNR/L (84) • C#-MULNR/L-MW (19) • C#-PWLNR/L-08-JHP (13) •
C#-PWLNR/L-X (16) • C#-PWLNR/L-X-JHP (17) • DWLNR/L (13) • E-PWLNR/L-HEAD (85) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW
(19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • MWLNR/L-13W (21) • MWLNR/L-CA-W (101) • MWLNR/L-W (21) • PWLNR/L (12) •
PWLNR/L-08-JHP (13) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (78) • S-MULNR-MW (85)


118 ISCAR
