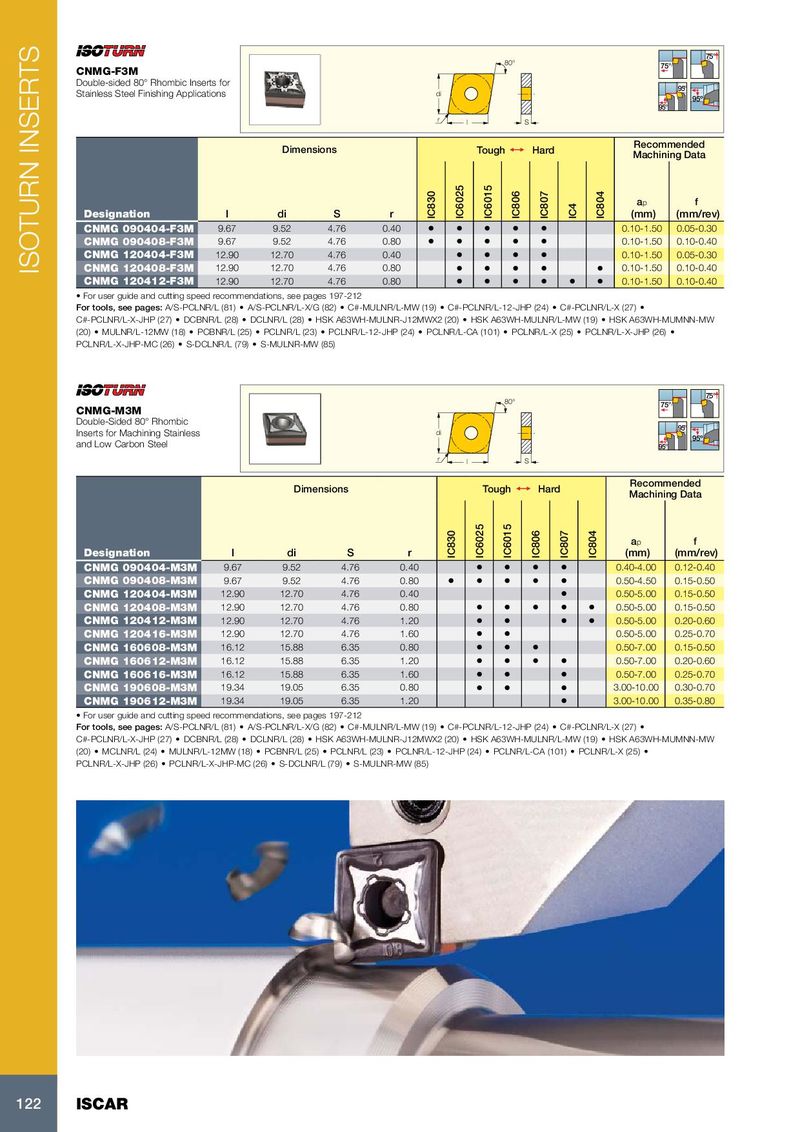

ISOTURN INSERTS
75°
80° 75°
CNMG-F3M
Double-sided 80° Rhombic Inserts for
95°
Stainless Steel Finishing Applications di
95º
95°
r l S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC6015
IC830
IC806
IC807
IC804
ap f
IC4
Designation l di S r (mm) (mm/rev)
CNMG 090404-F3M 9.67 9.52 4.76 0.40 • • • • • 0.10-1.50 0.05-0.30
CNMG 090408-F3M 9.67 9.52 4.76 0.80 • • • • • 0.10-1.50 0.10-0.40
CNMG 120404-F3M 12.90 12.70 4.76 0.40 • • • • 0.10-1.50 0.05-0.30
CNMG 120408-F3M 12.90 12.70 4.76 0.80 • • • • • 0.10-1.50 0.10-0.40
CNMG 120412-F3M 12.90 12.70 4.76 0.80 • • • • • • 0.10-1.50 0.10-0.40
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) • A/S-PCLNR/L-X/G (82) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) •
C#-PCLNR/L-X-JHP (27) • DCBNR/L (28) • DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW
(20) • MULNR/L-12MW (18) • PCBNR/L (25) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) • PCLNR/L-X-JHP (26) •
PCLNR/L-X-JHP-MC (26) • S-DCLNR/L (79) • S-MULNR-MW (85)
75°
80° 75°
CNMG-M3M
Double-Sided 80° Rhombic
95°
Inserts for Machining Stainless di
95º
and Low Carbon Steel 95°
r l S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC6015
IC830
IC806
IC807
IC804
ap f
Designation l di S r (mm) (mm/rev)
CNMG 090404-M3M 9.67 9.52 4.76 0.40 • • • • 0.40-4.00 0.12-0.40
CNMG 090408-M3M 9.67 9.52 4.76 0.80 • • • • • 0.50-4.50 0.15-0.50
CNMG 120404-M3M 12.90 12.70 4.76 0.40 • 0.50-5.00 0.15-0.50
CNMG 120408-M3M 12.90 12.70 4.76 0.80 • • • • • 0.50-5.00 0.15-0.50
CNMG 120412-M3M 12.90 12.70 4.76 1.20 • • • • 0.50-5.00 0.20-0.60
CNMG 120416-M3M 12.90 12.70 4.76 1.60 • • 0.50-5.00 0.25-0.70
CNMG 160608-M3M 16.12 15.88 6.35 0.80 • • • 0.50-7.00 0.15-0.50
CNMG 160612-M3M 16.12 15.88 6.35 1.20 • • • • 0.50-7.00 0.20-0.60
CNMG 160616-M3M 16.12 15.88 6.35 1.60 • • • 0.50-7.00 0.25-0.70
CNMG 190608-M3M 19.34 19.05 6.35 0.80 • • • 3.00-10.00 0.30-0.70
CNMG 190612-M3M 19.34 19.05 6.35 1.20 • 3.00-10.00 0.35-0.80
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) • A/S-PCLNR/L-X/G (82) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) •
C#-PCLNR/L-X-JHP (27) • DCBNR/L (28) • DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW
(20) • MCLNR/L (24) • MULNR/L-12MW (18) • PCBNR/L (25) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) •
PCLNR/L-X-JHP (26) • PCLNR/L-X-JHP-MC (26) • S-DCLNR/L (79) • S-MULNR-MW (85)
122 ISCAR
75°
80° 75°
CNMG-F3M
Double-sided 80° Rhombic Inserts for
95°
Stainless Steel Finishing Applications di
95º
95°
r l S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC6015
IC830
IC806
IC807
IC804
ap f
IC4
Designation l di S r (mm) (mm/rev)
CNMG 090404-F3M 9.67 9.52 4.76 0.40 • • • • • 0.10-1.50 0.05-0.30
CNMG 090408-F3M 9.67 9.52 4.76 0.80 • • • • • 0.10-1.50 0.10-0.40
CNMG 120404-F3M 12.90 12.70 4.76 0.40 • • • • 0.10-1.50 0.05-0.30
CNMG 120408-F3M 12.90 12.70 4.76 0.80 • • • • • 0.10-1.50 0.10-0.40
CNMG 120412-F3M 12.90 12.70 4.76 0.80 • • • • • • 0.10-1.50 0.10-0.40
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) • A/S-PCLNR/L-X/G (82) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) •
C#-PCLNR/L-X-JHP (27) • DCBNR/L (28) • DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW
(20) • MULNR/L-12MW (18) • PCBNR/L (25) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) • PCLNR/L-X-JHP (26) •
PCLNR/L-X-JHP-MC (26) • S-DCLNR/L (79) • S-MULNR-MW (85)
75°
80° 75°
CNMG-M3M
Double-Sided 80° Rhombic
95°
Inserts for Machining Stainless di
95º
and Low Carbon Steel 95°
r l S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC6015
IC830
IC806
IC807
IC804
ap f
Designation l di S r (mm) (mm/rev)
CNMG 090404-M3M 9.67 9.52 4.76 0.40 • • • • 0.40-4.00 0.12-0.40
CNMG 090408-M3M 9.67 9.52 4.76 0.80 • • • • • 0.50-4.50 0.15-0.50
CNMG 120404-M3M 12.90 12.70 4.76 0.40 • 0.50-5.00 0.15-0.50
CNMG 120408-M3M 12.90 12.70 4.76 0.80 • • • • • 0.50-5.00 0.15-0.50
CNMG 120412-M3M 12.90 12.70 4.76 1.20 • • • • 0.50-5.00 0.20-0.60
CNMG 120416-M3M 12.90 12.70 4.76 1.60 • • 0.50-5.00 0.25-0.70
CNMG 160608-M3M 16.12 15.88 6.35 0.80 • • • 0.50-7.00 0.15-0.50
CNMG 160612-M3M 16.12 15.88 6.35 1.20 • • • • 0.50-7.00 0.20-0.60
CNMG 160616-M3M 16.12 15.88 6.35 1.60 • • • 0.50-7.00 0.25-0.70
CNMG 190608-M3M 19.34 19.05 6.35 0.80 • • • 3.00-10.00 0.30-0.70
CNMG 190612-M3M 19.34 19.05 6.35 1.20 • 3.00-10.00 0.35-0.80
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) • A/S-PCLNR/L-X/G (82) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) •
C#-PCLNR/L-X-JHP (27) • DCBNR/L (28) • DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW
(20) • MCLNR/L (24) • MULNR/L-12MW (18) • PCBNR/L (25) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) •
PCLNR/L-X-JHP (26) • PCLNR/L-X-JHP-MC (26) • S-DCLNR/L (79) • S-MULNR-MW (85)
122 ISCAR
