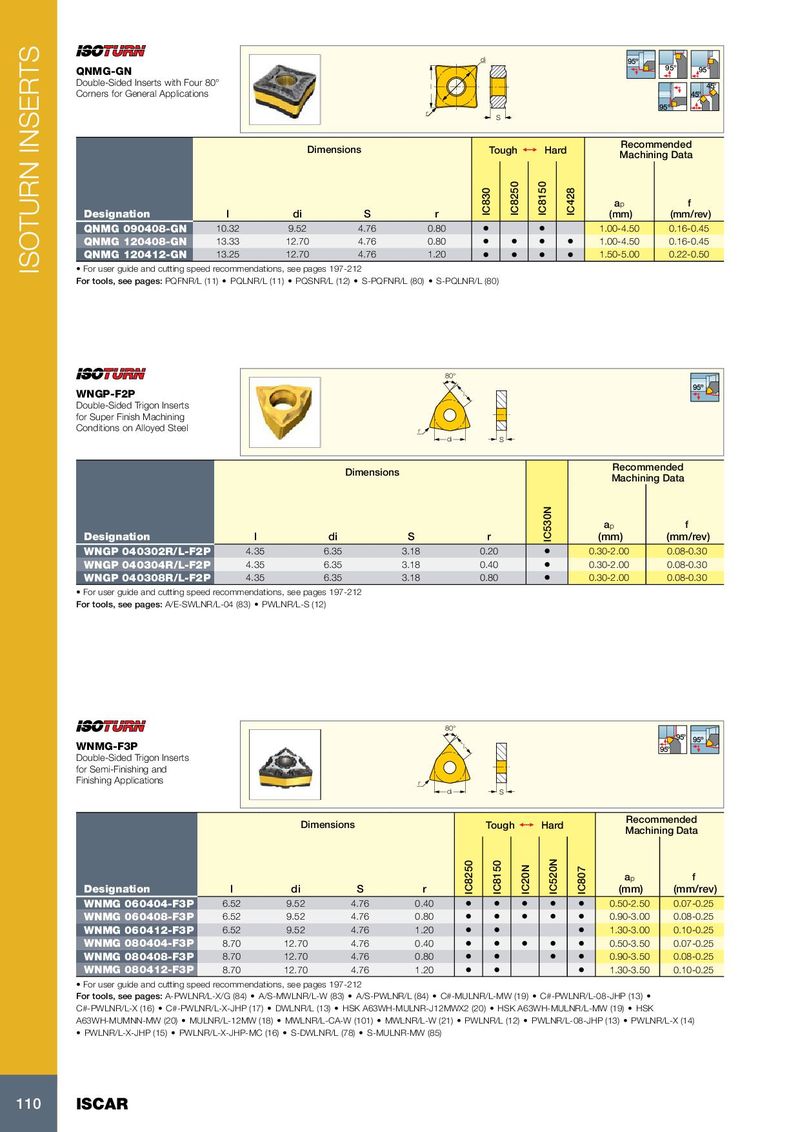

Каталог Iscar токарный инструмент 2017 - страница 114

ISOTURN INSERTS
di 95º
95°
QNMG-GN 95°
Double-Sided Inserts with Four 80° l 45°
Corners for General Applications 45°
95º
r
S

Recommended
Dimensions Tough 1 Hard
Machining Data


IC8250
IC8150
IC830


IC428
ap f
Designation l di S r (mm) (mm/rev)
QNMG 090408-GN 10.32 9.52 4.76 0.80 • • 1.00-4.50 0.16-0.45
QNMG 120408-GN 13.33 12.70 4.76 0.80 • • • • 1.00-4.50 0.16-0.45
QNMG 120412-GN 13.25 12.70 4.76 1.20 • • • • 1.50-5.00 0.22-0.50
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: PQFNR/L (11) • PQLNR/L (11) • PQSNR/L (12) • S-PQFNR/L (80) • S-PQLNR/L (80)


80°
95º
WNGP-F2P l
Double-Sided Trigon Inserts
for Super Finish Machining
Conditions on Alloyed Steel r
di S

Recommended
Dimensions
Machining Data


IC530N
ap f
Designation l di S r (mm) (mm/rev)
WNGP 040302R/L-F2P 4.35 6.35 3.18 0.20 • 0.30-2.00 0.08-0.30
WNGP 040304R/L-F2P 4.35 6.35 3.18 0.40 • 0.30-2.00 0.08-0.30
WNGP 040308R/L-F2P 4.35 6.35 3.18 0.80 • 0.30-2.00 0.08-0.30
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/E-SWLNR/L-04 (83) • PWLNR/L-S (12)


80°
95° 95º
WNMG-F3P l 95°
Double-Sided Trigon Inserts
for Semi-Finishing and
Finishing Applications r
di S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC520N
IC8250
IC8150
IC20N


IC807


ap f
Designation l di S r (mm) (mm/rev)
WNMG 060404-F3P 6.52 9.52 4.76 0.40 • • • • • 0.50-2.50 0.07-0.25
WNMG 060408-F3P 6.52 9.52 4.76 0.80 • • • • • 0.90-3.00 0.08-0.25
WNMG 060412-F3P 6.52 9.52 4.76 1.20 • • • 1.30-3.00 0.10-0.25
WNMG 080404-F3P 8.70 12.70 4.76 0.40 • • • • • 0.50-3.50 0.07-0.25
WNMG 080408-F3P 8.70 12.70 4.76 0.80 • • • • 0.90-3.50 0.08-0.25
WNMG 080412-F3P 8.70 12.70 4.76 1.20 • • • 1.30-3.50 0.10-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PWLNR/L-X/G (84) • A/S-MWLNR/L-W (83) • A/S-PWLNR/L (84) • C#-MULNR/L-MW (19) • C#-PWLNR/L-08-JHP (13) •
C#-PWLNR/L-X (16) • C#-PWLNR/L-X-JHP (17) • DWLNR/L (13) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK
A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • MWLNR/L-CA-W (101) • MWLNR/L-W (21) • PWLNR/L (12) • PWLNR/L-08-JHP (13) • PWLNR/L-X (14)
• PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (78) • S-MULNR-MW (85)


110 ISCAR
