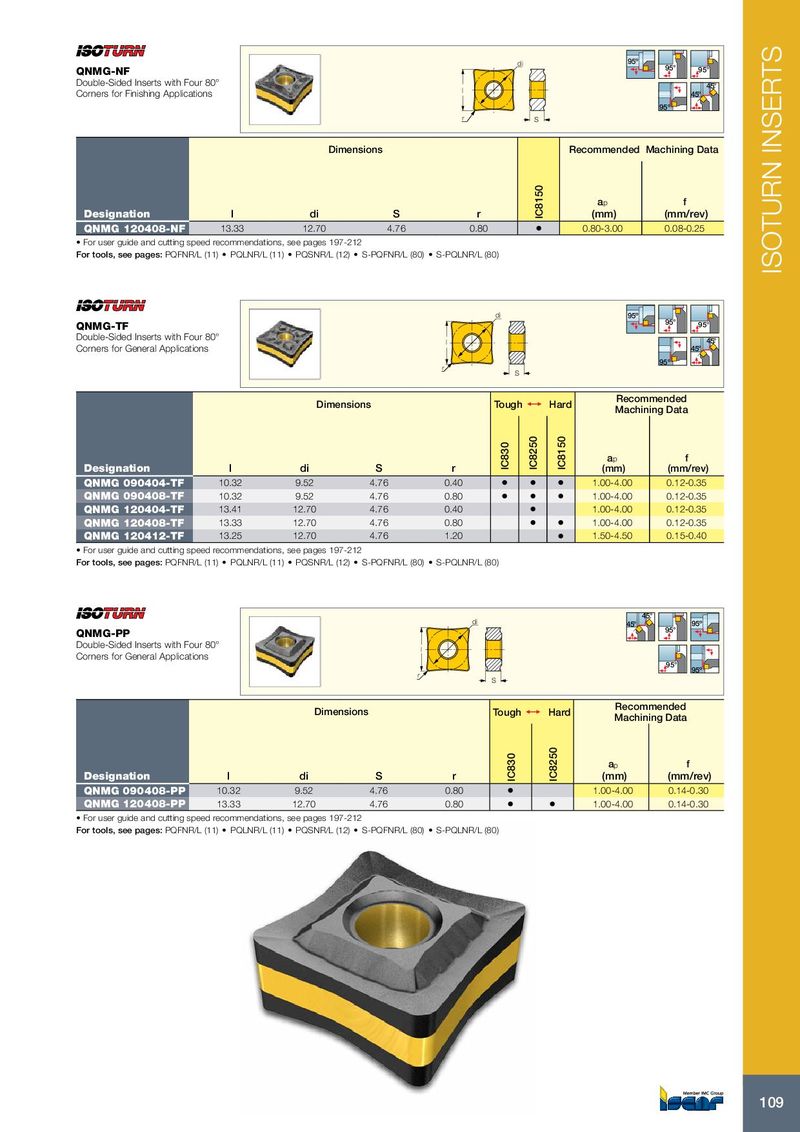

| QNMG-NF | 95° | 95° | |
| Double-Sided Inserts with Four 80° | |||
| Corners for Finishing Applications | l | 45° |
95º r S
Dimensions Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | |
| QNMG 120408-NF | 13.33 | 12.70 | 4.76 | 0.80 | • | 0.80-3.00 | 0.08-0.25 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: PQFNR/L (11) PQLNR/L (11) PQSNR/L (12) S-PQFNR/L (80) S-PQLNR/L (80)
di 95º
QNMG-TF 95° 95°
Double-Sided Inserts with Four 80° l 45° Corners for General Applications 45° 95º
r S
| Dimen | sions | Tough | 1 | Hard | Recom Machin | mended ing Data | |||
| Designation | l | di | S | r | IC830 | IC8250 | IC8150 | ap (mm) | f (mm/rev) |
| QNMG 090404-TF | 10.32 | 9.52 | 4.76 | 0.40 | • | • | • | 1.00-4.00 | 0.12-0.35 |
| QNMG 090408-TF | 10.32 | 9.52 | 4.76 | 0.80 | • | • | • | 1.00-4.00 | 0.12-0.35 |
| QNMG 120404-TF | 13.41 | 12.70 | 4.76 | 0.40 | • | 1.00-4.00 | 0.12-0.35 | ||
| QNMG 120408-TF | 13.33 | 12.70 | 4.76 | 0.80 | • | • | 1.00-4.00 | 0.12-0.35 | |
| QNMG 120412-TF | 13.25 | 12.70 | 4.76 | 1.20 | • | 1.50-4.50 | 0.15-0.40 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: PQFNR/L (11) PQLNR/L (11) PQSNR/L (12) S-PQFNR/L (80) S-PQLNR/L (80)
QNMG-PP
Double-Sided Inserts with Four 80° Corners for General Applications l
r
Dimensions
di
S
Tough 1 Hard
45° 45° 95º 95°
95° 95º
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||
| QNMG 090408-PP | 10.32 | 9.52 | 4.76 | 0.80 | • | 1.00-4.00 | 0.14-0.30 | |
| QNMG 120408-PP | 13.33 | 12.70 | 4.76 | 0.80 | • | • | 1.00-4.00 | 0.14-0.30 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: PQFNR/L (11) PQLNR/L (11) PQSNR/L (12) S-PQFNR/L (80) S-PQLNR/L (80)
