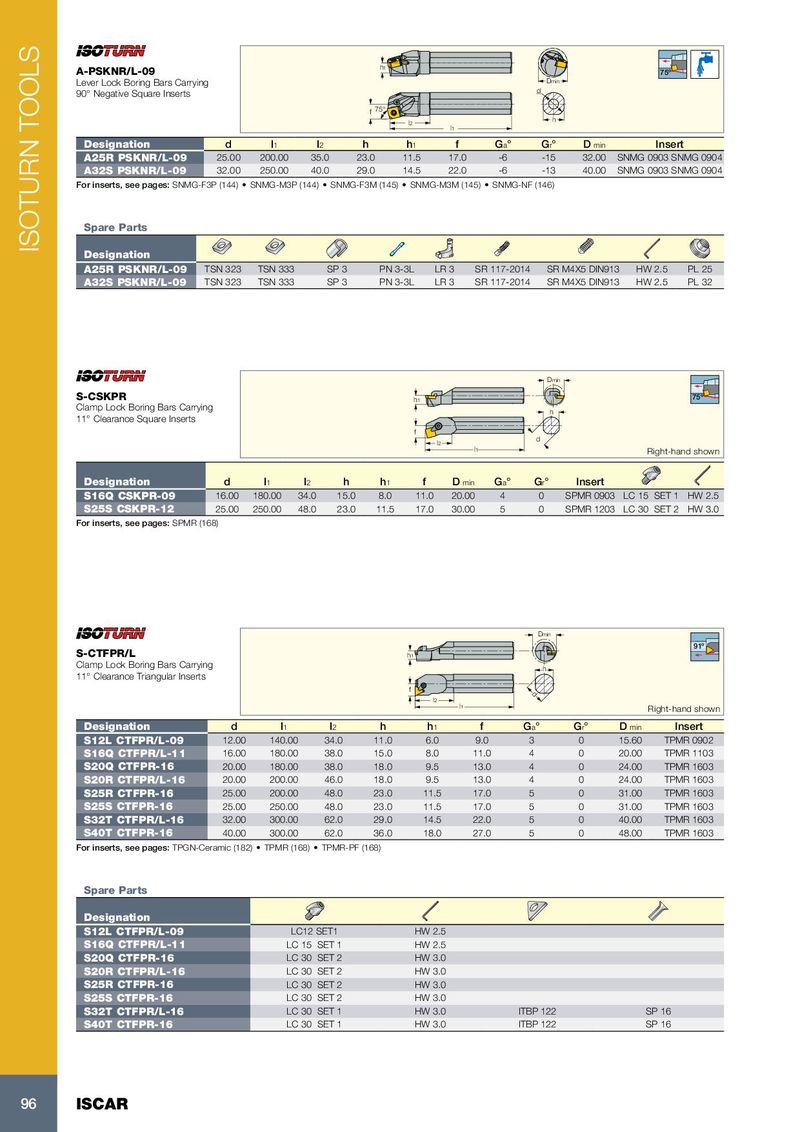

| A-PSKNR/L-09 Lever Lock Boring Bars Carrying | | | | h | 1 | | | Dmin | | 75º |
| 90° Negative Square Inserts | | | | f 75 | ° l2 | l1 | | h d | | |
| Designation | d | l1 | l2 | h | h1 | f | Ga° | Gr° | Dmin | Insert |
| A25R PSKNR/L-09 | 25.00 | 200.00 | 35.0 | 23.0 | 11.5 | 17.0 | -6 | -15 | 32.00 | SNMG 0903 SNMG 0904 |
| A32S PSKNR/L-09 | 32.00 | 250.00 | 40.0 | 29.0 | 14.5 | 22.0 | -6 | -13 | 40.00 | SNMG 0903 SNMG 0904 |
For inserts, see pages: SNMG-F3P (144) • SNMG-M3P (144) • SNMG-F3M (145) • SNMG-M3M (145) • SNMG-NF (146)
| Spare Parts | | | | | | | | | |
| Designation | | | | | | | | | |
| A25R PSKNR/L-09 | TSN 323 | TSN 333 | SP 3 | PN 3-3L | LR 3 | SR 117-2014 | SR M4X5 DIN913 | HW 2.5 | PL 25 |
| A32S PSKNR/L-09 | TSN 323 | TSN 333 | SP 3 | PN 3-3L | LR 3 | SR 117-2014 | SR M4X5 DIN913 | HW 2.5 | PL 32 |
| S-CSKPR | | | | | | h1 | | | Dmin | | | 75º |
| Clamp Lock Boring Bars Carryin 11° Clearance Square Inserts | g | | | | | l2 f | l1 | | h d | | Right-ha | nd shown |
| Designation | d | l1 | l2 | h | h1 | f | Dmin | Ga° | Gr° | Insert | | |
| S16Q CSKPR-09 | 16.00 | 180.00 | 34.0 | 15.0 | 8.0 | 11.0 | 20.00 | 4 | 0 | SPMR 0903 | LC 15 SET 1 | HW 2.5 |
| S25S CSKPR-12 | 25.00 | 250.00 | 48.0 | 23.0 | 11.5 | 17.0 | 30.00 | 5 | 0 | SPMR 1203 | LC 30 SET 2 | HW 3.0 |
For inserts, see pages: SPMR (168)
| | | | | | | Dmin | | | |
| S-CTFPR/L | | | | | h1 | | | | | 91º |
| Clamp Lock Boring Bars Carrying 11° Clearance Triangular Inserts | | | | | f l2 | l1 | d h | | R | ight-hand shown |
| Designation | d | l1 | l2 | h | h1 | f | Ga° | Gr° | Dmin | Insert |
| S12L CTFPR/L-09 | 12.00 | 140.00 | 34.0 | 11.0 | 6.0 | 9.0 | 3 | 0 | 15.60 | TPMR 0902 |
| S16Q CTFPR/L-11 | 16.00 | 180.00 | 38.0 | 15.0 | 8.0 | 11.0 | 4 | 0 | 20.00 | TPMR 1103 |
| S20Q CTFPR-16 | 20.00 | 180.00 | 38.0 | 18.0 | 9.5 | 13.0 | 4 | 0 | 24.00 | TPMR 1603 |
| S20R CTFPR/L-16 | 20.00 | 200.00 | 46.0 | 18.0 | 9.5 | 13.0 | 4 | 0 | 24.00 | TPMR 1603 |
| S25R CTFPR-16 | 25.00 | 200.00 | 48.0 | 23.0 | 11.5 | 17.0 | 5 | 0 | 31.00 | TPMR 1603 |
| S25S CTFPR-16 | 25.00 | 250.00 | 48.0 | 23.0 | 11.5 | 17.0 | 5 | 0 | 31.00 | TPMR 1603 |
| S32T CTFPR/L-16 | 32.00 | 300.00 | 62.0 | 29.0 | 14.5 | 22.0 | 5 | 0 | 40.00 | TPMR 1603 |
| S40T CTFPR-16 | 40.00 | 300.00 | 62.0 | 36.0 | 18.0 | 27.0 | 5 | 0 | 48.00 | TPMR 1603 |
For inserts, see pages: TPGN-Ceramic (182) • TPMR (168) • TPMR-PF (168)
Spare Parts
| Designation | | | | |
| S12L CTFPR/L-09 | LC12 SET1 | HW 2.5 | | |
| S16Q CTFPR/L-11 | LC 15 SET 1 | HW 2.5 | | |
| S20Q CTFPR-16 | LC 30 SET 2 | HW 3.0 | | |
| S20R CTFPR/L-16 | LC 30 SET 2 | HW 3.0 | | |
| S25R CTFPR-16 | LC 30 SET 2 | HW 3.0 | | |
| S25S CTFPR-16 | LC 30 SET 2 | HW 3.0 | | |
| S32T CTFPR/L-16 | LC 30 SET 1 | HW 3.0 | ITBP 122 | SP 16 |
| S40T CTFPR-16 | LC 30 SET 1 | HW 3.0 | ITBP 122 | SP 16 |
