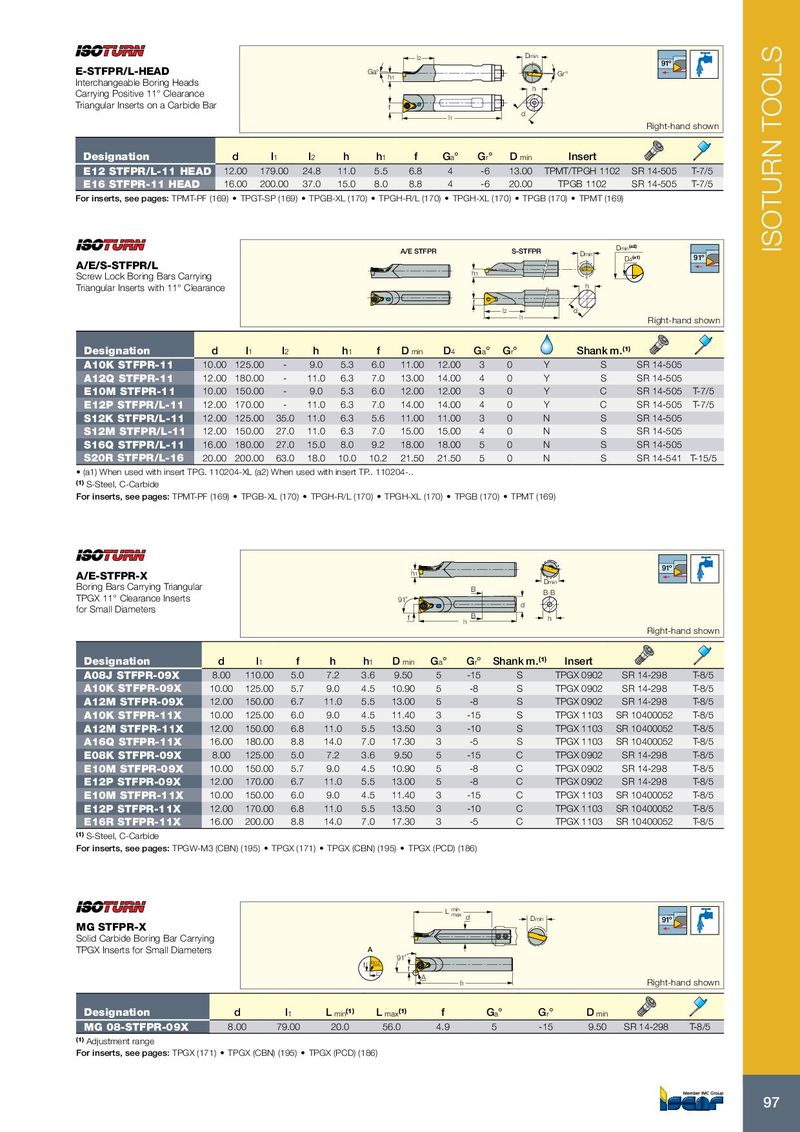

Каталог Iscar токарный инструмент 2017

E-STFPR/L-HEAD Interchangeable Boring Heads Carrying Positive 11° Clearance Triangular Inserts on a Carbide Bar					Ga° h1 f	l2	l1	Dmin h d	Gr°	Right-hand 91º	shown
Designation	d	l1	l2	h	h1	f	Ga° Gr°	Dmin	Insert
E12 STFPR/L-11 HEAD	12.00	179.00	24.8	11.0	5.5	6.8	4 -6	13.00	TPMT/TPGH 1102	SR 14-505	T-7/5
E16 STFPR-11 HEAD	16.00	200.00	37.0	15.0	8.0	8.8	4 -6	20.00	TPGB 1102	SR 14-505	T-7/5
For inserts, see pages:TPMT-PF (16	9) • TP	GT-SP (169)	• TPG	B-XL (170	) • TPGH	-R/L (17	0) • TPGH-XL (170	) • TPGB	(170) • TPMT (169)

A/E/S-STFPR/L							A/E STFP	R	S-STF h	PR	Dmin	Dmin(a2) D4(a1)	91º
Screw Lock Boring Bars Carr Triangular Inserts with 11° Cle	ying arance								l1 l2 1 f		h d	Right-han	d shown
Designation	d	l1	l2	h	h1	f	Dmin	D4	Ga° Gr°		Shank	m.(1)
A10K STFPR-11	10.00	125.00	-	9.0	5.3	6.0	11.00	12.00	3 0	Y	S	SR 14-505
A12Q STFPR-11	12.00	180.00	-	11.0	6.3	7.0	13.00	14.00	4 0	Y	S	SR 14-505
E10M STFPR-11	10.00	150.00	-	9.0	5.3	6.0	12.00	12.00	3 0	Y	C	SR 14-505	T-7/5
E12P STFPR/L-11	12.00	170.00	-	11.0	6.3	7.0	14.00	14.00	4 0	Y	C	SR 14-505	T-7/5
S12K STFPR/L-11	12.00	125.00	35.0	11.0	6.3	5.6	11.00	11.00	3 0	N	S	SR 14-505
S12M STFPR/L-11	12.00	150.00	27.0	11.0	6.3	7.0	15.00	15.00	4 0	N	S	SR 14-505
S16Q STFPR/L-11	16.00	180.00	27.0	15.0	8.0	9.2	18.00	18.00	5 0	N	S	SR 14-505
S20R STFPR/L-16	20.00	200.00	63.0	18.0	10.0	10.2	21.50	21.50	5 0	N	S	SR 14-541	T-15/5

(a1) When used with insert TPG. 110204-XL (a2) When used with insert TP.. 110204-..

(1) S-Steel, C-Carbide For inserts, see pages: TPMT-PF (169) TPGB-XL (170) TPGH-R/L (170) TPGH-XL (170) TPGB (170) TPMT (169)

A/E-STFPR-X						h1				Dmin	91º
Boring Bars Carrying Triangular TPGX 11° Clearance Inserts for Small Diameters						91˚ f		l1 B B	d	h B-B	Right-ha	nd shown
Designation	d	l1	f	h	h1	Dmin	Ga°	Gr°	Shank	m.(1) Insert
A08J STFPR-09X	8.00	110.00	5.0	7.2	3.6	9.50	5	-15	S	TPGX 0902	SR 14-298	T-8/5
A10K STFPR-09X	10.00	125.00	5.7	9.0	4.5	10.90	5	-8	S	TPGX 0902	SR 14-298	T-8/5
A12M STFPR-09X	12.00	150.00	6.7	11.0	5.5	13.00	5	-8	S	TPGX 0902	SR 14-298	T-8/5
A10K STFPR-11X	10.00	125.00	6.0	9.0	4.5	11.40	3	-15	S	TPGX 1103	SR 10400052	T-8/5
A12M STFPR-11X	12.00	150.00	6.8	11.0	5.5	13.50	3	-10	S	TPGX 1103	SR 10400052	T-8/5
A16Q STFPR-11X	16.00	180.00	8.8	14.0	7.0	17.30	3	-5	S	TPGX 1103	SR 10400052	T-8/5
E08K STFPR-09X	8.00	125.00	5.0	7.2	3.6	9.50	5	-15	C	TPGX 0902	SR 14-298	T-8/5
E10M STFPR-09X	10.00	150.00	5.7	9.0	4.5	10.90	5	-8	C	TPGX 0902	SR 14-298	T-8/5
E12P STFPR-09X	12.00	170.00	6.7	11.0	5.5	13.00	5	-8	C	TPGX 0902	SR 14-298	T-8/5
E10M STFPR-11X	10.00	150.00	6.0	9.0	4.5	11.40	3	-15	C	TPGX 1103	SR 10400052	T-8/5
E12P STFPR-11X	12.00	170.00	6.8	11.0	5.5	13.50	3	-10	C	TPGX 1103	SR 10400052	T-8/5
E16R STFPR-11X	16.00	200.00	8.8	14.0	7.0	17.30	3	-5	C	TPGX 1103	SR 10400052	T-8/5

(1) S-Steel, C-Carbide For inserts, see pages: TPGW-M3 (CBN) (195) TPGX (171) TPGX (CBN) (195) TPGX (PCD) (186)

L min

max d D

MG STFPR-X min 91º

Solid Carbide Boring Bar Carrying TPGX Inserts for Small Diameters A 91˚ f R0.2

f I1 A I Right-hand shown 1

Designation	d	l1	L min(1)	L max(1)	f	Ga°	Gr°	D min
MG 08-STFPR-09X	8.00	79.00	20.0	56.0	4.9	5	-15	9.50	SR 14-298	T-8/5

(1) Adjustment range For inserts, see pages: TPGX (171) TPGX (CBN) (195) TPGX (PCD) (186)
