| D | ||||||||||

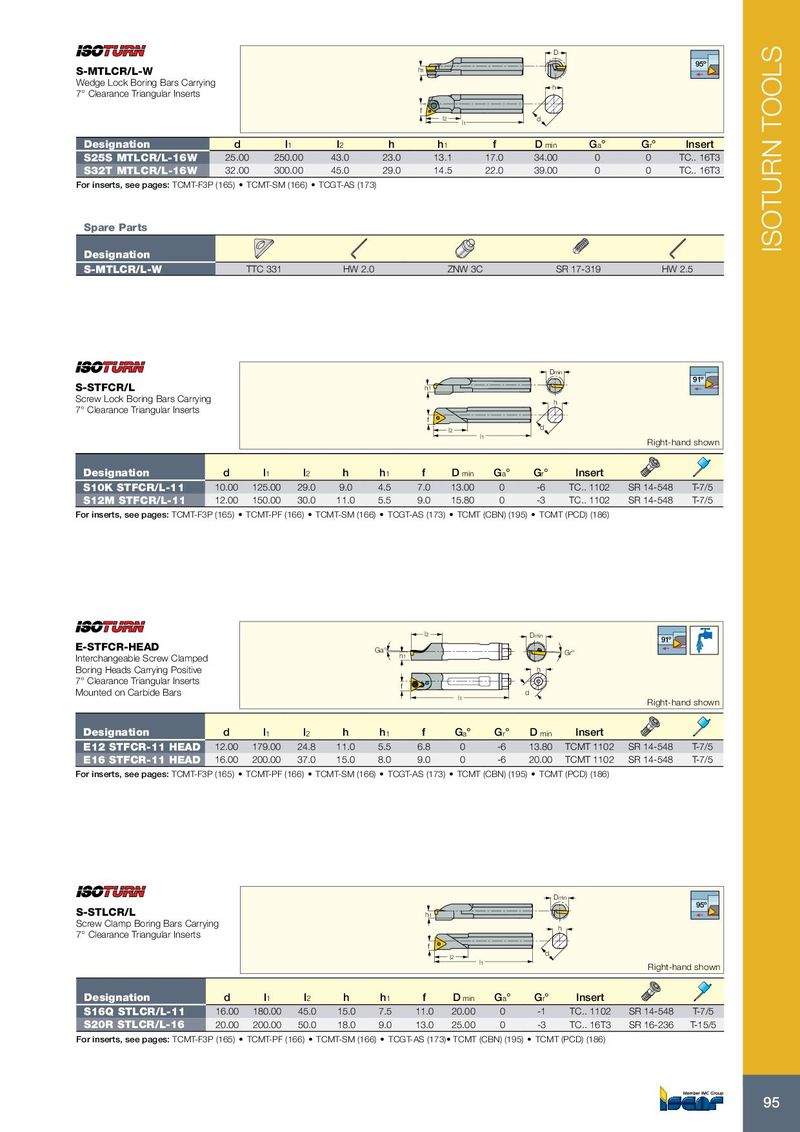

| S-MTLCR/L-W Wedge Lock Boring Bars Carrying 7° Clearance Triangular Inserts | f h1 l2 l1 | d h | 95º | |||||||
| Designation | d | l1 | l2 | h | h1 | f | Dmin | Ga° | Gr° | Insert |
| S25S MTLCR/L-16W | 25.00 | 250.00 | 43.0 | 23.0 | 13.1 | 17.0 | 34.00 | 0 | 0 | TC.. 16T3 |
| S32T MTLCR/L-16W | 32.00 | 300.00 | 45.0 | 29.0 | 14.5 | 22.0 | 39.00 | 0 | 0 | TC.. 16T3 |
For inserts, see pages: TCMT-F3P (165) • TCMT-SM (166) • TCGT-AS (173)
| Spare Parts | |||||
| Designation | |||||
| S-MTLCR/L-W | TTC 331 | HW 2.0 | ZNW 3C | SR 17-319 | HW 2.5 |
| Dmin | |||||||||||
| S-STFCR/L | h1 | 91º | |||||||||
| Screw Lock Boring Bars Carrying 7° Clearance Triangular Inserts | l2 l1 f | h d | Right-ha | nd shown | |||||||
| Designation | d | l1 | l2 | h | h1 | f Dmin | Ga° | Gr° | Insert | ||
| S10K STFCR/L-11 | 10.00 | 125.00 | 29.0 | 9.0 | 4.5 | 7.0 13.00 | 0 | -6 | TC.. 1102 | SR 14-548 | T-7/5 |
| S12M STFCR/L-11 | 12.00 | 150.00 | 30.0 | 11.0 | 5.5 | 9.0 15.80 | 0 | -3 | TC.. 1102 | SR 14-548 | T-7/5 |
For inserts, see pages: TCMT-F3P (165) • TCMT-PF (166) • TCMT-SM (166) • TCGT-AS (173) • TCMT (CBN) (195) • TCMT (PCD) (186)
| E-STFCR-HEAD | Ga° | l2 | Dmin | Gr° | 91º | ||||||
| Interchangeable Screw Clamped | h | 1 | |||||||||
| Boring Heads Carrying Positive 7° Clearance Triangular Inserts Mounted on Carbide Bars | f | l1 | h d | Right-han | d shown | ||||||
| Designation | d | l1 | l2 | h | h1 | f | Ga° Gr° | Dmin | Insert | ||
| E12 STFCR-11 HEAD | 12.00 | 179.00 | 24.8 | 11.0 | 5.5 | 6.8 | 0 -6 | 13.80 | TCMT 1102 | SR 14-548 | T-7/5 |
| E16 STFCR-11 HEAD | 16.00 | 200.00 | 37.0 | 15.0 | 8.0 | 9.0 | 0 -6 | 20.00 | TCMT 1102 | SR 14-548 | T-7/5 |
For inserts, see pages: TCMT-F3P (165) • TCMT-PF (166) • TCMT-SM (166) • TCGT-AS (173) • TCMT (CBN) (195) • TCMT (PCD) (186)
Dmin S-STLCR/L 95º h1 Screw Clamp Boring Bars Carrying 7° Clearance Triangular Inserts h f l d 2 l1 Right-hand shown
| Designation | d | l1 | l2 | h | h1 | f | D min | Ga° | Gr° | Insert | ||
| S16Q STLCR/L-11 | 16.00 | 180.00 | 45.0 | 15.0 | 7.5 | 11.0 | 20.00 | 0 | -1 | TC.. 1102 | SR 14-548 | T-7/5 |
| S20R STLCR/L-16 | 20.00 | 200.00 | 50.0 | 18.0 | 9.0 | 13.0 | 25.00 | 0 | -3 | TC.. 16T3 | SR 16-236 | T-15/5 |
For inserts, see pages: TCMT-F3P (165) • TCMT-PF (166) • TCMT-SM (166) • TCGT-AS (173)• TCMT (CBN) (195) • TCMT (PCD) (186)
