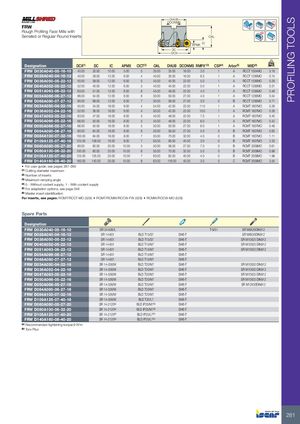

Каталог Iscar торцевые фрезы 2022 - страница 97

PROFILING TOOLS DHUB DCONMS Rd° FRW Rough Profiling Face Mills with Serrated or Regular Round Inserts OAL APMX IC DC DCX Designation DCX(1) DC IC APMX CICT(2) OAL DHUB DCONMS RMPX°(3) CSP(4) Arbor(5) MIID(6) kg FRW D030A040-05-16-10 40.00 30.00 10.00 5.00 5 35.00 35.00 16.00 3.0 1 A RCCT 1004MO 0.16 FRW D028A040-04-16-12 40.00 28.00 12.00 6.00 4 40.00 35.00 16.00 6.5 1 A RCCT 1206MO 0.15 FRW D038A050-05-22-12 50.00 38.00 12.00 6.00 5 45.00 45.00 22.00 5.0 1 A RCCT 1206MO 0.29 FRW D040A052-05-22-12 52.00 40.00 12.00 6.00 5 45.00 45.00 22.00 5.0 1 A RCCT 1206MO 0.31 FRW D051A063-06-22-12 63.00 51.00 12.00 6.00 6 45.00 48.00 22.00 4.0 1 A RCCT 1206MO 0.46 FRW D054A066-06-27-12 66.00 54.00 12.00 6.00 6 50.00 50.00 27.00 4.0 1 A RCCT 1206MO 0.54 FRW D068A080-07-27-12 80.00 68.00 12.00 6.00 7 50.00 58.50 27.00 3.0 0 B RCCT 1206MO 0.71 FRW D034A050-04-22-16 50.00 34.00 16.00 8.00 4 54.00 42.00 22.00 11.0 1 A RCMT 1607MO 0.26 FRW D036A052-04-22-16 52.00 36.00 16.00 8.00 4 50.00 42.00 22.00 10.0 1 A RCMT 1607MO 0.26 FRW D047A063-05-22-16 63.00 47.00 16.00 8.00 5 45.00 48.00 22.00 7.0 1 A RCMT 1607MO 0.40 FRW D050A066-05-22-16 66.00 50.00 16.00 8.00 5 45.00 48.00 22.00 6.0 1 A RCMT 1607MO 0.42 FRW D050A066-05-27-16 66.00 50.00 16.00 8.00 5 50.00 50.00 27.00 6.0 1 A RCMT 1607MO 0.46 FRW D064A080-06-27-16 80.00 64.00 16.00 8.00 6 50.00 58.50 27.00 5.0 0 B RCMT 1607MO 0.65 FRW D084A100-07-32-16 100.00 84.00 16.00 8.00 7 50.00 70.00 32.00 4.0 0 B RCMT 1607MO 1.11 FRW D109A125-07-40-16 125.00 109.00 16.00 8.00 7 63.00 90.00 40.00 3.0 0 B RCMT 1607MO 2.33 FRW D060A080-05-27-20 80.00 60.00 20.00 10.00 5 50.00 58.50 27.00 7.0 0 B RCMT 2009MO 0.61 FRW D080A100-06-32-20 100.00 80.00 20.00 10.00 6 50.00 70.00 32.00 5.0 0 B RCMT 2009MO 0.98 FRW D105A125-07-40-20 125.00 105.00 20.00 10.00 7 63.00 82.00 40.00 4.0 0 B RCMT 2009MO 1.98 FRW D140A160-08-40-20 160.00 140.00 20.00 10.00 8 63.00 116.00 40.00 3.0 0 C RCMT 2009MO 3.55 • For user guide, see pages 287-289 (1) Cutting diameter maximum (2) Number of inserts (3) Maximum ramping angle (4) 0 - Without coolant supply, 1 - With coolant supply (5) For adaptation options, see page 548 (6) Master insert identification For inserts, see pages: RCMT/RCCT-MO (528) • RCMT/RCMW/RCCW-FW (529) • RCMW/RCCW-MO (528) Spare Parts Designation FRW D030A040-05-16-10 SR 34-506/L T-9/51 SR M8X25DIN912 FRW D028A040-04-16-12 SR 14-601 BLD T15/S7 SW6-T SR M8X25DIN912 FRW D038A050-05-22-12 SR 14-601 BLD T15/S7 SW6-T SR M10X25 DIN912 FRW D040A052-05-22-12 SR 14-601 BLD T15/M7 SW6-T SR M10X25 DIN912 FRW D051A063-06-22-12 SR 14-601 BLD T15/M7 SW6-T SR M10X25 DIN912 FRW D054A066-06-27-12 SR 14-601 BLD T15/M7 SW6-T FRW D068A080-07-27-12 SR 14-601 BLD T15/M7 SW6-T FRW D034A050-04-22-16 SR 14-536/M BLD T20/M7 SW6-T SR M10X30 DIN912 FRW D036A052-04-22-16 SR 14-536/M BLD T20/M7 SW6-T SR M10X30 DIN912 FRW D047A063-05-22-16 SR 14-536/M BLD T20/M7 SW6-T SR M10X25 DIN912 FRW D050A066-05-22-16 SR 14-536/M BLD T20/M7 SW6-T SR M10X25 DIN912 FRW D050A066-05-27-16 SR 14-536/M BLD T20/M7 SW6-T SR M12X30DIN912 FRW D064A080-06-27-16 SR 14-536/M BLD T20/M7 SW6-T FRW D084A100-07-32-16 SR 14-536/M BLD T20/M7 SW6-T FRW D109A125-07-40-16 SR 14-536/M BLD T20/L7 SW6-T FRW D060A080-05-27-20 SR 14-2120(a) BLD IP25/M7(b) SW6-T FRW D080A100-06-32-20 SR 14-2120(a) BLD IP25/M7(b) SW6-T FRW D105A125-07-40-20 SR 14-2120(a) BLD IP25/L7(b) SW6-T FRW D140A160-08-40-20 SR 14-2120(a) BLD IP25/L7(b) SW6-T (a) Recommended tightening torque:9 N*m (b) Torx Plus 281
