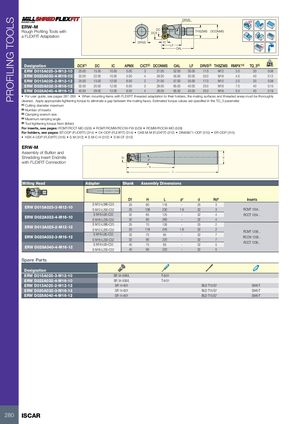

PROFILING TOOLS DRVS ERW-M Rough Profiling Tools with DCDCX THSZMS DCONMS a FLEXFIT Adaptation DRVS IC LF Rd° OAL Designation DCX(1) DC IC APMX CICT(2) DCONMS OAL LF DRVS(3) THSZMS RMPX°(4) TQ_3(5) kg ERW D015A025-3-M12-10 25.00 15.00 10.00 5.00 3 21.00 52.00 30.00 17.0 M12 3.0 33 0.06 ERW D022A032-4-M16-10 32.00 22.00 10.00 5.00 4 29.00 55.00 30.00 25.0 M16 4.0 40 0.12 ERW D013A025-2-M12-12 25.00 13.00 12.00 6.00 2 21.00 57.00 35.00 17.0 M12 2.0 33 0.08 ERW D020A032-3-M16-12 32.00 20.00 12.00 6.00 3 29.00 65.00 40.00 25.0 M16 7.0 40 0.15 ERW D028A040-4-M16-12 40.00 28.00 12.00 6.00 4 29.00 65.00 40.00 25.0 M16 5.0 40 0.19 • For user guide, see pages 287-289 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Cutting diameter maximum (2) Number of inserts (3) Clamping wrench size (4) Maximum ramping angle (5) Tool tightening torque Nxm (lbfxin) For inserts, see pages: RCMT/RCCT-MO (528) • RCMT/RCMW/RCCW-FW (529) • RCMW/RCCW-MO (528) For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315) • HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313) ERW-M Assembly of Button and Shredding Insert Endmills D1 d a° with FLEXFIT Connection H L Milling Head Adapter Shank Assembly Dimensions D1 H L aº d Rdº Inserts ERW D015A025-3-M12-10 S M12-L086-C25 25 60 116 - 25 3S M12-L200-C32251082301.9323RCMT 1004... ERW D022A032-4-M16-10 S M16-L95-C32 32 65 125 - 32 4S M16-L230-C323280260-324RCCT 1004... ERW D013A025-2-M12-12 S M12-L086-C25 25 70 126 - 25 2S M12-L200-C32251182401.8322RCMT 1206... ERW D020A032-3-M16-12 S M16-L95-C32 32 75 85 - 32 7S M16-L230-C323290220-327RCCW 1206... ERW D028A040-4-M16-12 S M16-L95-C32 40 75 85 - 32 5S M16-L230-C324090220-325RCCT 1206... Spare Parts Designation ERW D015A025-3-M12-10 SR 34-506/L T-9/51 ERW D022A032-4-M16-10 SR 34-506/L T-9/51 ERW D013A025-2-M12-12 SR 14-601 BLD T15/S7 SW6-T ERW D020A032-3-M16-12 SR 14-601 BLD T15/S7 SW6-T ERW D028A040-4-M16-12 SR 14-601 BLD T15/S7 SW6-T 280 ISCAR
