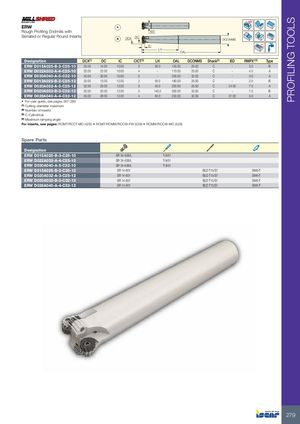

PROFILING TOOLS ERW A Rough Profiling Endmills with BD Serrated or Regular Round Inserts B DCX DC DCONMS IC Rd° LH OAL Designation DCX(1) DC IC CICT(2) LH OAL DCONMS Shank(3) BD RMPX°(4) Type ERW D015A025-B-3-C25-10 25.00 15.00 10.00 3 50.0 150.00 25.00 C - 3.0 B ERW D022A032-A-4-C25-10 32.00 22.00 10.00 4 - 170.00 25.00 C - 4.0 A ERW D030A040-A-5-C32-10 40.00 30.00 10.00 5 - 200.00 32.00 C - 3.0 A ERW D013A025-B-2-C25-12 25.00 13.00 12.00 2 50.0 180.00 25.00 C - 2.0 B ERW D020A032-A-3-C25-12 32.00 20.00 12.00 3 40.0 200.00 25.00 C 24.00 7.0 A ERW D020A032-B-3-C32-12 32.00 20.00 12.00 3 140.0 300.00 32.00 C - 7.0 B ERW D028A040-A-4-C32-12 40.00 28.00 12.00 4 50.0 250.00 32.00 C 31.00 5.0 A • For user guide, see pages 287-289 (1) Cutting diameter maximum (2) Number of inserts (3) C-Cylindrical (4) Maximum ramping angle For inserts, see pages: RCMT/RCCT-MO (528) • RCMT/RCMW/RCCW-FW (529) • RCMW/RCCW-MO (528) Spare Parts Designation ERW D015A025-B-3-C25-10 SR 34-506/L T-9/51 ERW D022A032-A-4-C25-10 SR 34-506/L T-9/51 ERW D030A040-A-5-C32-10 SR 34-506/L T-9/51 ERW D013A025-B-2-C25-12 SR 14-601 BLD T15/S7 SW6-T ERW D020A032-A-3-C25-12 SR 14-601 BLD T15/S7 SW6-T ERW D020A032-B-3-C32-12 SR 14-601 BLD T15/S7 SW6-T ERW D028A040-A-4-C32-12 SR 14-601 BLD T15/S7 SW6-T 279
