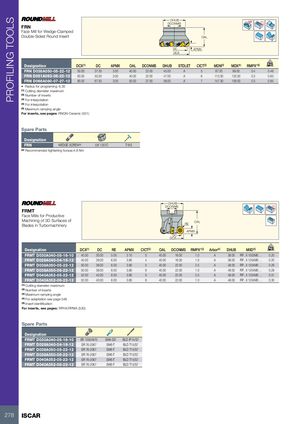

PROFILING TOOLS DHUB Rd° DCONMS FRN Face Mill for Wedge-Clamped Double-Sided Round Insert OAL DC APMX DCX Designation DCX(1) DC APMX OAL DCONMS DHUB STDLET CICT(2) MDN(3) MDX(4) RMPX°(5) kg FRN D038A050-05-22-12 50.00 37.30 3.00 40.00 22.00 45.00 A 5 87.30 99.00 0.4 0.46 FRN D051A063-06-22-12 63.00 50.30 3.00 40.00 22.00 47.00 A 6 113.30 125.00 0.3 0.63 FRN D068A080-07-27-12 80.00 67.30 3.00 50.00 27.00 58.00 A 7 147.30 159.00 0.3 0.85 • Radius for programing: 6.35 (1) Cutting diameter maximum (2) Number of inserts (3) For interpolation (4) For interpolation (5) Maximum ramping angle For inserts, see pages: RNGN-Ceramic (531) Spare Parts Designation FRN WEDGE SCREW(a) LW 1207C T-W3 (a) Recommended tightening torque:4.8 Nm DHUB DCONMS Rd° FRMT Face Mills for Productive Machining of 3D Surfaces ofBlades in Turbomachinery RE OAL APMX DC DCX Designation DCX(1) DC RE APMX CICT(2) OAL DCONMS RMPX°(3) Arbor(4) DHUB MIID(5) kg FRMT D030A040-05-16-10 40.00 30.00 5.00 3.10 5 40.00 16.00 1.0 A 38.00 RP...X 1003M0 ... 0.20 FRMT D028A040-04-16-12 40.00 28.00 6.00 3.80 4 40.00 16.00 1.0 A 38.00 RP...X 1204M0 ... 0.20 FRMT D038A050-05-22-12 50.00 38.00 6.00 3.80 5 40.00 22.00 2.5 A 48.00 RP...X 1204M0 ... 0.29 FRMT D038A050-06-22-12 50.00 38.00 6.00 3.80 6 40.00 22.00 1.0 A 48.00 RP...X 1204M0 ... 0.29 FRMT D040A052-05-22-12 52.00 40.00 6.00 3.80 5 40.00 22.00 2.5 A 48.00 RP...X 1204M0 ... 0.31 FRMT D040A052-06-22-12 52.00 40.00 6.00 3.80 6 40.00 22.00 1.0 A 48.00 RP...X 1204M0 ... 0.30 (1) Cutting diameter maximum (2) Number of inserts (3) Maximum ramping angle (4) For adaptation see page 548 (5) Insert identification For inserts, see pages: RPHX/RPMX (530) Spare Parts Designation FRMT D030A040-05-16-10 SR 10504970 SW6-SD BLD IP15/S7 FRMT D028A040-04-16-12 SR 76-2067 SW6-T BLD T15/S7 FRMT D038A050-05-22-12 SR 76-2067 SW6-T BLD T15/S7 FRMT D038A050-06-22-12 SR 76-2067 SW6-T BLD T15/S7 FRMT D040A052-05-22-12 SR 76-2067 SW6-T BLD T15/S7 FRMT D040A052-06-22-12 SR 76-2067 SW6-T BLD T15/S7 278 ISCAR
