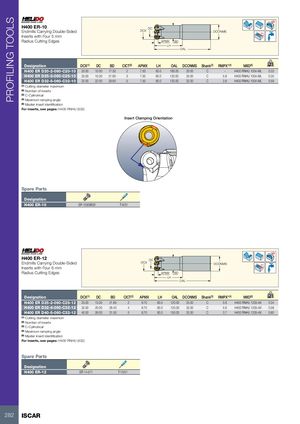

PROFILING TOOLS H400 ER-10 DC Endmills Carrying Double-Sided DCX DCONMS Rd° Inserts with Four 5 mm Radius Cutting Edges APMX BD LH OAL Designation DCX(1) DC BD CICT(2) APMX LH OAL DCONMS Shank(3) RMPX°(4) MIID(5) kg H400 ER D20-2-060-C20-10 20.00 10.00 17.50 2 7.50 60.0 160.00 20.00 C - H400 RNHU 1004-ML 0.33 H400 ER D25-3-060-C25-10 25.00 15.00 21.60 3 7.50 60.0 120.00 25.00 C 5.8 H400 RNHU 1004-ML 0.35 H400 ER D32-5-060-C32-10 32.00 22.00 29.60 5 7.50 60.0 120.00 32.00 C 3.8 H400 RNHU 1004-ML 0.59 (1) Cutting diameter maximum (2) Number of inserts (3) C-Cylindrical (4) Maximum ramping angle (5) Master insert identification For inserts, see pages: H400 RNHU (532) Insert Clamping Orientation Spare Parts Designation H400 ER-10 SR 10508600 T-9/51 H400 ER-12 DC Endmills Carrying Double-Sided DCX DCONMS Rd° Inserts with Four 6 mm Radius Cutting Edges APMX BD LH OAL Designation DCX(1) DC BD CICT(2) APMX LH OAL DCONMS Shank(3) RMPX°(4) MIID(5) kg H400 ER D25-2-060-C25-12 25.00 13.00 21.60 2 8.70 60.0 120.00 25.00 C 5.6 H400 RNHU 1205-AX 0.34 H400 ER D32-4-060-C32-12 32.00 20.00 28.40 4 8.70 60.0 120.00 32.00 C 5.6 H400 RNHU 1205-AX 0.58 H400 ER D40-5-060-C32-12 40.00 28.00 31.50 5 8.70 60.0 150.00 32.00 C 3.7 H400 RNHU 1205-AX 0.80 (1) Cutting diameter maximum (2) Number of inserts (3) C-Cylindrical (4) Maximum ramping angle (5) Master insert identification For inserts, see pages: H400 RNHU (532) Spare Parts Designation H400 ER-12 SR 14-571 T-10/51 282 ISCAR
