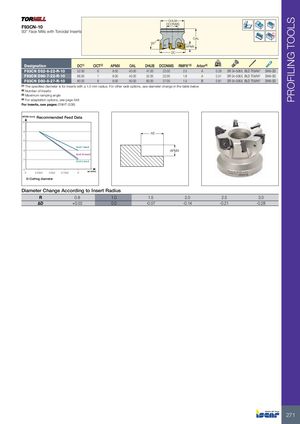

PROFILING TOOLS DHUB DCONMS F93CN-10 93° Face Mills with Toroidal Inserts Rd° OAL 93° APMX DC Designation DC(1) CICT(2) APMX OAL DHUB DCONMS RMPX°(3) Arbor(4) kg F93CN D52-6-22-R-10 52.00 6 8.00 40.00 47.00 22.00 2.5 A 0.28 SR 34-506/L BLD T09/M7 SW6-SD F93CN D66-7-22-R-10 66.00 7 8.00 40.00 52.00 22.00 1.8 A 0.51 SR 34-506/L BLD T09/M7 SW6-SD F93CN D80-8-27-R-10 80.00 8 8.00 50.00 60.00 27.00 1.5 B 0.81 SR 34-506/L BLD T09/M7 SW6-SD (1) The specified diameter is for inserts with a 1.0 mm radius. For other radii options, see diameter change in the table below (2) Number of inserts (3) Maximum ramping angle (4) For adaptation options, see page 548 For inserts, see pages: ENHT (538) APMX (mm) Recommended Feed Data 10 8 AE 6 fz=0.1 mm/t 4 APMX fz=0.15 mm/t 2 fz=0.2 mm/t 0 0 0.25xD 0.5xD 0.75xD D ae (mm) D-Cutting diameter Diameter Change According to Insert Radius R 0.8 1.0 1.5 2.0 2.5 3.0 ∆D +0.03 0.0 -0.07 -0.14 -0.21 -0.28 271
