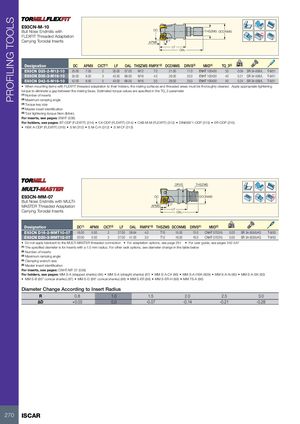

PROFILING TOOLS E93CN-M-10 Bull Nose Endmills with DC THSZMS DCONMS Rd° FLEXFIT Threaded Adaptation Carrying Toroidal Inserts APMX 3° LF OAL Designation DC APMX CICT(1) LF OAL THSZMS RMPX°(2) DCONMS DRVS(3) MIID(4) TQ_3(5) kg E93CN D25-2-M12-10 25.00 7.00 2 35.00 57.00 M12 7.0 21.00 17.0 ENHT 100430 33 0.09 SR 34-506/L T-9/51 E93CN D35-3-M16-10 35.00 8.50 3 43.00 68.00 M16 4.0 29.00 25.0 ENHT 100430 40 0.21 SR 34-506/L T-9/51 E93CN D42-5-M16-10 42.00 8.50 5 43.00 68.00 M16 3.0 29.00 25.0 ENHT 100430 40 0.24 SR 34-506/L T-9/51 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Number of inserts (2) Maximum ramping angle (3) Torque key size (4) Master insert identification (5) Tool tightening torque Nxm (lbfxin) For inserts, see pages: ENHT (538) For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315) • HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313) DRVS THSZMS Rd° E93CN-MM-07 DC DCONMS Bull Nose Endmills with MULTI- MASTER Threaded Adaptation APMX 3° Carrying Toroidal Inserts LF OAL Designation DC(1) APMX CICT(2) LF OAL RMPX°(3) THSZMS DCONMS DRVS(4) MIID(5) kg E93CN D16-2-MMT10-07 16.00 5.00 2 27.00 38.64 4.0 T10 15.00 13.0 CNHT 070315 0.03 SR 34-505/LHG T-8/53 E93CN D20-3-MMT12-07 20.00 5.00 3 27.00 41.00 3.0 T12 19.00 16.0 CNHT 070315 0.05 SR 34-505/LHG T-8/53 • Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation options, see page 261 • For user guide, see pages 542-547 (1) The specified diameter is for inserts with a 1.0 mm radius. For other radii options, see diameter change in the table below (2) Number of inserts (3) Maximum ramping angle (4) Clamping wrench size (5) Master insert identification For inserts, see pages: CNHT/MT 07 (538) For holders, see pages: MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86) Diameter Change According to Insert Radius R 0.8 1.0 1.5 2.0 2.5 3.0 ∆D +0.03 0.0 -0.07 -0.14 -0.21 -0.28 270 ISCAR
