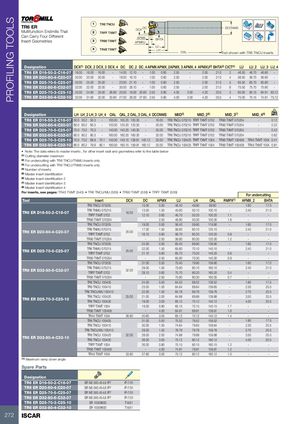

PROFILING TOOLS TR6 ERMultifunction Endmills That 1 TR6 TNCU DCX DC2TRFF TXMT DCONMS Can Carry Four DifferentInsert Geometries 3 TR90 TXMT APMX BHTAAPMXU LU 4 TR45 TXMT LH OAL Tool shown with TR6 TNCU inserts Designation DCX(1) DCX_2 DCX_3 DCX_4 DC DC_2 DC_4 APMX APMX_2APMX_3 APMX_4 APMXU(2) BHTA(3) CICT(4) LU LU_2 LU_3 LU_4 TR6 ER D16-50-2-C16-07 16.00 16.00 16.00 - 14.00 12.10 - 1.00 0.60 2.50 - 2.00 21.0 2 46.50 46.70 46.80 - TR6 ER D20-60-4-C20-07 20.00 20.00 20.00 - 18.00 16.10 - 1.00 0.60 2.50 - 2.00 21.0 4 56.50 56.70 56.80 - TR6 ER D25-70-5-C25-07 25.00 25.00 25.00 - 23.00 21.10 - 1.00 0.60 2.50 - 2.00 21.0 5 65.50 65.70 65.80 - TR6 ER D32-80-6-C32-07 32.00 32.00 32.00 - 30.00 28.10 - 1.00 0.60 2.50 - 2.00 21.0 6 75.50 75.70 75.80 - TR6 ER D25-70-3-C25-10 25.00 24.60 25.00 26.80 20.00 19.00 20.60 2.50 0.80 4.00 3.00 4.20 20.5 3 65.00 65.15 64.91 65.12 TR6 ER D32-80-4-C32-10 32.00 31.60 32.00 33.80 27.00 26.00 27.60 2.50 0.80 4.00 3.00 4.20 20.5 4 75.00 75.15 74.91 75.12 Designation LH LH_2 LH_3 LH_4 OAL OAL_2 OAL_3 OAL_4 DCONMS MIID(5) MIID_2(6) MIID_3(7) MIID_4(8) kg TR6 ER D16-50-2-C16-07 50.0 50.2 50.3 - 100.00 100.20 100.30 - 16.00 TR6 TNCU 070210 TRFF TXMT 0702 TR90 TXMT 070204 - 0.12 TR6 ER D20-60-4-C20-07 60.0 60.2 60.3 - 120.00 120.20 120.30 - 20.00 TR6 TNCU 070210 TRFF TXMT 0702 TR90 TXMT 070204 - 0.22 TR6 ER D25-70-5-C25-07 70.0 70.2 70.3 - 140.00 140.20 140.30 - 25.00 TR6 TNCU 070210 TRFF TXMT 0702 TR90 TXMT 070204 - 0.42 TR6 ER D32-80-6-C32-07 80.0 80.2 80.3 - 160.00 160.20 160.30 - 32.00 TR6 TNCU 070210 TRFF TXMT 0702 TR90 TXMT 070204 - 0.82 TR6 ER D25-70-3-C25-10 70.0 70.2 69.9 70.1 140.00 140.15 139.91 140.12 25.00 TR6 TNCU 100425 TRFF TXMT 1004 TR90 TXMT 100408 TR45 TXMT 1004 0.41 TR6 ER D32-80-4-C32-10 80.0 80.2 79.9 80.1 160.00 160.15 159.91 160.12 32.00 TR6 TNCU 100425 TRFF TXMT 1004 TR90 TXMT 100408 TR45 TXMT 1004 0.81 • Note: The data refers to master inserts , for other insert radii and geometries refer to the table below (1) Cutting diameter maximum (2) For undercutting with TR6 TNCU/TNMU inserts only (3) For undercutting with TR6 TNCU/TNMU inserts only (4) Number of inserts (5) Master insert identification (6) Master insert identification 2 (7) Master insert identification 3 (8) Master insert identification 4 For inserts, see pages: TR45 TXMT (540) • TR6 TNCU/MU (539) • TR90 TXMT (539) • TRFF TXMT (539) For undercutting Tool Insert DCX DC APMX LU LH OAL RMPX(1) APMX_2 BHTA TR6 TNCU 070205 15.00 0.50 46.40 49.90 99.90 - 1.60 17.0 TR6 ER D16-50-2-C16-07 TR6 TNMU 070215TRFF TXMT 070216.00 13.0012.10 1.500.60 45.60 50.10 100.1046.7050.20100.20-1.12.40- 21.0- TR90 TXMT 070204 - 2.50 46.80 50.30 100.30 1.6 - - TR6 TNCU 070205 19.00 0.50 56.40 59.90 119.90 - 1.60 17.0 TR6 ER D20-60-4-C20-07 TR6 TNMU 070215TRFF TXMT 070220.00 17.0016.10 1.500.60 56.60 60.10 120.1056.7060.20120.20-0.82.40- 21.0- TR90 TXMT 070204 - 2.50 56.80 60.30 120.30 1.2 - - TR6 TNCU 070205 24.00 0.50 65.40 69.90 139.90 - 1.60 17.0 TR6 ER D25-70-5-C25-07 TR6 TNMU 070215TRFF TXMT 070225.00 22.0021.10 1.500.60 65.60 70.10 140.1065.7070.20140.20-0.62.40- 21.0- TR90 TXMT 070204 - 2.50 65.80 70.30 140.30 0.9 - - TR6 TNCU 070205 31.00 0.50 75.40 79.90 159.90 - 1.60 17.0 TR6 ER D32-80-6-C32-07 TR6 TNMU 070215TRFF TXMT 070232.00 29.0028.10 1.500.60 75.60 80.10 160.1075.7080.20160.20-0.42.40- 21.0- TR90 TXMT 070204 - 2.50 75.80 80.30 160.30 0.7 - - TR6 TNCU 100405 24.00 0.50 64.52 69.52 139.52 - 1.80 17.5 TR6 TNCU 100410 23.00 1.00 64.64 69.64 139.65 - 2.30 20.5 TR6 TNCU/MU 100415 22.00 1.50 64.76 69.76 139.76 - 2.70 20.5 TR6 ER D25-70-3-C25-10 TR6 TNCU 100420 25.00 21.00 2.00 64.88 69.88 139.88 - 3.50 20.5TR6 TNCU 10043019.003.0065.1270.12140.12-4.5020.5 TRFF TXMT 1004 19.00 0.80 65.15 70.15 140.15 1.7 - - TR90 TXMT 100408 - 4.00 64.91 69.91 139.91 1.6 - - TR45 TXMT 1004 26.80 20.60 3.00 65.12 70.12 140.12 1.4 - - TR6 TNCU 100405 31.00 0.50 75.52 79.52 159.52 - 1.80 17.5 TR6 TNCU 100410 30.00 1.00 74.64 79.65 159.64 - 2.30 20.5 TR6 TNCU/MU 100415 29.00 1.50 76.76 79.76 159.76 - 2.70 20.5 TR6 ER D32-80-4-C32-10 TR6 TNCU 100420 32.00 28.00 2.00 74.88 79.88 159.88 - 3.50 20.5TR6 TNCU 10043026.003.0075.1280.12160.12-4.5020.5 TRFF TXMT 1004 26.00 0.80 75.15 80.15 160.15 1.2 - - TR90 TXMT 100408 - 4.00 74.91 79.91 159.91 1.2 - - TR45 TXMT 1004 33.80 27.60 3.00 75.12 80.12 160.12 1.0 - - (1) Maximum ramp down angle Spare Parts Designation TR6 ER D16-50-2-C16-07 SR M2.5X0.45-L6 IP7 IP-7/51 TR6 ER D20-60-4-C20-07 SR M2.5X0.45-L6 IP7 IP-7/51 TR6 ER D25-70-5-C25-07 SR M2.5X0.45-L6 IP7 IP-7/51 TR6 ER D32-80-6-C32-07 SR M2.5X0.45-L6 IP7 IP-7/51 TR6 ER D25-70-3-C25-10 SR 10508600 T-9/51 TR6 ER D32-80-4-C32-10 SR 10508600 T-9/51 272 ISCAR
