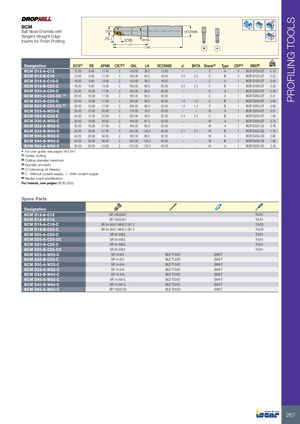

PROFILING TOOLS BCM Ball Nose Endmills with DCX DCONMS Rd° Tangent Straight EdgeInserts for Finish Profiling RE APMX BHTA LH OAL B A Designation DCX(2) RE APMX CICT(3) OAL LH DCONMS a° BHTA Shank(4) Type CSP(5) MIID(6) kg BCM D12-A-C12 12.00 6.00 11.40 2 120.00 30.0 12.00 - - C A 0 BCR D120-QT 0.10 BCM D12-B-C16 12.00 6.00 11.40 2 160.00 60.0 16.00 2.0 2.0 C B 0 BCR D120-QT 0.22 BCM D16-A-C16-C 16.00 8.00 13.00 2 130.00 36.0 16.00 - - C A 1 BCR D160-QT 0.54 BCM D16-B-C20-C 16.00 8.00 13.00 2 160.00 60.0 20.00 2.2 2.2 C B 1 BCR D160-QT 0.30 BCM D20-A-C20-C 20.00 10.00 17.00 2 160.00 65.0 20.00 - - C A 1 BCR D200-QT 0.29 BCM D20-A-C20-CC (1) 20.00 10.00 17.00 2 160.00 65.0 20.00 - - C A 1 BCR D200-QT 0.31 BCM D20-B-C25-C 20.00 10.00 17.00 2 200.00 90.0 25.00 1.5 1.5 C B 1 BCR D200-QT 0.55 BCM D20-B-C25-CC (1) 20.00 10.00 17.00 2 200.00 90.0 25.00 1.5 1.5 C B 1 BCR D200-QT 0.60 BCM D25-A-W25-C 25.00 12.50 20.00 2 170.00 70.0 25.00 - - W A 1 BCR D250-QT 0.51 BCM D25-B-C32-C 25.00 12.50 20.00 2 220.00 95.0 32.00 2.4 2.4 C B 1 BCR D250-QT 1.05 BCM D30-A-W32-C 30.00 15.00 26.00 2 160.00 67.0 32.00 - - W A 1 BCR D300-QT 0.73 BCM D32-A-W32-C 32.00 16.00 27.00 2 160.00 65.0 32.00 - - W A 1 BCR D320-CS 0.76 BCM D32-B-W40-C 32.00 16.00 27.00 2 250.00 125.0 40.00 2.1 2.1 W B 1 BCR D320-CS 1.75 BCM D40-A-W32-C 40.00 20.00 36.00 2 160.00 88.0 32.00 - - W A 1 BCR D400-CS 0.92 BCM D40-B-W40-C 40.00 20.00 36.00 2 250.00 125.0 40.00 - - W B 1 BCR D400-CS 1.95 BCM D50-A-W50-C 50.00 25.00 43.00 2 212.00 132.0 50.00 - - W A 1 BCR D500-CS 2.42 • For user guide, see pages 542-547 (1) Center Cutting (2) Cutting diameter maximum (3) Number of inserts (4) C-Cylindrical, W-Weldon (5) 0 - Without coolant supply, 1 - With coolant supply (6) Master insert identification For inserts, see pages: BCR (535) Spare Parts Designation BCM D12-A-C12 SR 10503457 T-6/51 BCM D12-B-C16 SR 10503457 T-6/51 BCM D16-A-C16-C SR 34-505/1 MHG 2.5X7.2 T-8/53 BCM D16-B-C20-C SR 34-505/1 MHG 2.5X7.2 T-8/53 BCM D20-A-C20-C SR 34-506/L T-9/51 BCM D20-A-C20-CC SR 34-506/L T-9/51 BCM D20-B-C25-C SR 34-506/L T-9/51 BCM D20-B-C25-CC SR 34-506/L T-9/51 BCM D25-A-W25-C SR 14-601 BLD T15/S7 SW6-T BCM D25-B-C32-C SR 14-601 BLD T15/S7 SW6-T BCM D30-A-W32-C SR 14-544 BLD T15/S7 SW6-T BCM D32-A-W32-C SR 14-544 BLD T15/S7 SW6-T BCM D32-B-W40-C SR 14-544 BLD T15/S7 SW6-T BCM D40-A-W32-C SR 14-591/L BLD T20/S7 SW6-T BCM D40-B-W40-C SR 14-591/L BLD T20/S7 SW6-T BCM D50-A-W50-C SR 10503750 BLD T25/S7 SW6-T 267
