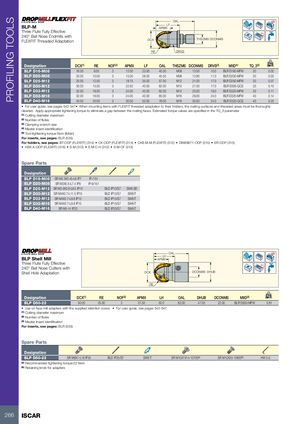

PROFILING TOOLS OAL BLP-M LFAPMX Three Flute Fully Effective Rd° 240° Ball Nose Endmills with FLEXFIT Threaded Adaptation DCX THSZMS DCONMS RE DRVS Designation DCX(1) RE NOF(2) APMX LF OAL THSZMS DCONMS DRVS(3) MIID(4) TQ_3(5) kg BLP D16-M08 16.00 8.00 3 12.00 23.00 40.50 M08 13.00 10.0 BLR D160-MFW 20 0.02 BLP D20-M08 20.00 10.00 3 15.00 28.00 45.50 M08 12.80 11.0 BLR D200-MFW 20 0.03 BLP D25-M12 25.00 12.50 3 18.75 35.00 57.00 M12 21.00 17.0 BLR D250-MFW 33 0.07 BLP D30-M12 30.00 15.00 3 22.50 40.00 62.00 M12 21.00 17.0 BLR D300-QCS 33 0.10 BLP D32-M12 32.00 16.00 3 24.00 40.00 62.00 M12 23.00 19.0 BLR D320-MFW 33 0.11 BLP D32-M16 32.00 16.00 3 24.00 40.00 65.00 M16 29.00 24.0 BLR D320-MFW 40 0.14 BLP D40-M16 40.00 20.00 3 30.00 53.00 78.00 M16 30.00 24.0 BLR D320-QCS 40 0.25 • For user guide, see pages 542-547• When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Cutting diameter maximum (2) Number of flutes (3) Clamping wrench size (4) Master insert identification (5) Tool tightening torque Nxm (lbfxin) For inserts, see pages: BLR (535) For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315) • HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313) Spare Parts Designation BLP D16-M08 SR M2.5X0.45-L6 IP7 IP-7/51 BLP D20-M08 SR M3X0.5-L7.4 IP9 IP-9/151 BLP D25-M12 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD BLP D30-M12 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T BLP D32-M12 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T BLP D32-M16 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T BLP D40-M16 SR M5-14 IP20 BLD IP20/S7 SW6-T OAL BLP Shell Mill LHAPMX Three Flute Fully Effective Rd° 240° Ball Nose Cutters with Shell Hole Adaptation DCX DCONMS DHUB RE Designation DCX(1) RE NOF(2) APMX LH OAL DHUB DCONMS MIID(3) kg BLP D50-22 50.00 25.00 3 37.50 50.0 83.00 47.00 22.00 BLR D500-MFW 0.61 • Use on face mill adapters with the supplied retention screw • For user guide, see pages 542-547 (1) Cutting diameter maximum (2) Number of flutes (3) Master insert identification For inserts, see pages: BLR (535) Spare Parts Designation BLP D50-22 SR M6X1-L18 IP25 BLD IP25/S7 SW6-T SR M10X1X14-10700(a) SR M10X20-10600(b) HW 5.0 (a) Recommended tightening torque:22 Nxm (b) Retaining knob for adapters 266 ISCAR
