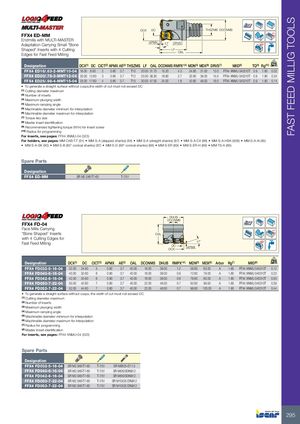

Каталог Iscar торцевые фрезы 2022 - страница 111

FAST FEED MILLIG TOOLS DCX DC THSZMS DCONMS Rd° FFX4 ED-MM Endmills with MULTI-MASTER Adaptation Carrying Small "Bone APMX 17˚ DRVS Shaped” Inserts with 4 Cutting LF Edges for Fast Feed Milling OAL Designation DCX(1) DC CICT(2) APMX AE(3) THSZMS LF OAL DCONMS RMPX°(4) MDN(5) MDX(6) DRVS(7) MIID(8) TQ(9) Rg(10) kg FFX4 ED16/.63-2-MMT10-04 16.00 8.60 2 0.80 3.7 T10 20.00 31.75 15.20 4.3 24.60 31.00 13.0 FFX4 XNMU 040310T 0.9 1.80 0.02 FFX4 ED20/.78-3-MMT12-04 20.00 12.60 3 0.80 3.7 T12 25.00 38.30 18.80 2.7 32.60 39.00 15.0 FFX4 XNMU 040310T 0.9 1.80 0.04 FFX4 ED25/.98-4-MMT15-04 25.00 17.60 4 0.80 3.7 T15 30.00 47.00 24.00 1.8 42.60 49.00 19.0 FFX4 XNMU 040310T 0.9 1.80 0.14 • To generate a straight surface without cusps,the width of cut must not exceed DC (1) Cutting diameter maximum (2) Number of inserts (3) Maximum plunging width (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) Torque key size (8) Master insert identification (9) Recommended tightening torque (N*m) for insert screw (10) Radius for programming For inserts, see pages: FFX4 XNMU-04 (523) For holders, see pages: MM CAB-T-T (91) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86) Spare Parts Designation FFX4 ED-MM SR M2.5X6-T7-60 T-7/51 DHUB DCONMS FFX4 FD-04 Face Mills Carrying Rd° "Bone Shaped” Inserts OAL with 4 Cutting Edges for Fast Feed Milling 17˚ DCDCX APMX Designation DCX(1) DC CICT(2) APMX AE(3) OAL DCONMS DHUB RMPX°(4) MDN(5) MDX(6) Arbor Rg(7) MIID(8) kg FFX4 FD032-5-16-04 32.00 24.60 5 0.80 3.7 40.00 16.00 38.00 1.2 56.60 63.00 A 1.80 FFX4 XNMU 040310T 0.12 FFX4 FD040-6-16-04 40.00 32.60 6 0.80 3.7 40.00 16.00 38.00 0.9 72.60 79.00 A 1.80 FFX4 XNMU 040310T 0.23 FFX4 FD042-6-16-04 42.00 34.60 6 0.80 3.7 40.00 16.00 38.00 0.8 76.60 83.00 A 1.80 FFX4 XNMU 040310T 0.50 FFX4 FD050-7-22-04 50.00 42.60 7 0.80 3.7 40.00 22.00 48.00 0.7 92.60 99.00 A 1.80 FFX4 XNMU 040310T 0.39 FFX4 FD052-7-22-04 52.00 44.60 7 0.80 3.7 40.00 22.00 48.00 0.7 96.60 103.00 A 1.80 FFX4 XNMU 040310T 0.44 • To generate a straight surface without cusps, the width of cut must not exceed DC (1) Cutting diameter maximum (2) Number of inserts (3) Maximum plunging width (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) Radius for programming (8) Master insert identification For inserts, see pages: FFX4 XNMU-04 (523) Spare Parts Designation FFX4 FD032-5-16-04 SR M2.5X6-T7-60 T-7/51 SR M8X25-D11.5 FFX4 FD040-6-16-04 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912 FFX4 FD042-6-16-04 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912 FFX4 FD050-7-22-04 SR M2.5X6-T7-60 T-7/51 SR M10X25 DIN912 FFX4 FD052-7-22-04 SR M2.5X6-T7-60 T-7/51 SR M10X25 DIN912 295
