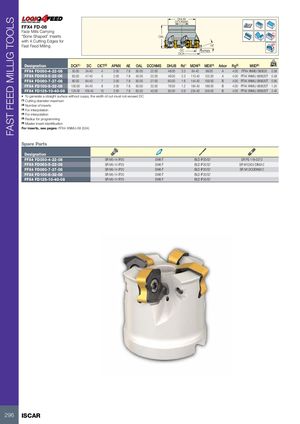

FAST FEED MILLIG TOOLS DHUB DCONMS FFX4 FD-08 Face Mills Carrying Rd° "Bone Shaped” Inserts OAL with 4 Cutting Edges for Fast Feed Milling 18˚ DC APMX DCX Designation DCX(1) DC CICT(2) APMX AE OAL DCONMS DHUB Rd° MDN(3) MDX(4) Arbor Rg(5) MIID(6) kg FFX4 FD050-4-22-08 50.00 34.40 4 2.00 7.8 50.00 22.00 48.00 3.3 84.40 99.00 A 4.00 FFX4 XNMU 080620 0.58 FFX4 FD063-5-22-08 63.00 47.40 5 2.00 7.8 45.00 22.00 48.00 2.3 110.40 125.00 A 4.00 FFX4 XNMU 080620T 0.48 FFX4 FD080-7-27-08 80.00 64.40 7 2.00 7.8 50.00 27.00 60.00 1.6 144.40 159.00 B 4.00 FFX4 XNMU 080620T 0.95 FFX4 FD100-8-32-08 100.00 84.40 8 2.00 7.8 50.00 32.00 78.00 1.2 184.40 199.00 B 4.00 FFX4 XNMU 080620T 1.24 FFX4 FD125-10-40-08 125.00 109.40 10 2.00 7.8 63.00 40.00 92.00 0.9 234.40 249.00 B 4.00 FFX4 XNMU 080620T 2.40 • To generate a straight surface without cusps, the width of cut must not exceed DC (1) Cutting diameter maximum (2) Number of inserts (3) For interpolation (4) For interpolation (5) Radius for programming (6) Master insert identification For inserts, see pages: FFX4 XNMU-08 (524) Spare Parts Designation FFX4 FD050-4-22-08 SR M5-14 IP20 SW6-T BLD IP20/S7 SR PS 118-0273 FFX4 FD063-5-22-08 SR M5-14 IP20 SW6-T BLD IP20/S7 SR M10X25 DIN912 FFX4 FD080-7-27-08 SR M5-14 IP20 SW6-T BLD IP20/S7 SR M12X30DIN912 FFX4 FD100-8-32-08 SR M5-14 IP20 SW6-T BLD IP20/S7 FFX4 FD125-10-40-08 SR M5-14 IP20 SW6-T BLD IP20/S7 296 ISCAR
