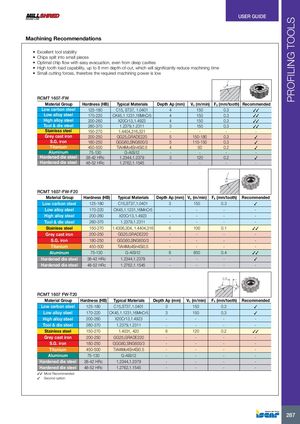

PROFILING TOOLS USER GUIDE Machining Recommendations • Excellent tool stability • Chips split into small pieces • Optimal chip flow with easy evacuation, even from deep cavities • High tooth load capability, up to 8 mm depth-of-cut, which will significantly reduce machining time • Small cutting forces, therefore the required machining power is low 12˚ RCMT 1607-FW Material Group Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/min) Fz (mm/tooth) Recommended Low carbon steel 125-180 C15, ST37, 1.0401 4 150 0.3 33 Low alloy steel 170-220 CK45,1.1231,16MnCr5 4 150 0.3 33 High alloy steel 200-260 X20Cr13,1.4923 4 150 0.3 33 Tool & die steel 280-370 1.2379,1.2311 3 150 0.3 33 Stainless steel 150-270 1.4404,316,321 - - - - Grey cast iron 200-250 GG25,GRADE220 5 150-180 0.3 3 S.G. iron 180-250 GGG60,SNG600/3 5 110-150 0.3 3 Titanium 450-500 TiAI4Mo4Sn4Si0.5 4 50 0.2 3 Aluminum 75-130 G-AISi12 - - - - Hardened die steel 38-42 HRc 1.2344,1.2379 3 120 0.2 3 Hardened die steel 48-52 HRc 1.2762,1.1545 - - - - 20˚ RCMT 1607-FW-F20 Material Group Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/min) Fz (mm/tooth) Recommended Low carbon steel 125-180 C15,ST37,1.0401 3 150 0.3 3 Low alloy steel 170-220 CK45,1.1231,16MnCr5 - - - - High alloy steel 200-260 X20Cr13,1.4923 - - - - Tool & die steel 280-370 1.2379,1.2311 - - - - Stainless steel 150-270 1.4306,304, 1.4404,316 6 100 0.1 33 Grey cast iron 200-250 GG25,GRADE220 - - - - S.G. iron 180-250 GGG60,SNG600/3 - - - - Titanium 450-500 TiAI4Mo4Sn4Si0.5 - - - - Aluminum 75-130 G-AISi12 6 850 0.4 33 Hardened die steel 38-42 HRc 1.2344,1.2379 - - - 3 Hardened die steel 48-52 HRc 1.2762,1.1545 - - - - 0.15 20˚ 20˚ RCMT 1607 FW-T20 Material Group Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/min) Fz (mm/tooth) Recommended Low carbon steel 125-180 C15,ST37,1.0401 3 150 0.3 3 Low alloy steel 170-220 CK45,1.1231,16MnCr5 3 150 0.3 3 High alloy steel 200-260 X20Cr13,1.4923 - - - - Tool & die steel 280-370 1.2379,1.2311 - - - - Stainless steel 150-270 1.4031, 420 6 120 0.2 33 Grey cast iron 200-250 GG25,GRADE220 - - - - S.G. iron 180-250 GGG60,SNG600/3 - - - - Titanium 450-500 TiAI4Mo4Sn4Si0.5 - - - - Aluminum 75-130 G-AISi12 - - - - Hardened die steel 38-42 HRc 1.2344,1.2379 - - - - Hardened die steel 48-52 HRc 1.2762,1.1545 - - - - 33 Most Recommended 3 Second option 287
