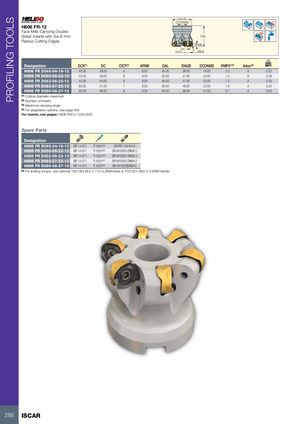

PROFILING TOOLS DHUB DCONMS Rd° H606 FR-12 Face Mills Carrying Double- Sided Inserts with Six 6 mm OAL Radius Cutting Edges APMX DC DCX R6.0 Designation DCX(1) DC CICT(2) APMX OAL DHUB DCONMS RMPX°(3) Arbor(4) kg H606 FR D040-04-16-12 40.00 28.00 4 6.00 45.00 38.00 16.00 2.0 A 0.22 H606 FR D050-06-22-12 50.00 38.00 6 6.00 50.00 47.00 22.00 1.3 A 0.38 H606 FR D052-06-22-12 52.00 40.00 6 6.00 50.00 47.00 22.00 1.3 A 0.39 H606 FR D063-07-22-12 63.00 51.00 7 6.00 50.00 48.00 22.00 1.0 A 0.52 H606 FR D080-08-27-12 80.00 68.00 8 6.00 50.00 58.00 27.00 0.7 A 0.83 (1) Cutting diameter maximum (2) Number of inserts (3) Maximum ramping angle (4) For adaptation options, see page 548 For inserts, see pages: H606 RXCU 1206 (532) Spare Parts Designation H606 FR D040-04-16-12 SR 14-571 T-10/51(a) SR PS 118-0416 H606 FR D050-06-22-12 SR 14-571 T-10/51(a) SR M10X25 DIN912 H606 FR D052-06-22-12 SR 14-571 T-10/51(a) SR M10X25 DIN912 H606 FR D063-07-22-12 SR 14-571 T-10/51(a) SR M10X25 DIN912 H606 FR D080-08-27-12 SR 14-571 T-10/51(a) SR M12X30DIN912 (a) For limiting torque, use optional 7007383 BLD 4 T10-3.2NM blade & 7007321 HSD 4-3.2NM handle 286 ISCAR
