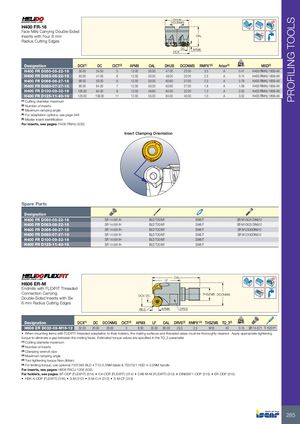

PROFILING TOOLS DHUB DCONMS H400 FR-16 Face Mills Carrying Double-Sided Rd° Inserts with Four 8 mm OAL Radius Cutting Edges DC APMX DCX Designation DCX(1) DC CICT(2) APMX OAL DHUB DCONMS RMPX°(3) Arbor(4) kg MIID(5) H400 FR D050-05-22-16 50.00 34.00 5 12.00 50.00 47.00 22.00 3.3 A 0.41 H400 RNHU 1606-AX H400 FR D063-06-22-16 63.00 47.00 6 12.00 50.00 48.00 22.00 2.5 A 0.74 H400 RNHU 1606-AX H400 FR D066-06-27-16 66.00 50.00 6 12.00 50.00 60.60 27.00 2.3 A 0.79 H400 RNHU 1606-AX H400 FR D080-07-27-16 80.00 64.00 7 12.00 50.00 63.60 27.00 1.8 A 1.09 H400 RNHU 1606-AX H400 FR D100-09-32-16 100.00 84.00 9 12.00 49.60 84.00 32.00 1.3 A 0.00 H400 RNHU 1606-AX H400 FR D125-11-40-16 125.00 109.00 11 12.00 55.00 84.00 40.00 1.0 A 3.02 H400 RNHU 1606-AX (1) Cutting diameter maximum (2) Number of inserts (3) Maximum ramping angle (4) For adaptation options, see page 548 (5) Master insert identification For inserts, see pages: H400 RNHU (532) Insert Clamping Orientation Spare Parts Designation H400 FR D050-05-22-16 SR 14-591/H BLD T20/M7 SW6-T SR M10X25 DIN912 H400 FR D063-06-22-16 SR 14-591/H BLD T20/M7 SW6-T SR M10X25 DIN912 H400 FR D066-06-27-16 SR 14-591/H BLD T20/M7 SW6-T SR M12X30DIN912 H400 FR D080-07-27-16 SR 14-591/H BLD T20/M7 SW6-T SR M12X30DIN912 H400 FR D100-09-32-16 SR 14-591/H BLD T20/M7 SW6-T H400 FR D125-11-40-16 SR 14-591/H BLD T20/M7 SW6-T OAL LF H606 ER-M Endmills with FLEXFIT Threaded Rd° Connection CarryingDouble-Sided Inserts with Six DCX DC THSZMS DCONMS 6 mm Radius Cutting Edges R6.0 APMX DRVS Designation DCX(1) DC DCONMS CICT(2) APMX LF OAL DRVS(3) RMPX°(4) THSZMS TQ_3(5) kg H606 ER D032-03-M16-12 32.00 20.00 29.00 3 6.00 35.00 60.00 25.0 2.5 M16 40 0.15 SR 14-571 T-10/51(a) • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Cutting diameter maximum (2) Number of inserts (3) Clamping wrench size (4) Maximum ramping angle (5) Tool tightening torque Nxm (lbfxin) (a) For limiting torque, use optional 7007383 BLD 4 T10-3.2NM blade & 7007321 HSD 4-3.2NM handle For inserts, see pages: H606 RXCU 1206 (532) For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315) • HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313) 285
