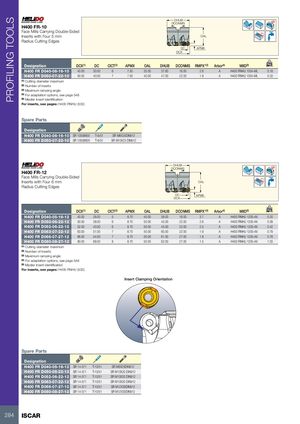

PROFILING TOOLS DHUB DCONMS H400 FR-10 Face Mills Carrying Double-Sided Rd° Inserts with Four 5 mm OAL Radius Cutting Edges DC APMX DCX Designation DCX(1) DC CICT(2) APMX OAL DHUB DCONMS RMPX°(3) Arbor(4) MIID(5) kg H400 FR D040-06-16-10 40.00 30.00 6 7.50 35.00 37.60 16.00 2.6 A H400 RNHU 1004-ML 0.18 H400 FR D050-07-22-10 50.00 40.00 7 7.50 40.00 47.00 22.00 1.9 A H400 RNHU 1004-ML 0.33 (1) Cutting diameter maximum (2) Number of inserts (3) Maximum ramping angle (4) For adaptation options, see page 548 (5) Master insert identification For inserts, see pages: H400 RNHU (532) Spare Parts Designation H400 FR D040-06-16-10 SR 10508600 T-9/51 SR M8X25DIN912 H400 FR D050-07-22-10 SR 10508600 T-9/51 SR M10X25 DIN912 DHUB DCONMS H400 FR-12 Face Mills Carrying Double-Sided Rd° Inserts with Four 6 mm OAL Radius Cutting Edges DC APMX DCX Designation DCX(1) DC CICT(2) APMX OAL DHUB DCONMS RMPX°(3) Arbor(4) MIID(5) kg H400 FR D040-05-16-12 40.00 28.00 5 8.70 40.00 38.00 16.00 3.7 A H400 RNHU 1205-AX 0.20 H400 FR D050-06-22-12 50.00 38.00 6 8.70 50.00 45.00 22.00 2.6 A H400 RNHU 1205-AX 0.39 H400 FR D052-06-22-12 52.00 40.00 6 8.70 50.00 45.00 22.00 2.5 A H400 RNHU 1205-AX 0.42 H400 FR D063-07-22-12 63.00 51.00 7 8.70 50.00 60.00 22.00 1.9 A H400 RNHU 1205-AX 0.79 H400 FR D066-07-27-12 66.00 54.00 7 8.70 50.00 61.00 27.00 1.8 A H400 RNHU 1205-AX 0.78 H400 FR D080-08-27-12 80.00 68.00 8 8.70 50.00 62.00 27.00 1.5 A H400 RNHU 1205-AX 1.03 (1) Cutting diameter maximum (2) Number of inserts (3) Maximum ramping angle (4) For adaptation options, see page 548 (5) Master insert identification For inserts, see pages: H400 RNHU (532) Insert Clamping Orientation Spare Parts Designation H400 FR D040-05-16-12 SR 14-571 T-10/51 SR M8X25DIN912 H400 FR D050-06-22-12 SR 14-571 T-10/51 SR M10X25 DIN912 H400 FR D052-06-22-12 SR 14-571 T-10/51 SR M10X25 DIN912 H400 FR D063-07-22-12 SR 14-571 T-10/51 SR M10X25 DIN912 H400 FR D066-07-27-12 SR 14-571 T-10/51 SR M12X30DIN912 H400 FR D080-08-27-12 SR 14-571 T-10/51 SR M12X30DIN912 284 ISCAR
