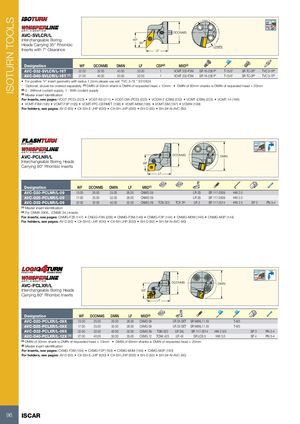

| 95º 48° MAX | ||||||||||
| AVC-SVLCR/L Interchangeable Boring Heads Carrying 35° Rhombic Inserts with 7° Clearance | WF 95° | LF | DCONMS | DMIN | ||||||
| Designation | WF | DCONMS | DMIN | LF | CSP(2) | MIID(3) | ||||
| AVC-D32-SVLCR/L-16T | 22.00 | 32.00 | 40.00 | 32.00 | 1 | VCMT 332-F3M | SR 16-236 P | T-15/5 | SR TC-3P | TVC 3-1P |
| AVC-D40-SVLCR/L-16T(1) | 27.00 | 40.00 | 50.00 | 32.00 | 1 | VCMT 332-F3M | SR 16-236 P | T-15/5 | SR TC-3P | TVC 3-1P |
- For positive "V" insert geometry with radius 1.2mm please use set: TVC 3-76 * 3312824
* Optional, should be ordered separately (1) DMIN of 50mm shank is DMIN of requested head + 10mm DMIN of 60mm shanks is DMIN of requested head + 20mm (2) 0 - Without coolant supply, 1 - With coolant supply (3) Master insert identification
For inserts, see pages: VCGT (PCD) (223) VCGT-AS (211) VCGT-DW (PCD) (223) VCGW-2 (CBN) (232) VCMT (CBN) (222) VCMT-14 (198)
- VCMT-F3M (195)
- VCMT-F3P (195)
- VCMT-FPC-CERMET (196)
- VCMT-M3M (196)
- VCMT-SM (197)
- VCMW (198)
For holders, see pages: AV-D (93) C#-SH-E-JHP (630) C#-SH-JHP (630) SH-D (92) SH-S#-N-AVC (90)
| 95º | ||||||||||||
| AVC-PCLNR/L Interchangeable Boring Heads Carrying 80° Rhombic Inserts | WF | LF | DCONMS | DMIN | ||||||||
| Designation | WF | DCONMS | DMIN | LF | MIID(1) | |||||||
| AVC-D20-PCLNR/L-09 | 13.00 | 20.00 | 25.00 | 26.00 | CNMG 09 | LR 3S | SR 117-2009 | HW 2.0 | ||||
| AVC-D25-PCLNR/L-09 | 17.00 | 25.00 | 32.00 | 28.00 | CNMG 09 | LR 3S | SR 117-2009 | HW 2.0 | ||||
| AVC-D32-PCLNR/L-09 | 22.00 | 32.00 | 40.00 | 32.00 | CNMG 09 | TCN 323 | TCX 3(a) | LR 3 | SR 117-2014 | HW 2.5 | SP 3 | PN 3-4 |
(1) Master insert identification (a) For CNMX 0906.. (CNMX 34.) inserts
For inserts, see pages: CNMG-F3S (147) CNGG-F3N (209) CNMG-F3M (146) CNMG-F3P (144) CNMG-M3M (146) CNMG-M3P (144)
For holders, see pages: AV-D (93) C#-SH-E-JHP (630) C#-SH-JHP (630) SH-D (92) SH-S#-N-AVC (90)
95º DCONMS DMIN
AVC-PCLXR/L
Interchangeable Boring Heads WF
Carrying 80° Rhombic Inserts
LF
| Designation | WF | DCONMS | DMIN | LF | MIID(2) | |||||||
| AVC-D20-PCLXR/L-09X | 13.00 | 20.00 | 25.00 | 26.00 | CXMG 09 | LR 3X SET SR M6XL11.5V | T-8/5 | |||||
| AVC-D25-PCLXR/L-09X | 17.00 | 25.00 | 32.00 | 28.00 | CXMG 09 | LR 3X SET SR M6XL11.5V | T-8/5 | |||||
| AVC-D32-PCLXR/L-09X | 22.00 | 32.00 | 40.00 | 32.00 | CXMG 09 | TSN 323 | LR 3XL | SR 117-2014 | HW 2.5/5 | SP 3 | PN 3-4 | |
| AVC-D40-PCLXR/L-12X (1) | 27.00 | 40.00 | 50.00 | 35.00 | CXMG 12 | TCNX 423 | LR 4X | SR LCS 5 | HW 3.0 | SP 4 | PN 3-4 |
(1) DMIN of 50mm shank is DMIN of requested head + 10mm DMIN of 60mm shanks is DMIN of requested head + 20mm (2) Master insert identification For inserts, see pages: CXMG-F3M (184) CXMG-F3P (183) CXMG-M3M (184) CXMG-M3P (183) For holders, see pages: AV-D (93) C#-SH-E-JHP (630) C#-SH-JHP (630) SH-D (92) SH-S#-N-AVC (90)
