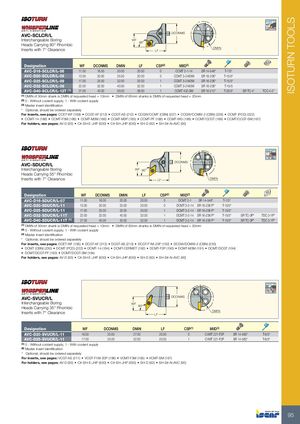

| AVC-SCLCR/L Interchangeable Boring Heads Carrying 80° Rhombic Inserts with 7° Clearance | WF 95° | LF | DCONMS | DMIN | 95º | |||||
| Designation | WF | DCONMS | DMIN | LF | CSP(2) | MIID(3) | ||||
| AVC-D16-SCLCR/L-06 | 11.00 | 16.00 | 20.00 | 20.00 | 0 | CCMT 2-1-14 | SR 14-548 | T-7/5 | ||
| AVC-D20-SCLCR/L-09 | 13.00 | 20.00 | 25.00 | 20.00 | 0 | CCMT 3-2-M3M | SR 16-236 | T-15/5 | ||
| AVC-D25-SCLCR/L-09 | 17.00 | 25.00 | 32.00 | 20.00 | 1 | CCMT 3-2-M3M | SR 16-236 | T-15/5 | ||
| AVC-D32-SCLCR/L-09 | 22.00 | 32.00 | 40.00 | 32.00 | 1 | CCMT 3-2-M3M | SR 16-236 | T-15/5 | ||
| AVC-D40-SCLCR/L-12T(1) | 27.00 | 40.00 | 50.00 | 38.00 | 1 | CCMT 432-SM | SR 16-212 | T-20/5 | SR TC-4 | TCC 4-2 |
(1) DMIN of 50mm shank is DMIN of requested head + 10mm DMIN of 60mm shanks is DMIN of requested head + 20mm (2) 0 - Without coolant supply, 1 - With coolant supply (3) Master insert identification
- Optional, should be ordered separately
For inserts, see pages: CCET-WF (189) CCGT-AF (212) CCGT-AS (212) CCGW/CCMT (CBN) (227) CCGW/CCMW-2 (CBN) (228) CCMT (PCD) (222)
- CCMT-14 (188)
- CCMT-F3M (186)
- CCMT-M3M (186)
- CCMT-M3P (185)
- CCMT-PF (188)
- CCMT-WG (189)
- CCMT/CCGT (188)
- CCMT/CCGT-SM (187)
For holders, see pages: AV-D (93) C#-SH-E-JHP (630) C#-SH-JHP (630) SH-D (92) SH-S#-N-AVC (90)
AVC-SDUCR/L
Interchangeable Boring WF 95°
Heads Carrying 55° Rhombic
Inserts with 7° Clearance
LF
DCONMS
DMIN
93º-95º
50º MAX
| Designation | WF | DCONMS | DMIN | LF | CSP(2) | MIID(3) | ||||
| AVC-D16-SDUCR/L-07 | 11.00 | 16.00 | 20.00 | 20.00 | 0 | DCMT 2-1 | SR 14-548 | T-7/5 | ||
| AVC-D20-SDUCR/L-11 | 13.00 | 20.00 | 25.00 | 20.00 | 0 | DCMT 3-2-14 | SR 16-236 P | T-15/5 | ||
| AVC-D25-SDUCR/L-11 | 17.00 | 25.00 | 32.00 | 20.00 | 1 | DCMT 3-2-14 | SR 16-236 P | T-15/5 | ||
| AVC-D32-SDUCR/L-11T | 22.00 | 32.00 | 40.00 | 32.00 | 1 | DCMT 3-2-14 | SR 16-236 P | T-15/5 | SR TC-3P | TDC 3-1P |
| AVC-D40-SDUCR/L-11T(1) | 27.00 | 40.00 | 50.00 | 32.00 | 1 | DCMT 3-2-14 | SR 16-236 P | T-15/5 | SR TC-3P | TDC 3-1P |
(1) DMIN of 50mm shank is DMIN of requested head + 10mm DMIN of 60mm shanks is DMIN of requested head + 20mm (2) 0 - Without coolant supply, 1 - With coolant supply (3) Master insert identification
- Optional, should be ordered separately
For inserts, see pages: DCET-WF (195) DCGT-AF (213) DCGT-AS (213) DCGT-F1M-20P (192) DCGW/DCMW-2 (CBN) (230)
- DCMT (CBN) (230)
- DCMT (PCD) (222)
- DCMT-14 (194)
- DCMT-CERMET (192)
- DCMT-F3P (190)
- DCMT-M3M (191)
- DCMT/DCGT (194)
- DCMT/DCGT-PF (193)
- DCMT/DCGT-SM (194)
For holders, see pages: AV-D (93) C#-SH-E-JHP (630) C#-SH-JHP (630) SH-D (92) SH-S#-N-AVC (90)
| AVC-SVUCR/L Interchangeable Boring Heads Carrying 35° Rhombic Inserts with 7° Clearance | DMIN WF 93° LF DCONMS | 93º 30° MAX | |||
| Designation | WF | DCONMS | DMIN LF CSP(1) MIID(2) | ||
| AVC-D20-SVUCR/L-11 | 16.00 | 20.00 | 27.00 20.00 0 CVMT 221-F3P | SR 14-560 | T-8/5 |
| AVC-D25-SVUCR/L-11 | 17.00 | 25.00 | 32.00 25.00 1 CVMT 221-F3P | SR 14-560 | T-8/5 |
(1) 0 - Without coolant supply, 1 - With coolant supply (2) Master insert identification
- Optional, should be ordered separately
For inserts, see pages: VCGT-AS (211) VCGT-F1M-20P (196) VCMT-F3M (195) VCMT-SM (197)
For holders, see pages: AV-D (93) C#-SH-E-JHP (630) C#-SH-JHP (630) SH-D (92) SH-S#-N-AVC (90)
