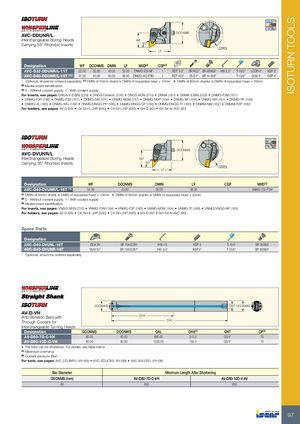

| 93º-95º 50º MAX | ||||||||||||
| AVC-DDUNR/L Interchangeable Boring Heads Carrying 55° Rhombic Inserts | WF 93° | LF | DCONM | DMIN | ||||||||
| Designation | WF | DCONMS | DMIN | LF | MIID(2 | ) CSP(3) | ||||||
| AVC-D32-DDUNR/L-11T | 22.00 | 32.00 | 40.00 | 32.00 | DNMG 332 | -NF 1 | RDT 3-2 | SR RC3 SR 40085I | HW 2.5 | T-15/5 | LCGR-3 | KSP 3 |
| AVC-D40-DDUNR/L-15T(1) | 27.00 | 40.00 | 50.00 | 38.00 | DNMG 442- | F3M 1 | RDT 433 | DLS 4 SR 14-506 | T-15/5 | DLM 4 | DSP 4 |
- Optional, should be ordered separately (1) DMIN of 50mm shank is DMIN of requested head + 10mm DMIN of 60mm shanks is DMIN of requested head + 20mm
(2) Master insert identification (3) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: DNGA-4 (CBN) (229) DNGA-Ceramic (218) DNGG-M3N (210) DNMA (161) DNMA (CBN) (228) DNMG-F3M (157)
- DNMG-F3P (156)
- DNMG-F3S (157)
- DNMG-GN (161)
- DNMG-M3M (157)
- DNMG-M3P (156)
- DNMG-NF (158)
- DNMG-NR (161)
- DNMG-PF (159)
- DNMG-VL (160)
- DNMG-WG (159)
- DNMG/DNGG-PP (160)
- DNMG/DNGG-SF (159)
- DNMG/DNGG-TF (160)
- DNMM-NM (162)
- DNMM-R3P (162)
For holders, see pages: AV-D (93) C#-SH-E-JHP (630) C#-SH-JHP (630) SH-D (92) SH-S#-N-AVC (90)
DCONMS
AVC-DVUNR/L
Interchangeable Boring Heads WF Carrying 35° Rhombic Inserts 93° DMIN LF
| Designation | WF | DCONMS | DMIN | LF | CSP |
| AVC-D40-DVUNR/L-16T (1) | 34.00 | 40.00 | 56.00 | 38.00 | 1 |
(1) DMIN of 50mm shank is DMIN of requested head + 10mm DMIN of 60mm shanks is DMIN of requested head + 20mm (2) 0 - Without coolant supply, 1 - With coolant supply (3) Master insert identification For inserts, see pages: VNGG-M3N (210) VNMG-F3M (164) VNMG-F3P (163) VNMG-M3M (164) VNMG-TF (166) VNMG/VNGG-NF (165)
For holders, see pages: AV-D (93) C#-SH-E-JHP (630) C#-SH-JHP (630) SH-D (92) SH-S#-N-AVC (90)
Spare Parts
30° MAX 93º
MIID(3)
VNMG 332-F3M
| Designation | ||||||
| AVC-D40-DVUNL-16T | DLM 3V | SR 10402267 | HW 4.0 | KSP 5 | T-15/5 | SR 35080I |
| AVC-D40-DVUNR-16T | DLM 3V | SR 10402267 | HW 4.0 | KSP 5 | T-15/5 | SR 35080I |
- Optional, should be ordered separately
DCONWS CNT DCONMS
AV-D-VH
Anti-Vibration Bars with OHX Through Coolant for OAL
Interchangeable Turning Heads
| Designation | DCONMS | DCONWS | OAL | OHX (1) | CNT | CP (2) |
| AV-D80-7D-C-VH | 80.00 | 80.00 | 880.00 | 515.0 | G3/4" | 70 |
| AV-D80-10D-C-VH | 80.00 | 80.00 | 1200.00 | 755.0 | G3/4" | 70 |
- The bars can be shortened. For details, see table below
(1) Maximum overhang (2) Coolant pressure (Bar)
For tools, see pages: AVC-DDUNR/L-VH (98) AVC-SDUCR/L-VH (98) AVC-SVLCR/L-VH (98)
| Bar Diameter | Minimum Length | After Shortening |
| DCONMS (mm) 80 | AV-D80-7D-C-VH 630 | AV-D80-10D-V-AV 630 |
