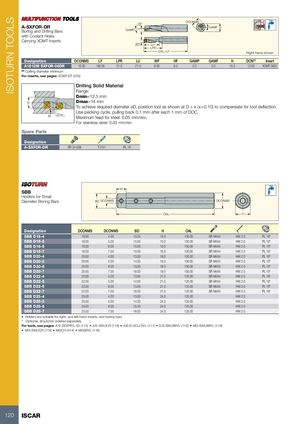

A-SXFOR-DR HF GAMF H Boring and Drilling Bars GAMP
with Coolant Holes
Carrying XOMT Inserts
WF LU LPR OAL=LF Right-hand shown
| Designation | DCONMS | LF | LPR | LU | WF | HF | GAMP | GAMF | H | DCN(1) | Insert |
| A1612M SXFOR-06DR | 16.00 | 180.00 | 31.0 | 21.0 | 6.00 | 8.5 | 0.0 | 0.0 | 15.0 | 12.50 | XOMT 0602 |
(1) Cutting diameter minimum For inserts, see pages: XOMT-DT (200) Drilling Solid Material Range:
Dmin=12.5 mm
Dmax=14 mm
D To achieve required diameter øD, position tool as shown at D + x (x=0.10) to compensate for tool deflection. Use pecking cycle, pulling back 0.1 mm after each 1 mm of DOC. x D+x Maximum feed for steel: 0.05 mm/rev;
For stainless steel: 0.03 mm/rev
Spare Parts
Designation
A-SXFOR-DR SR 34-508 T-7/51 PL 16
| SBB | 10 | |||||||
| Holders for Small | ||||||||
| Diameter Boring Bars | DCONWS BD | DCONM | S | |||||
| OAL | H | |||||||
| Designation | DCONMS | DCONW | S BD | H | OAL | |||
| SBB D16-4 | 16.00 | 4.00 | 15.00 | 15.0 | 100.00 | SR M4X4 | HW 2.0 | PL 16 |
| SBB D16-5 | 16.00 | 5.00 | 15.00 | 15.0 | 100.00 | SR M4X4 | HW 2.0 | PL 16 |
| SBB D16-6 | 16.00 | 6.00 | 15.00 | 15.0 | 100.00 | SR M4X4 | HW 2.0 | PL 16 |
| SBB D16-7 | 16.00 | 7.00 | 15.00 | 15.0 | 100.00 | SR M4X4 | HW 2.0 | PL 16 |
| SBB D20-4 | 20.00 | 4.00 | 13.00 | 19.0 | 100.00 | SR M4X4 | HW 2.0 | PL 16 |
| SBB D20-5 | 20.00 | 5.00 | 14.00 | 19.0 | 100.00 | SR M4X4 | HW 2.0 | PL 16 |
| SBB D20-6 | 20.00 | 6.00 | 15.00 | 19.0 | 100.00 | SR M4X4 | HW 2.0 | PL 16 |
| SBB D20-7 | 20.00 | 7.00 | 16.00 | 19.0 | 100.00 | SR M4X4 | HW 2.0 | PL 16 |
| SBB D22-4 | 22.00 | 4.00 | 13.00 | 21.0 | 125.00 | SR M4X4 | HW 2.0 | PL 16 |
| SBB D22-5 | 22.00 | 5.00 | 14.00 | 21.0 | 125.00 | SR M4X4 | HW 2.0 | PL 16 |
| SBB D22-6 | 22.00 | 6.00 | 15.00 | 21.0 | 125.00 | SR M4X4 | HW 2.0 | PL 16 |
| SBB D22-7 | 22.00 | 7.00 | 16.00 | 21.0 | 125.00 | SR M4X4 | HW 2.0 | PL 16 |
| SBB D25-4 | 25.00 | 4.00 | 13.00 | 24.0 | 125.00 | HW 2.0 | ||
| SBB D25-5 | 25.00 | 5.00 | 14.00 | 24.0 | 125.00 | HW 2.0 | ||
| SBB D25-6 | 25.00 | 6.00 | 15.00 | 24.0 | 125.00 | HW 2.0 | ||
| SBB D25-7 | 25.00 | 7.00 | 16.00 | 24.0 | 125.00 | HW 2.0 |
- Holders are suitable for right- and left-hand inserts, and boring bars
* Optional, should be ordered separately
For tools, see pages: A/E-SEXPR/L-03 (112) A/E-SWUCR (119) A/E/S-SCLCR/L (111) E/S-SWUBR/L (118) MG-SWUBR/L (119)
- MG-SWUCR (119)
- MGCH (414)
- MGSIR/L (118)
